GE Mark VIe CPCI 650MHz CONTROLLER IS215UCCAM03A
GE Mark VIe CPCI 650MHz CONTROLLER IS215UCCAM03A
Brand:
General Electric PLCItem NO.:
IS215UCCAM03AOrder(MOQ):
1 PCPayment:
T/TProduct Origin:
USAShipping Port:
XiamenLead Time：
In stockWarranty:

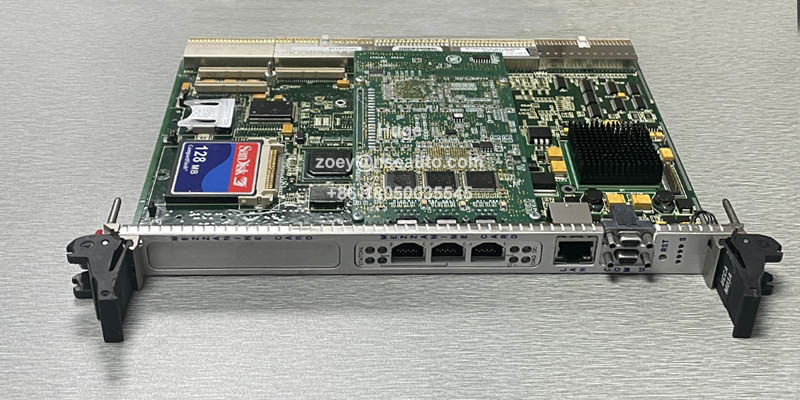

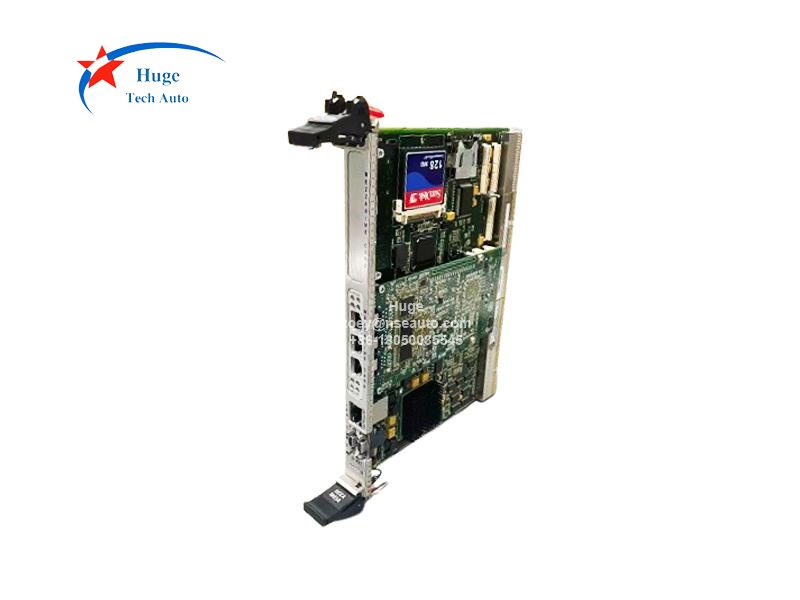

1 YearIS215UCCAM03A is a assembled module part number, it is designed as GE Mark VIe CompactPCI controller. It is 6U high, single-board computers that runs the application code. The controller mounts in a CPCI enclosure, and communicates with the I/O packs through onboard I/O network interfaces. The controller operating system (OS) is QNX® Neutrino®, a real-time, multitasking OS designed for high-speed, high-reliability industrial applications.

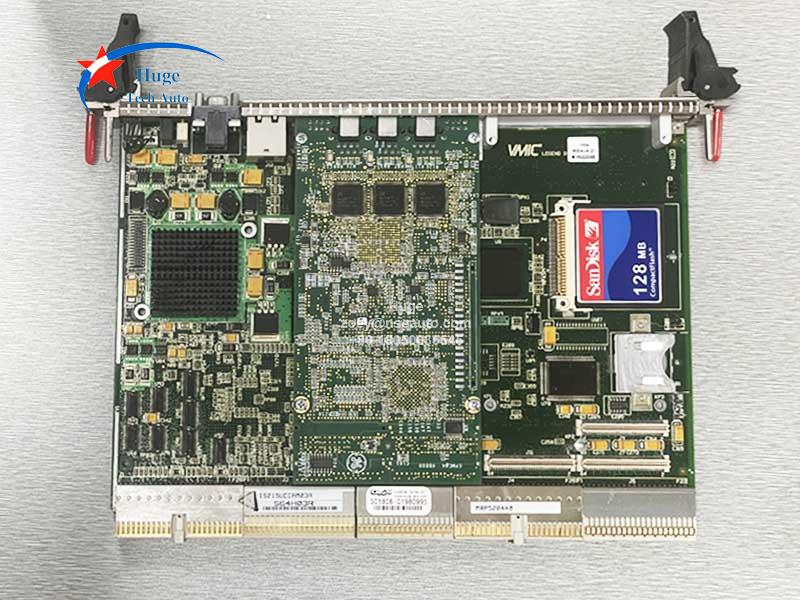

IS215UCCAM03A includes the IS215UCCAH3 combined with 128 MB of flash memory, 128 MB of DRAM, and the IS200EPMC. IS215UCCAH3 is a single-slot board using a 650 MHz Intel® Celeron™ processor. A 10BaseT/100BaseTX (RJ-45) Ethernet port provides connectivity to the Unit Data Highway (UDH). There are two PCI Mezzanine Card (PMC) sites and a watchdog timer. The processor board is the compute engine of the Mark VIe controller. IS200EPMC is the IS215UCCAH3 daughter card.
|
Item |
Specification |
|
Microprocessor |
Intel Ultra Low Voltage Celeron 650 MHz (8.3 Watts Max.) |
|
Memory |
128 MB DDR SDRAM through one SODIMM 128 MB Compact Flash Module 256 KB L2 cache Flash-backed SRAM - 8K allocated as NVRAM for controller functions |
|
Operating System |
QNX Neutrino |
|
Programming |
Control block language with analog and discrete blocks; Boolean logic represented in relay ladder diagram format. Supported data types include: Boolean 16-bit signed integer 16-bit unsigned integer 32-bit signed integer 32-bit unsigned integer 32-bit floating point 64-bit long floating point |
|
Primary Ethernet interface (one port) |
TCP/IP protocol used for communication between controller and toolbox TCP/IP protocol used for alarm communication to HMIs EGD protocol for application variable communication with CIMPLICITY® HMI and Series 90-70 PLCs Ethernet Modbus® protocol supported for communication between controller and third-party DCS |
|
EPMC Ethernet Interface (three ports) |

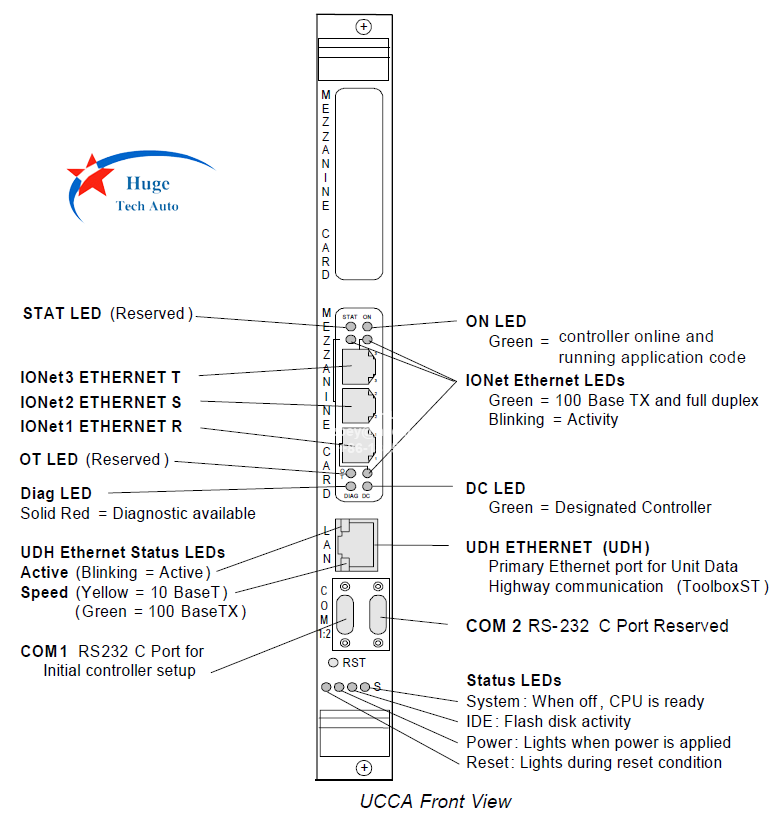

Twisted pair 10BaseT/100BaseTX, RJ-45 connectors: TCP/IP protocols used to communicate between controllers and I/O packs |
|
COM ports |
Two micro-miniature 9-pin D connectors: COM1 Reserved for diagnostics, 9600 baud, 8 data bits, no parity, 1 stop bit COM2 Not used For cabling use either: a standard 4 pair UTP cable (e.g. Ethernet cable) joined with a PC null modem connector (GE part #342A4931ABP1) and a controller connector (GE part #342A4931ABP2) or a miniature D shell, null modem serial cable (GE part #336A3582P1), connected with a micro-miniature pigtail (GE part #336A4929G1） |
|
Environmental Specifications |
Temperature: Operating 0 to 60°C (32 to +140 ºF) Temperature: Storage -40 to +85°C (-40 to +185 ºF) Humidity: 5 to 95% non-condensing Altitude: Operating 0 to 10,000 ft. (3,000 m) Altitude: Storage 0 to 40,000 ft (12,000 m) |
|
Power requirements |
+3.3 V dc, 3.5 A typical, 4.25 A maximum +5 V dc, 150 mA typical, 300 mA maximum |
