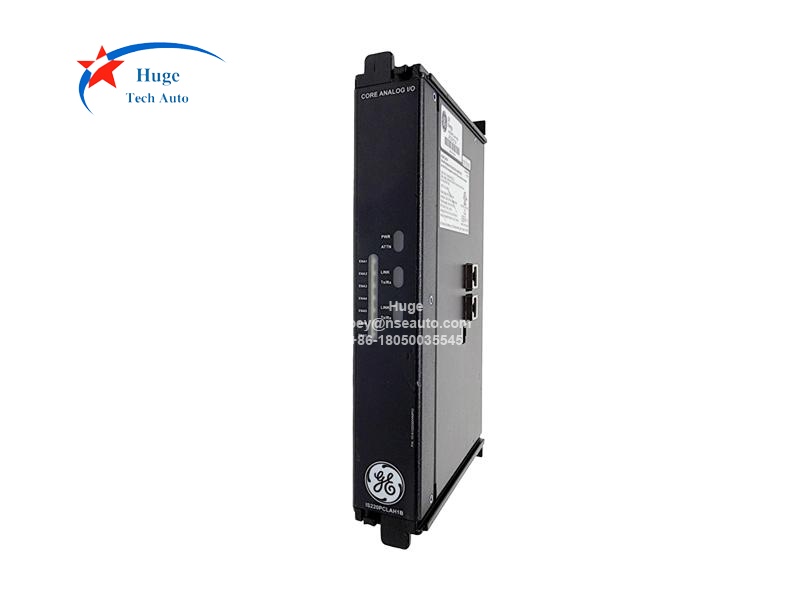

IS220PCLAH1B GE AERO CORE ANALOG Module

GE Mark VIe AERO CORE ANALOG Module IS220PCLAH1B

Brand:
General Electric PLC
Item NO.:
IS220PCLAH1B
Order(MOQ):
1 PC
Payment:
T/T
Product Origin:
USA
Shipping Port:
Xiamen
Lead Time：
In stock
Warranty:
1 Year

Product Detail

IS220PCLAH1B GE AERO CORE ANALOG Module
Description:

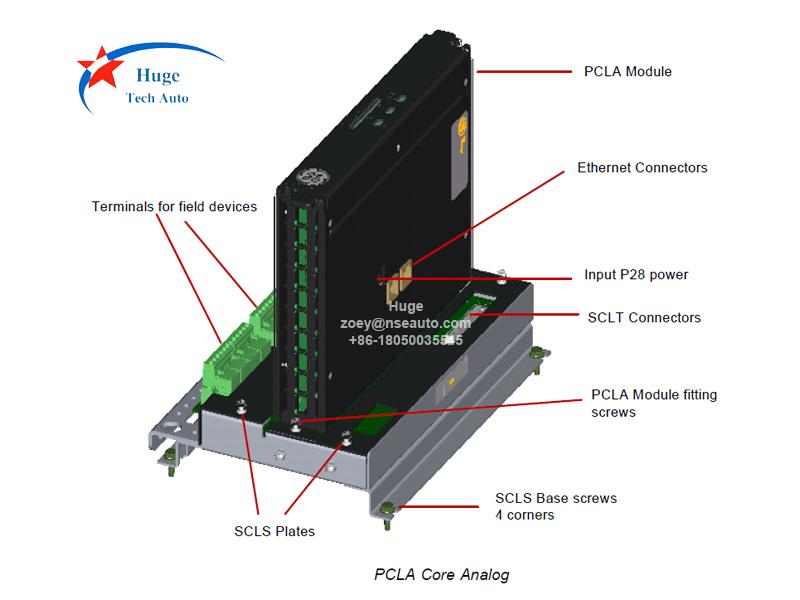

IS220PCLAH1B is GE Mark Vie series AERO CORE ANALOG Module. The Core Analog I/O for Aero-derivative gas turbines (PCLA) and associated Core Analog (SCLS and SCLT) terminal boards provide a large portion of the analog signal I/O required to operate an engine. IS220PCLAH1B and the termatinal board SCLT provide thermocouple inputs, RTD inputs, voltage inputs, and 4-20 mA current loop inputs and outputs. IS220PCLAH1B can be applied in simplex controller simplex I/O, dual controller simplex I/O, dual controller TMR I/O and TMR controller TMR I/O control systems. A single SCLT terminal board fans signal inputs to one or three connected IS220PCLAH1B.

IS220PCLAH1B provides the electrical interface between one or two Ethernet I/O networks and the terminal board. It contains a processor board common to all Mark VIe distributed I/O. Input to the IS220PCLAH1B module is through dual RJ-45 Ethernet connectors and a 28 V dc power connector P1.

Q&A:
1. Is IS220PCLAH1B compatible with other GE module?
IS220PCLAH1B is fully compatible with all other GE Mark VIe I/O module and controllers.

Related items:
IS220PCLAH1A
IS220PDIIH1B
IS220PHRAH1B
IS220YSILS1B
