RLC16 200-570-101-013 Relay Card
Description：
The RLC16 Relay Card is designed for use in machinery protection systems and condition and performance monitoring systems. It is an optional card, for use when the 4 relays on the IOC4T input/output card are insufficient for the application and additional relays are required.

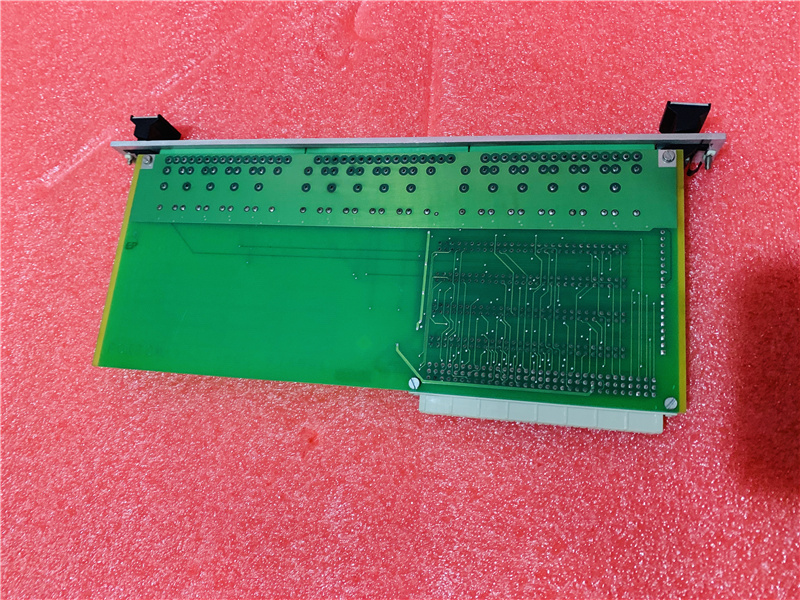

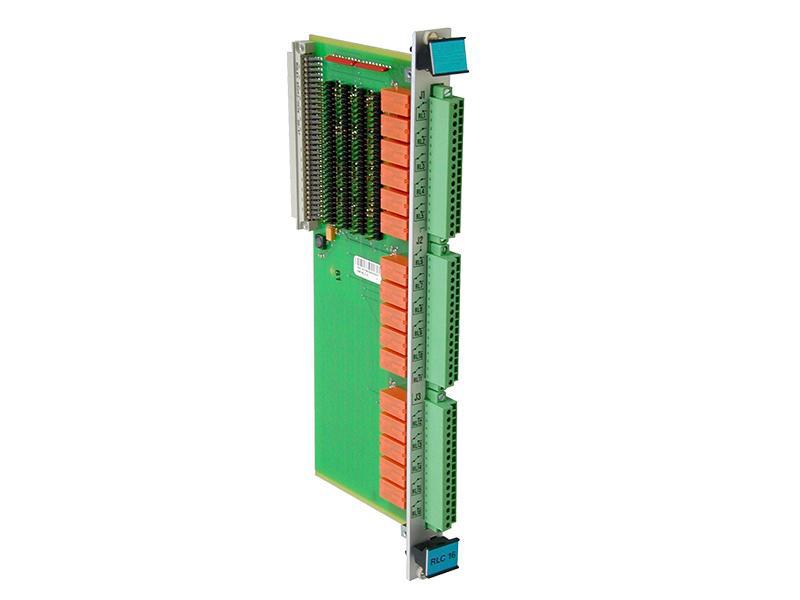

The RLC16 is installed in the rear of the ABE04X rack and connects directly to the rack backplane via a single connector. The RLC16 contains 16 relays with change-over contacts. Each relay is associated with 3 terminals on a screw terminal strip accessible at the rear of the ABE 04X rack.
The relays are controlled by open-collector drivers under software control. Jumpers on the RLC16 card allow the selection of relay normally energized (NE) or normally de-energized (NDE).
Any relay on the RLC16 cards can be configured to provide the safety function, for a safety relay corresponding to an alarm, the alarms and relays must be configured depending on the role of the safety loop.
