Product Detail

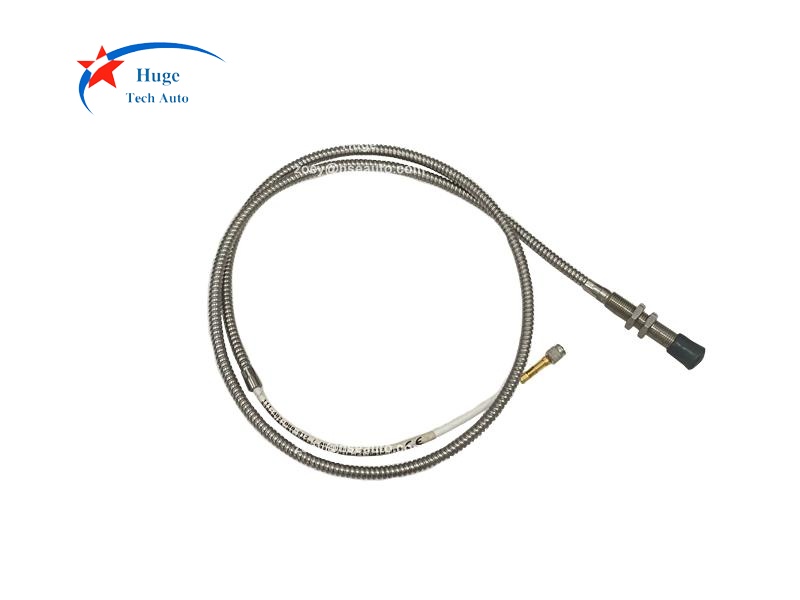

TQ402 111-402-000-013 TQ402 proximity transducer A2-B1-C070-D000-E050-F2-G048-H05
Description:
TQ402 111-402-000-013 A2-B1-C070-D000-E050-F2-G048-H05 the proximity transducer, a high-performance non-contact measuring solution engineered for precise monitoring of rotating machine components. In steam, gas, and hydraulic turbines, alternators, turbo-compressors and pumps industry, TQ402 is a great choice due to high precise measuring relative displacement, vibration, and axial position of shafts.
Certified for explosive atmospheres (Ex i), TQ402 111-402-000-013 meets global safety standards, including EC type examination (II 1G, Zones 0-2), IECEx conformity, and CSA US compliance for Class I, Divisions 1 and 2, Groups A-D. Its design features an M10 x 1 body thread (B1), 70mm body length (C070), and 0mm unthreaded section (D000), paired with a 5.0m integral coaxial cable (E050) protected by a flexible stainless steel hose with an FEP sheath (F2). The 4.8m flexible hose (G048) enhances durability, offering chemical resistance and protection against liquids, gases, and moisture, while the 5m total system length (H05) eliminates the need for extension cables.
TQ402 111-402-000-013 A2-B1-C070-D000-E050-F2-G048-H05 can be used for critical machinery monitoring, it possesses the characteristics of accuracy, safety, and durability.
Ordering Information:
TQ 402 111-402-000-013 proximity transducer
111 - 402 - 000 - 013-AA-BB-CCCC-DDDD-EEEE-FF-GGGG-HHH
AA: Environment
BB: Body thread
CCCC: Body length
DDDD: Unthreaded length
EEEE: Integral cable length
FF: Optional protection
GGGG: Flexible hose length
HH: Total system length
Related items:
TQ402 111-402-000-013 A1-B1-C042-D000-E010-F0-G000-H10
TQ402 111-402-000-013 A1-B1-C045-D000-E050-F0-G000-H05
TQ402 111-402-000-013 A1-B1-C190-D080-E050-F2-G048-H05
TQ402 111-402-000-013 A1-B1-C165-D080-E050-F2-G050-H05
TQ402 111-402-000-013 A1-B1-C190-D080-E050-F2-G050-H05
TQ402 111-402-000-013 A1-B1-C155-D000-E050-F2-G050-H05
TQ402 111-402-000-013 A1-B1-C030-D000-E050-F0-G000-H05
