RLC16 200-570-000-111 Relay Card
Description:
The RLC16 200-570-000-111 relay card is intended for use in machinery protection systems and condition/performance monitoring systems. It serves as an optional add-on, recommended when the four built-in relays on the IOC4T input/output card are insufficient for the application’s requirements and extra relays are needed.

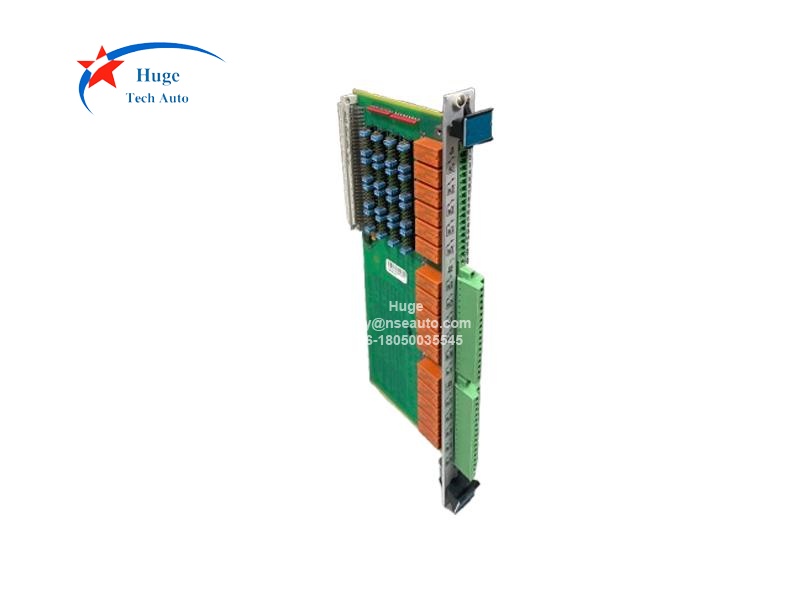

Installed at the rear of a compatible rack (either ABE04x or ABE056), the RLC16 200-570-000-111 connects directly to the rack’s backplane through a single connector. The card houses 16 relays, each featuring change-over contacts. Corresponding to each relay are 3 terminals on a screw-terminal connector, which is easily accessible at the rear of the compatible rack.
Relay operation is controlled by open-collector drivers, which are managed via software. On-board jumpers on the RLC16 200-570-000-111 allow users to select between two relay states: normally energized (NE) or normally de-energized (NDE).
For general information on working with RLC16 200-570-000-111 cards, please refer to the Machinery Protection System (MPS) hardware manual and the MPSx software manuals. For application-specific guidance, contact your local representative.
KEY FEATURES AND BENEFITS
▪ Screw-terminal connectors for secure, easy wiring
▪ 16 relays equipped with change-over contacts
▪ Jumper-selectable inverter logic for relay drivers
▪ Low contact resistance for reliable signal transmission
▪ Low capacitance to minimize signal interference
▪ High through-power capability for versatile use
▪ Hot-swappable design enables live card insertion/removal
▪ Compliant with EC electromagnetic compatibility (EMC) standards
Ordering number:
There are 2 versions of RLC16 Relay Card：
200-570-000-1Hh – Standard version
200-570-000-2Hh – Separate circuits version
