TQ403 111-403-000-013 Proximity Transducer without Flexible stainless steel hose

Item NO.:
TQ403
Order(MOQ):
1 PC
Payment:
T/T
Product Origin:
Switzerland
Shipping Port:
Xiamen
Warranty:
1 year

Product Detail

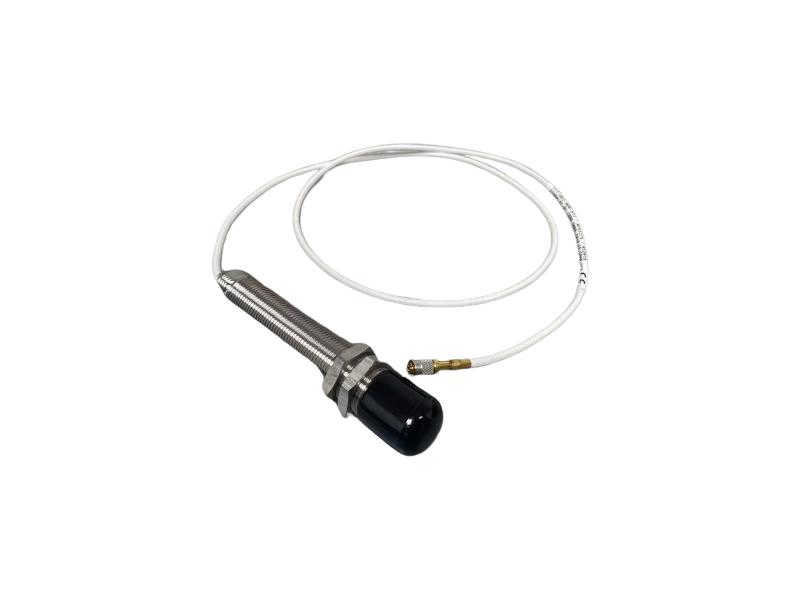

TQ403 111-403-000-013 Proximity Transducer without Flexible stainless steel hose
Description:

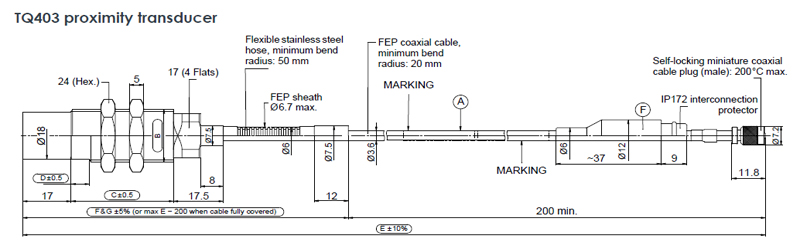

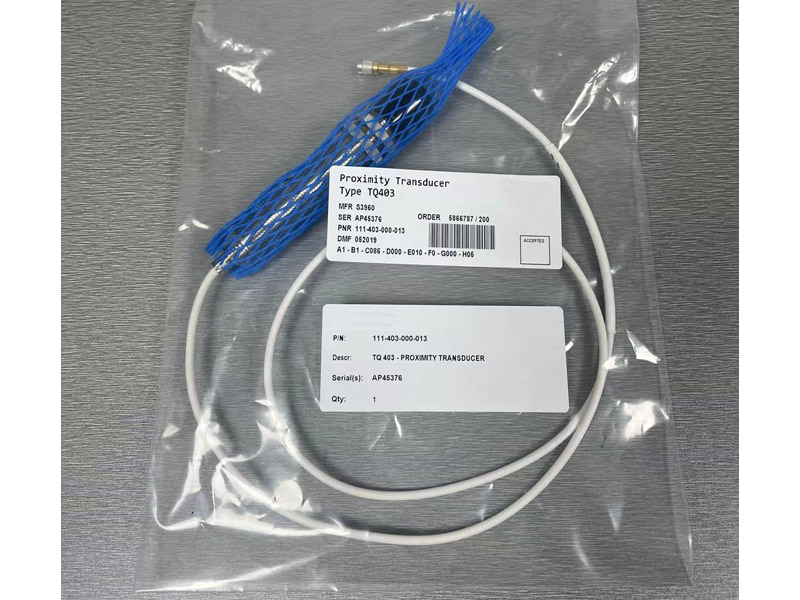

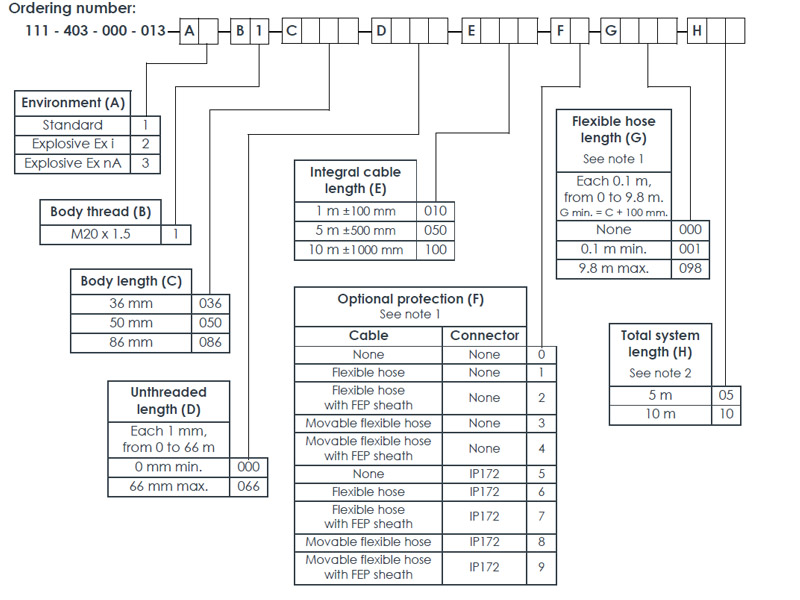

TQ403 111-403-000-013 A1-B1-C086-D000-E010-F0-G000-H05, it is a non-contact Proximity Transducer without Flexible stainless steel hose, body length 86mm, integral cable length 1m, total system length 5m.
The TQ403, EA403 and IQS450 form a proximity measurement system. TQ4xx-based proximity measurement systems are
particularly suitable for measuring the relative vibration and axial position of rotating machine shafts, such as those found in steam, gas and hydraulic turbines, as well as in alternators, turbocompressors and pumps.
The active part of the transducer is a coil of wire that is moulded inside the tip of the device, made of Torlon® (polyamide-imide). The transducer body is made of stainless steel. The target material must, in all cases, be metallic.
The transducer body is available only with metric thread. The TQ403 has an integral coaxial cable, terminated with a self-locking miniature coaxial connector. Various cable lengths (integral and extension) can be ordered.
The TQ403 transducer can be matched with a single EA403 extension cable to effectively lengthen the front-end. Optional housings, junction boxes and interconnection protectors are available for the mechanical and environmental protection of the connection between the integral and extension cables.
