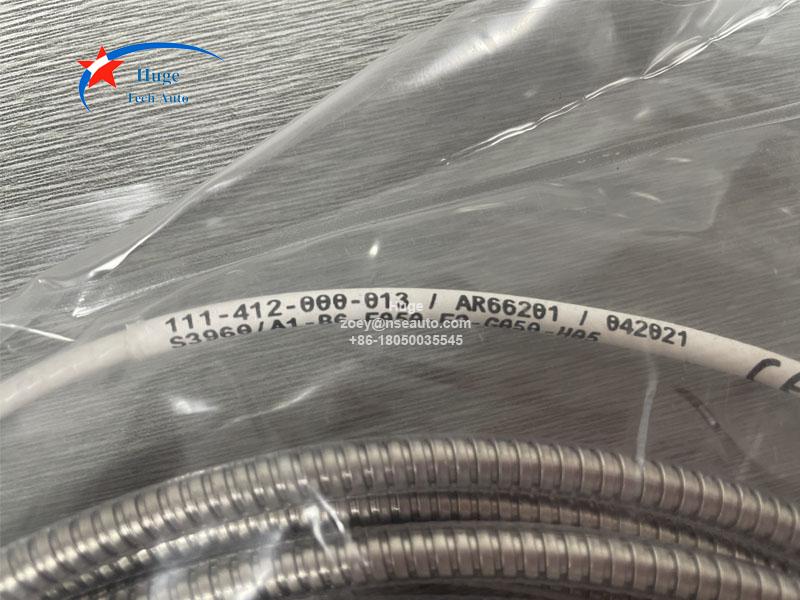

TQ412 111-412-000-013 A1-B6-E050-F2-G050-H05 Proximity Transducer with armored
Description:
TQ412 111-412-000-013 A1-B6-E050-F2-G050-H05 is designed as a Proximity Transducer of the proximity system. The key feature of TQ412 is the reverse-mount applications. TQ412 111-412-000-013 has an integral coaxial cable, terminated with a self-locking miniature coaxial connector. The diameter of the tip is Ø8.2 mm.

Depending on the eddy current principle, TQ412 111-412-000-013 achieves non-contact measurement. TQ 412 transducers can be matched with a single EA 402 extension cable to effectively lengthen the front-end.

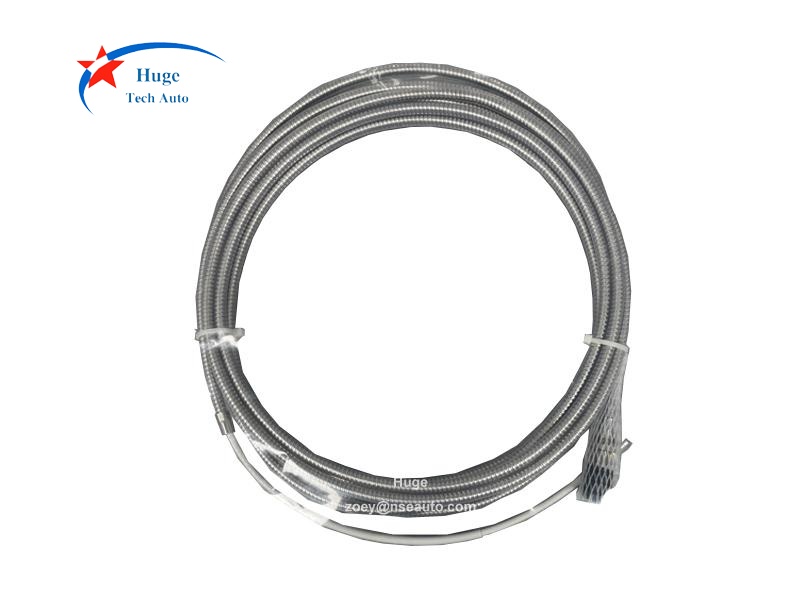

TQ412 111-412-000-013 A1-B6-E050-F2-G050-H05 is standard version, 3/8″-24UNF body thread, 5 meters intergral cable, Flexible hosewith FEP sheath, with flexible hose length 5 meters, support 5 meters total system length.

Features:
▪ Specially designed for non-contact measurement of relative vibration and axial displacement in turbines, compressors, pumps and fans.
▪  Available measurement ranges: 2 mm or 4 mm (sensor diameter: Ø8.2 mm).
▪  Operating temperature range: −40 °C to 180 °C, with IP68 protection rating.
▪  Integrated coaxial cable options: 0.5 m, 1.0 m, 1.5 m, 2.0 m or 5.0 m.
▪  Explosion-proof versions certified for operation in potentially explosive atmospheres.
▪  Compliant with API 670 5th Edition standard.

Ordering Information:
TQ412 111-412-000-013-AX-BX-EXXX-FX-GXXX-HXX
A: Environment
1  Standard
2  Explosive Exi
3  Explosive Ex nA
B: Body thread
1  M10x1
6  3/8"-24UNF
E: Integral cable length
005  0.5 m +50 mm
010  1.0 m +100 mm
015  1.5 m +150 mm
020  2.0 m+200mm
050  5.0 m +500 mm
100  10.0 m +1000mm
F: Optional protection
0  None
1  Flexible hose
2  Flexible hose with FEP sheath
3  Movable flexible hose
4  Movable flexible hose with FEP sheath
G: Flexible hose length
Each 0.1 m, from 0 to 9.8 m
000  None
001  0.1 m min.
098  9.8 m max
H: Total system length
01  1m
05  5m
10  10m
