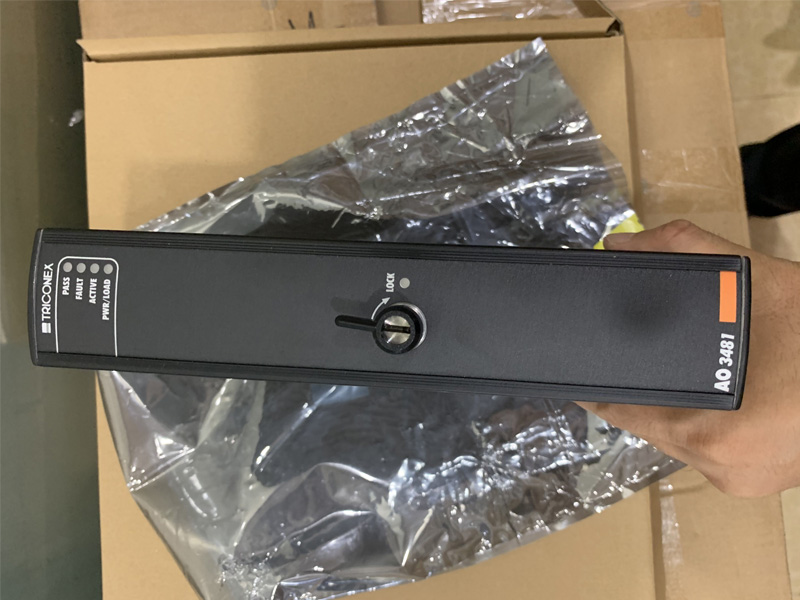

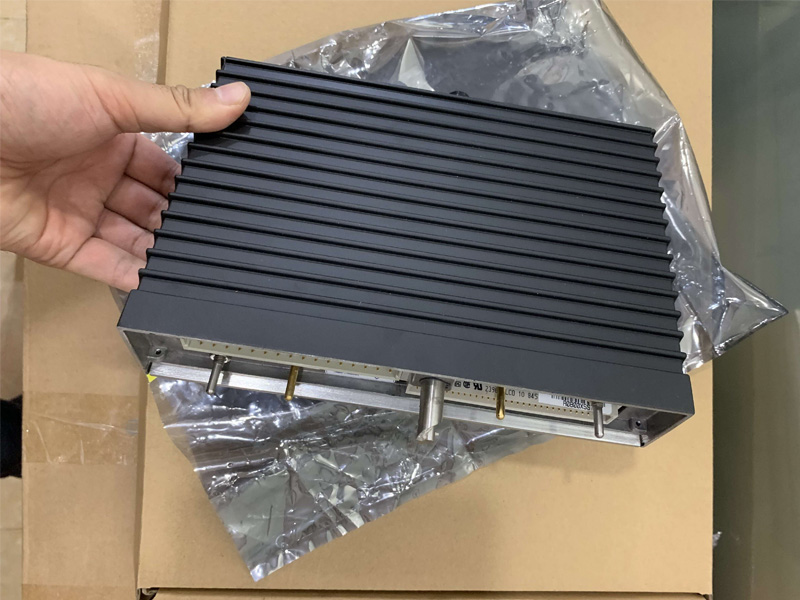

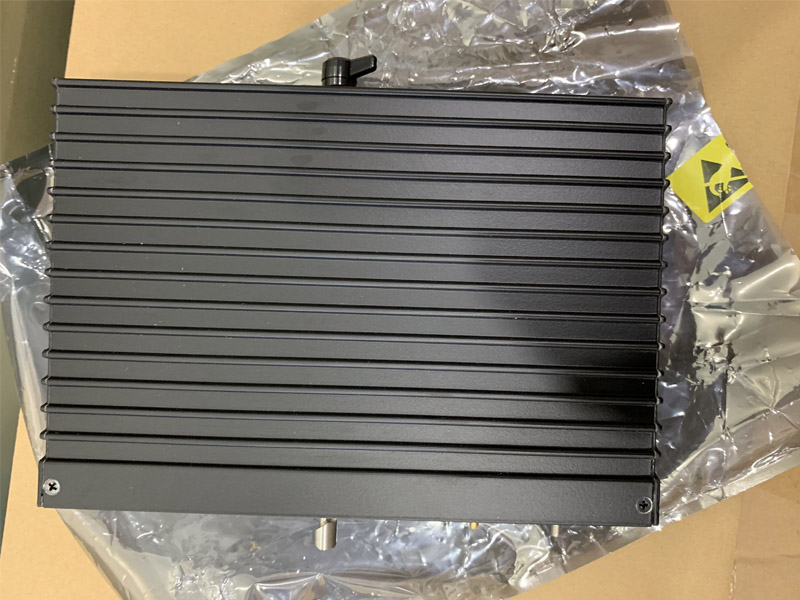

TRICONEX AO3481 Analog Output Module with one year warranty
TRICONEX AO3481 Analog Output Module with one year warranty
Brand:
TriconexItem NO.:
TRICONEX AO3481Order(MOQ):
1Payment:
T/TProduct Origin:
USAShipping Port:
XIAMENLead Time：
IN STOCKWarranty:
1 Year
TRICONEX AO3481 Analog Output Module with one year warranty
Description:
AO3481 is part ot Triconex Analog Output Module.Each TMR Analog Output Module has three isolated sets of electronics, called channels, which independently accept data from the MP associated with each channel. The channels provide input to voter circuitry to select a single channel to drive the output. Special circuitry is used to ensure that the channels that are not driving the output are shunted so they cannot affect the output.
|
Feature |
Specification |
|
Points |
4, commoned-return, DC-coupled |
|
Isolated points |
None |
|
Output current range |
4–20 mA output, controlled 0–22 mA over-range 0 mA output capability (step function < 2 mA) |
|
Output accuracy |
<0.25% (in range of 4–20 mA) of FSR (0–22 mA), from 32° F to 158° F (0° C to 70° C) |
|
Type |
TMR |
|
Resolution |
12 bits |
|
Diagnostic |
Forced-switch diagnostic (FSD) |
|
External loop power (reverse voltage-protected) |
32 VDC, maximum 24 VDC, nominal |
|
Output loop power requirements for specified load |
300 Ω@ >16 VDC (1 A minimum) 500 Ω@ >20 VDC (1 A minimum) 700 Ω@ >24 VDC (1 A minimum) 800 Ω@ >28 VDC (1 A minimum) |
|
Over-range protection 36 VDC |
36 VDC, continuous 0 VDC, continuous |
|
Switch time on leg failure |
1 ms, typical 3 ms, maximum |
