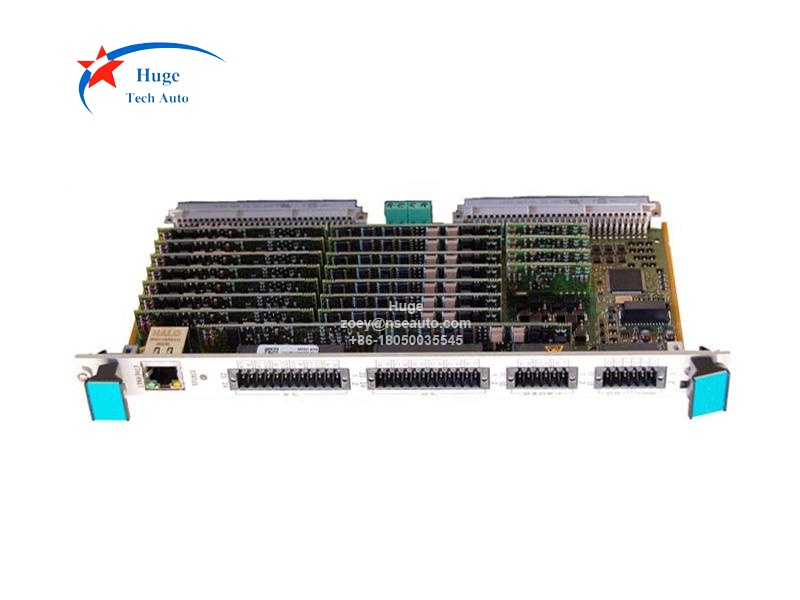

XIO16T 620-002-000-113 Extended Input/ Output Card
Description:
Extended vibration monitoring card pair consists of an XMV16 extended vibration monitoring card and an XIO16T extended input/output card. This card pair provides all of the interfacing and signal processing functions required of an intelligent data acquisition system and is a central element in the Total Monitoring Solution. The cards are designed for operation with the software – to acquire and analyse your vibration data before communicating the results directly to a host computer using the on-board Ethernet controller.
The XIO16T card acts as a signal interface for the XMV16 card, performs all of the analogue signal conditioning and also supports the external communications. In addition, it protects all inputs against signal surges and EMI to meet EMC standards.
The XIO16T card’s inputs are fully software configurable and can accept signals representing speed and phase reference (for example, from TQ xxx sensors) and vibration derived from acceleration, velocity and displacement (for example, from CA xxx, CE xxx, CV xxx and TQ xxx sensors).
The inputs also accept any dynamic or quasi-static signals that are appropriately signal conditioned. Externally, the XIO16T card interfaces to the transmission cables coming from the sensor system’s transducers and conditioners using the rear connectors. Internally, input signals can be shared between cards using the tacho bus and raw bus, which reduces external wiring requirements.
