165855-14-CN Bently Nevada Cylinder Pressure Transducer

Bently Nevada Cylinder Pressure Transducer with 0 to 69 bar (0 to 1,000 psia) w/ armor.

  • Brand:

    Bently Nevada TSI
  • Item NO.:

    165855-14-CN
  • Order(MOQ):

    1 PC
  • Payment:

    T/T
  • Product Origin:

    USA
  • Shipping Port:

    XIAMEN
  • Weight:

    0.25kg
  • Warranty:

    1 Year
Product Detail

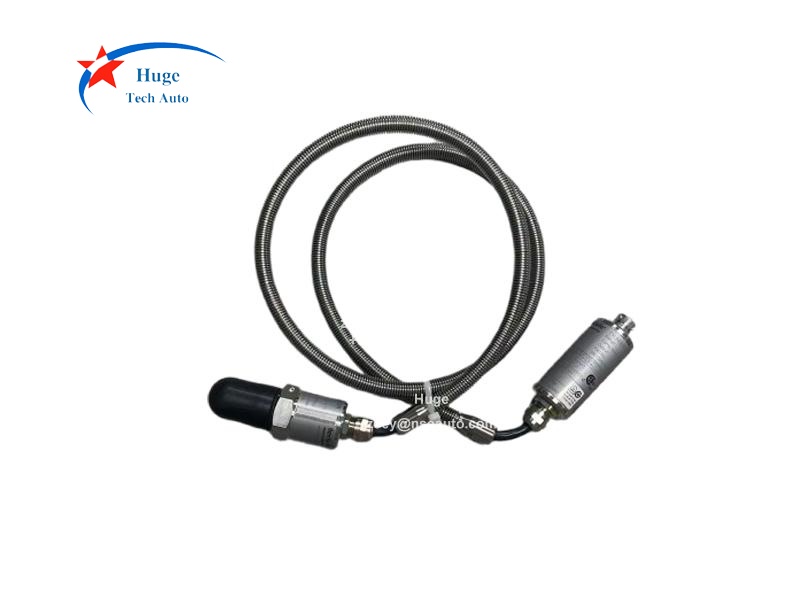

Bently Nevada Cylinder Pressure Transducer 165855-14-CN
Description:
165855-14-CN is Bently Nevada Cylinder Pressure System Cylinder Pressure Transducer with 0 to 69 bar (0 to 1,000 psia) w/ armor. The Cylinder Pressure System comprises the 165855 Cylinder Pressure Transducer and 146824 Interconnect Cable. Designed to measure cyclic absolute pressure fluctuations inside reciprocating compressor cylinders, this transducer integrates seamlessly into Reciprocating Compressor Condition Monitoring and Asset Management Systems when paired with our 3500/77M Cylinder Pressure Monitor and System 1 Plant Asset Management Software.

Engineered for high reliability in harsh chemical environments, the Cylinder Pressure Transducer features a unique, patent-pending design. This design ensures consistent, accurate pressure readings even after prolonged operation under large cyclic pressure gradients. It also withstands over-pressure events caused by operational upsets without damaging the diaphragm, resuming normal function once pressure returns to its specified operating range. Additionally, the transducer meets NEMA 4X and IP67 standards for moisture resistance.

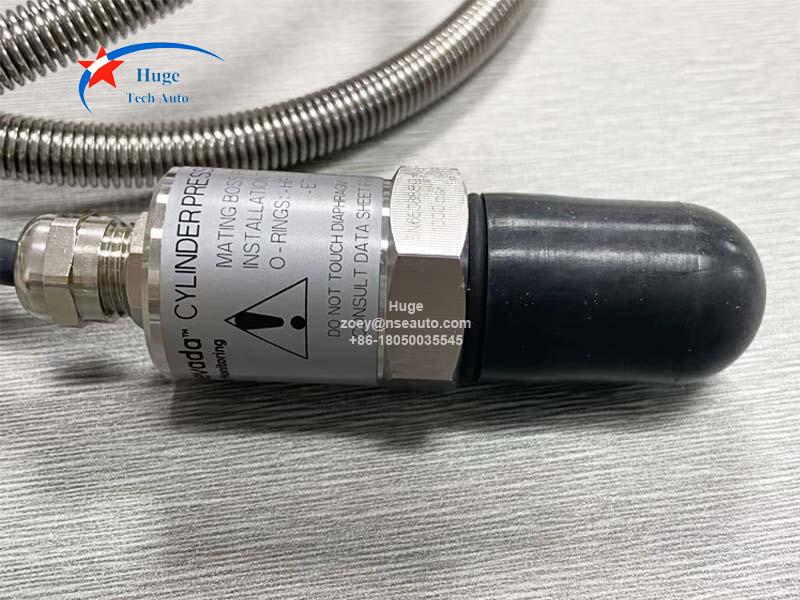

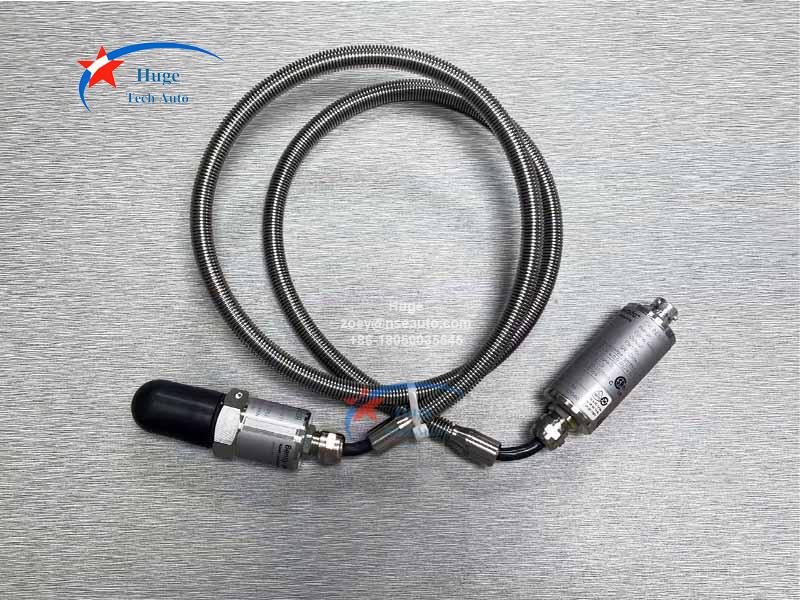

The transducer’s wetted surface is typically installed into an isolation valve or similar pressure indicator port on the compressor. A special adapter—typically the 166393 model—is generally needed to create a tight seal between the pressure indicator port and the transducer. The transducer’s electronics are separated from the wetted surface by 1 meter of cable and must be secured on or near the compressor for optimal performance.

Each pressure sensor ships with pressure-temperature compensation data to enhance measurement accuracy. Inputting these provided data points into the 3500/77 Cylinder Pressure Monitor helps minimize temperature-related impacts on transducer performance.

Ordering number:
165855-AA-BB
A: Pressure Range Option
11  0 to 6.8 bar (0 to 100 psia) w/ armor
12  0 to 17 bar (0 to 250 psia) w/ armor
13  0 to 34.5 bar (0 to 500 psia) w/ armor
14  0 to 69 bar (0 to 1,000 psia) w/ armor
15  0 to 172 bar (0 to 2,500 psia) w/ armor
16  0 to 345 bar (0 to 5,000 psia) w/ armor
17  0 to 689 bar (0 to 10,000 psia) w/ armor
B: Hazardous Areas Location Approval
01  Multiple Approvals (CSA, ATEX, and IECEx)

165855-14-CN

165855-14
