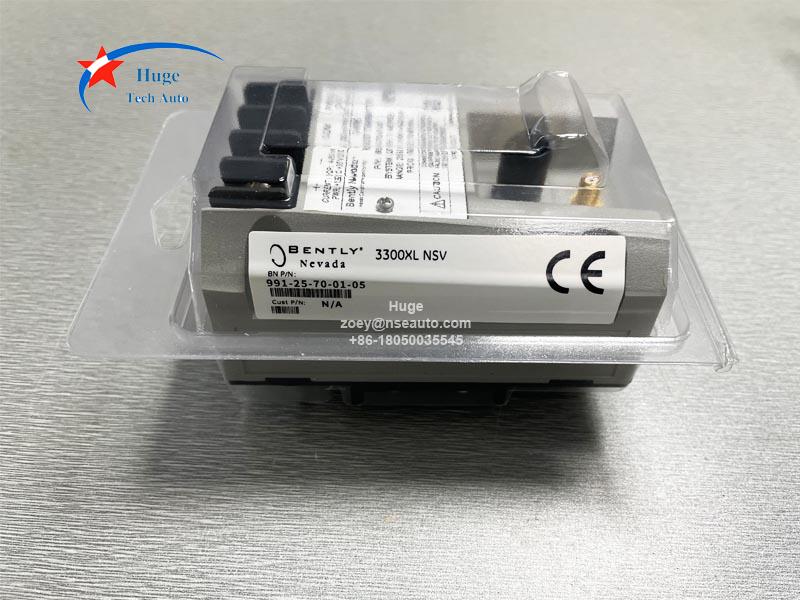

991-25-70-01-05 Bently Nevada 991 Thrust Transmitter

Bently Nevada 991 Thrust Transmitter 991-25-70-01-05

Brand:
Bently Nevada TSI
Item NO.:
991-25-70-01-05
Order(MOQ):
1 PC
Payment:
T/T
Product Origin:
USA
Weight：
0.43kg
Warranty:
1 Year

Product Detail

Bently Nevada 991 Thrust Transmitter 991-25-70-01-05
Description:
991-25-70-01-05 is Bently Nevada Thrust Transmitter with 7 meters system length. 991-25-70-01-05 is designed mainly for original equipment manufacturers (OEMs) of centrifugal air compressors, small pumps, motors, or fans—those looking to supply a simple 4–20 mA signal proportional to axial displacement (thrust) as input for their machinery control systems. It’s a 2-wire, loop-powered unit that takes input from our 3300 NSv proximity probe and its matching extension cable (offered in 5 m and 7 m system length options). The transmitter conditions this signal into relevant engineering units tied to the shaft’s axial position, then delivers it as an industry-standard 4–20 mA output. This signal feeds directly into the control system, where machinery protection alarming and logic functions are executed.

Ordering Information:
991-AA-BB-CC-DD
A: Full-scale Option
06 0.6-0-0.6 mm
25 25-0-25 mils
B: System Length Option
50 5.0 meters (16.4 feet)
70 7.0 meters (23.0 feet)
C: Mounting Option
01 35 mm DIN-rail clips
02 Bulkhead screws
03 DIN clips and screws
D: Agency Approval Option
00 Not required
01 CSA Division 2
05 CSA Division 2, ATEX Zone 0, ATEX Zone 2 and includes ABS maritime approva
