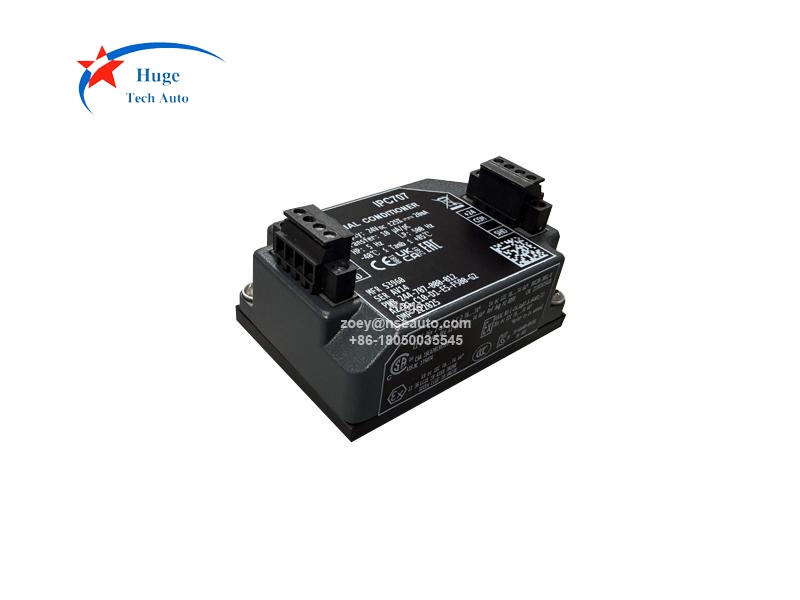

IPC707 244-707-000-012 A2-B1-C10-D1-E5-F500-G2 Singal Conditioner with DIN-rail adaptor
Description:
The IPC707 244-707-000-012 is designed as a signal conditioner in a vibration measure chains or a pressure measurement chains. The IPC707 converts the charge-based signal from the CPxxx piezoelectric pressure sensor into a current or voltage output signal suitable for transmission to external monitoring and/or protection systems. Alternatively, the IPC707 signal conditioner also supports diagnostic functions (i.e., built-in test device (BITE) circuitry) to indicate problems in the measurement chain consisting of the sensor, cable, and IPC707 signal conditioner.
Major Functions:
The IPC707's output signal packet consists of a dynamic measurement component (AC) and a quasi-static diagnostic component (DC). For optional diagnostic functions, the nominal value of the diagnostic component indicates normal operation; other values indicate problems with the sensor and/or cable, signal conditioner, signal conditioner power supply, or other issues. External mechanical protection and/or condition monitoring systems connected to the IPC707 can monitor the nominal value of the IPC707's output signal diagnostic component (DC) and provide alarms to indicate problems (abnormal operation).
Wiring & System Performance:
The IPC707's metal casing (conductive) is connected to its "COM" and "SHD" terminals. Therefore, the IPC707 can be installed and operated with or without a direct electrical connection between the IPC707 and ground (GND).
The CPxxx-based pressure measurement chain using the IPC707 signal conditioner, with current-modulated output signal, two-wire transmission cable, and GSI127 electrical isolation, can transmit higher quality signals over longer distances than any other solution, and is therefore highly recommended.
Features:
▪ Signal conditioning for CA accelerometers and CP dynamic pressure sensors.
▪ Vibration or dynamic pressure measurement for machinery protection and/or advanced condition monitoring.
▪ Very wide frequency range (0.5 to 20000 Hz), with configurable high-pass and low-pass filters, independent of transfer function.
▪ Configurable transfer function (sensitivity and units), with optional integrator to provide a velocity output.
▪ Current output for signal transmission over long distances or voltage output for signal transmission over medium distances.
▪ Certified for use in potentially explosive atmospheres (hazardous areas).
▪ Suitable for use in functional safety contexts: SIL 2 in accordance with IEC 61508 and Cat 1 PL c in accordance with ISO 13849.

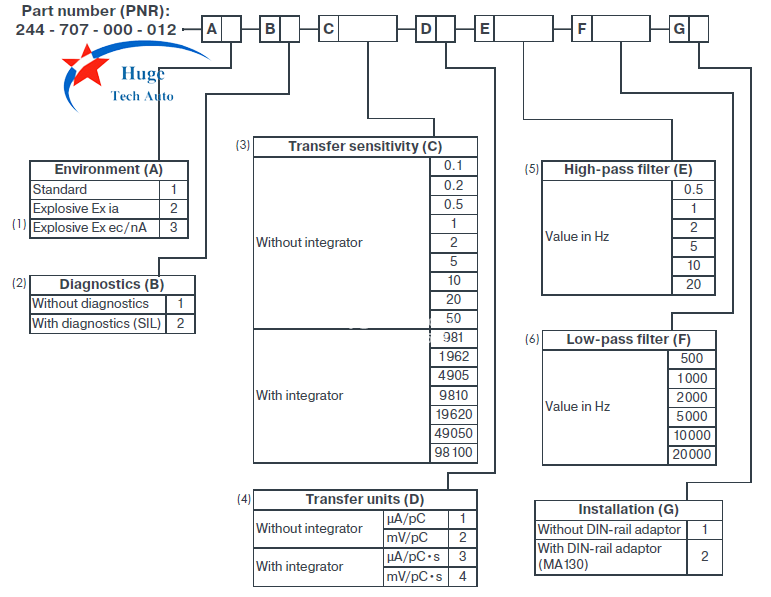

Ordering Information:
244-707-000-012-Ax-Bx-Cxxxxx-Dx-Exx-Fxxxxx-Gx
A: Environment
B: Diagnostics
C: Transfer sensitivity
D: Transfer units
E: High-pass filter
F: Low-pass filter
G: Installation
Q&A:
1. Is the IPC707 244-707-000-012 A2-B1-C10-D1-E5-F500-G2 equipped with diagnostic functions?
Yes, it is. The Ordering number B represent the diagnostics functions. B1 means without diagnostics, the B2 means with diagnostics (SIL). The IPC707 signal conditioner with diagnostic functions for safety-related applications can be identified by order code B2 and the SIL marking.
2. How to replace IPC704 signal conditioner with IPC707?
（1）Ensure the device power is switched off.
（2）Remove the IPC704 signal conditioner.
（3）Reuse the existing industrial enclosure or install a new one.
（4）Mount the IPC707 inside the industrial enclosure.
（5）Adjust the length of sensor cables and transmission cables if needed.
（6）Loosen the cable glands on the ABA17x industrial enclosure and feed the cables through.
（7）Strip approximately 5 mm of insulation from the end of each wire.
（8）Configure the external monitoring system.
