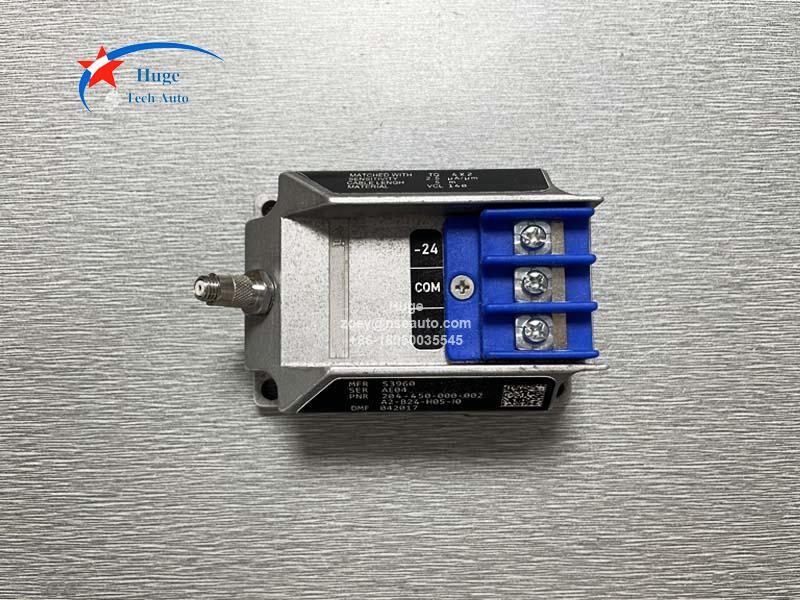

IQS450 204-450-000-002 A2-B24-H10-I1 Signal Conditioner

Proximity measuring system Signal Conditioner IQS450 204-450-000-002 A2-B24-H10-I1

Brand:
Ungrouped
Item NO.:
204-450-000-002 A2-B24-H10-I1
Order(MOQ):
1 PC
Payment:
T/T
Market Price:
999
Price Range:
1 - 5
Product Origin:
Switzerland
Color:
Depends on material
Shipping Port:
XIAMEN
Lead Time：
IN STOCK
Weight：
140g
Warranty:
1 Year

Product Detail

IQS450 204-450-000-002 A2-B24-H10-I1 Signal Conditioner
Description:
IQS450 204-450-000-002 is designed as a signal conditioner to transforms the signal from a TQ4xx proximity transducer into a current-modulated or voltage-modulated signal. Worked with TQ4XX and EA4XX, they compose a proximity system, which is situable for the Shaft relative vibration and gap/position measurement for machinery protection and/or advanced condition monitoring.

IQS450 204-450-000-002 A2-B24-H10-I1 can be used in the hazardous locations. IQS450 204-450-000-002 A2-B24-H10-I1 is Explosive version, measuring range 4mm with the sensitivity 1.25 uA/um, support 10 meters system length, assembled on a MA130 mounting adaptor. Its weight is 220g, a bit heavier than the standard version.

Key features:
▪ Shaft relative vibration and gap/position measurement for machinery protection and/or advanced condition monitoring.
▪ Very wide frequency range (DC to 20000 Hz), with configurable sensitivity and measurement range.
▪ Current output for signal transmission over long distances or voltage output for signal transmission over medium distances.
▪ Certified for use in potentially explosive atmospheres (hazardous areas).

Application:
▪ Used for non‑contact displacement monitoring of rotating shafts in steam, gas, and hydraulic turbines.
▪ Applied to vibration and axial position measurement in turbo‑compressors and pumps.
▪ Suitable for shaft displacement detection in generators and other rotary machinery.
▪ Deployed in hazardous industrial environments with explosive atmospheres for safe condition monitoring.
▪ Used for high‑precision gap and displacement detection in high‑temperature industrial equipmen.
▪ Applied in predictive maintenance systems to monitor mechanical clearance and dynamic movement of critical components.

Specifications:

Output
Voltage output, 3-wire configuration
Voltage at min. gap	−1.6 V
Voltage at max. gap	−17.6 V
Dynamic range	16 V
Output impedance	500 Ω
Short-circuit current	45 mA
Current output, 2-wire configuration
Current at min. gap	−15.5 mA
Current at max. gap	−20.5 mA
Dynamic range	5 mA
Output capacitance	1 nF
Output inductance	100 μH
Supply
Voltage output, 3-wire configuration
Voltage	−20 to −32 V
Current	−13 mA ± 1 mA (−25 mA max.)
Current output, 2-wire configuration
Voltage	−20 to −32 V
Current	−15.5 to −20.5 mA
Supply input capacitance	1 nF
Supply input inductance	100 μH

Ordering Information:
204-450-000-002-AX-BXX-HXX-IX
A: Environment
1 Standard
2 Explosive Exi
3 Explosive Ex nA
B: Sensitivity
23 4 mV/um
24 1.25 uA/um
H: Total system length
05 5 m
10 10m
I: Installation
0 Signal conditioner only
1 Signal conditioner assembled on MA130 mounting adaptor

Q&A:
1. Can the IQS450 work with TQ412?
Yes, it is compatible with TQ402 or TQ412.
2. What's the warranty period and payment term?
We supply 1 year warranty, the payment term is T/T in advance.
