HIMA 2-fold Analogue Limit Monitor 62100
Description:

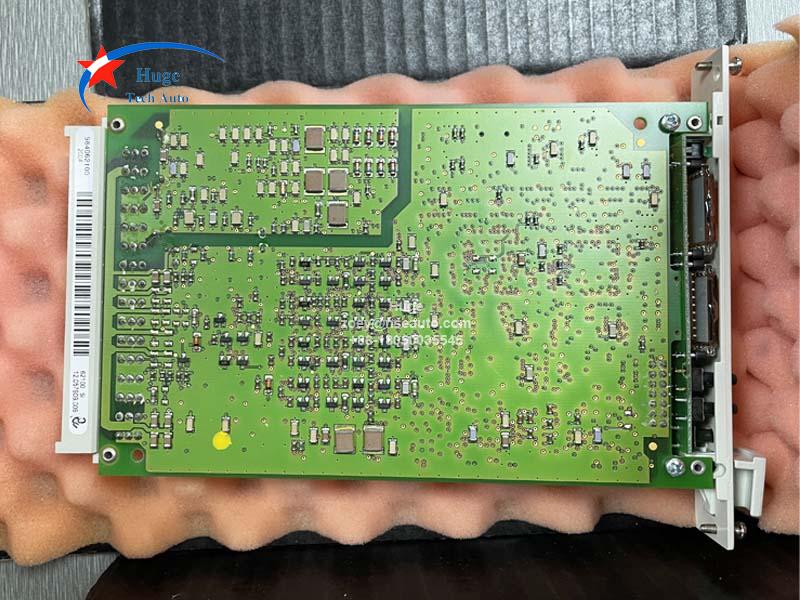

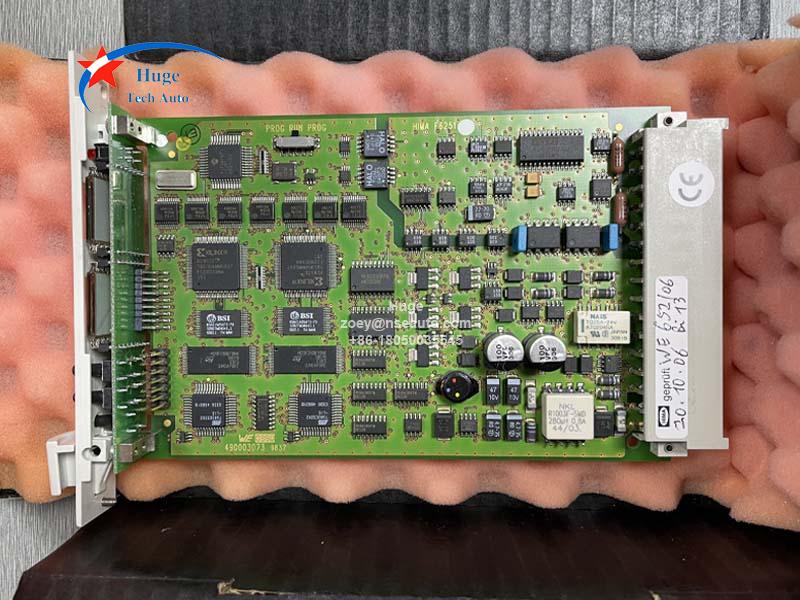

62100 is designed as HIMA Planar4 System 2-fold Analogue Limit Monitor. As a related limit monitor, 62100 can be workable for analogue circuits. It is a 4 spacing units wide module suitable for a 19-inches subrack, 3 units high. There is a double processor system equip on the 621000. It has two voltage inputs 0...5.5 V electrically isolated from the outputs. The limit value outputs are switched when reaching the adjustable limit plus hysteresis values. If the input voltage leaves the admissible standard range, this is indicated optionally by the common 'Alarm' signal output or by an error signal and switching-off of the module.

Input & Output Configuration

When paired with safety-related transmitters, the module supports two adjustable limit values for two independent analog circuits; with redundant operating transmitters, two limit values are adjustable per module. For requirement class 6 (where dedicated safety-related transmitters are often unavailable), two transmitters at the same measuring point enable comparison of analog values against preset differences in value and time, with a common alarm signal output for exceeded value differences.

Rate-of-Change Monitoring

The module can record the analog value rate-of-change (gradient) over a user-adjustable time period and assign corresponding limit values for monitoring.

Short-Circuit Proof Output Parameters

Short-circuit proof outputs are configurable with preset parameters: limit value/rate-of-change (gradient), hysteresis, trigger direction, and optional line diagnosis (monitoring output circuit lines for short-circuits and wire breaks). Safety-related limit monitor outputs may be connected in parallel to enhance operational availability.

Front Panel Display & Indicators

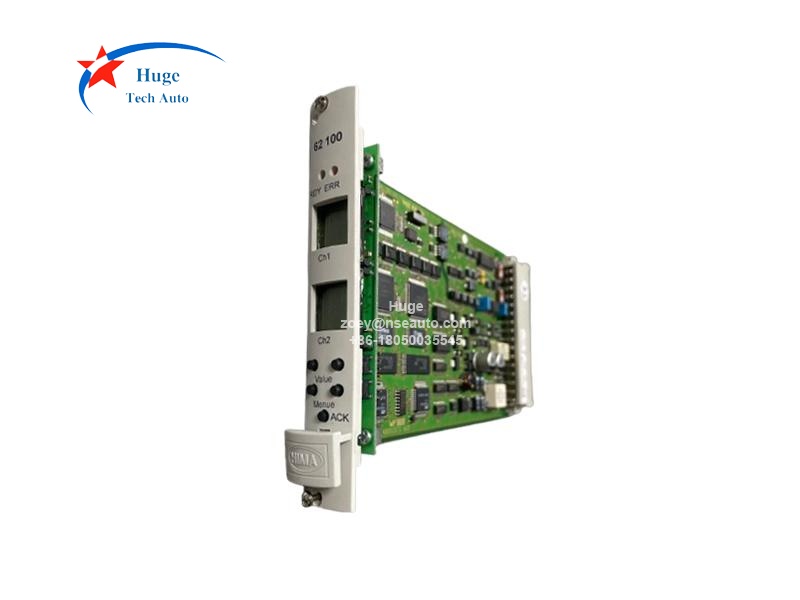

An LCD on the front panel displays digitized analog values of both channels as percentage values with 0.1% resolution. Illuminated frames around corresponding icons indicate active (1-signal) outputs; flashing icons signal line breaks or short-circuits in output circuits.

Local Programming & Operation

Programming is completed via five front-panel push buttons and the integrated LCD, requiring no additional devices or PC-based special software. For safety, parameter changes are disabled during operation, while preset parameters remain select able and viewable via the front-panel push buttons during runtime.

Stand-Alone Operation Performance
When used as a stand-alone system, the module maintains full immunity performance even when housed in a plastic enclosure.

Specifications:

Input voltage	0...5.5 V
Input current	0...22 mA (250 W Shunt)
Measuring range	according to NE 43 (I > 3.6 mA, I < 21 mA)
Input resistance	³ 100 kW
Basis error	£ 0.25 % of upper value (+25 °C)
Operating error	£ 0.4 % of upper value at -25...+70 °C
Resolution	12 Bit (upp. value incl. overflow)
Filter constant	10 ms
Switching time	< 250 ms
Output: Current limit Int. voltage drop Min. Load Max. inductivity	0.11 A ± 10 % 2.5 V at max. Load 12 kW (no lamp load) 1 H
Safety time	250 ms
Operating data	24 V DC / 170 mA, plus load
Space requirement	3 U high, 4 SU
