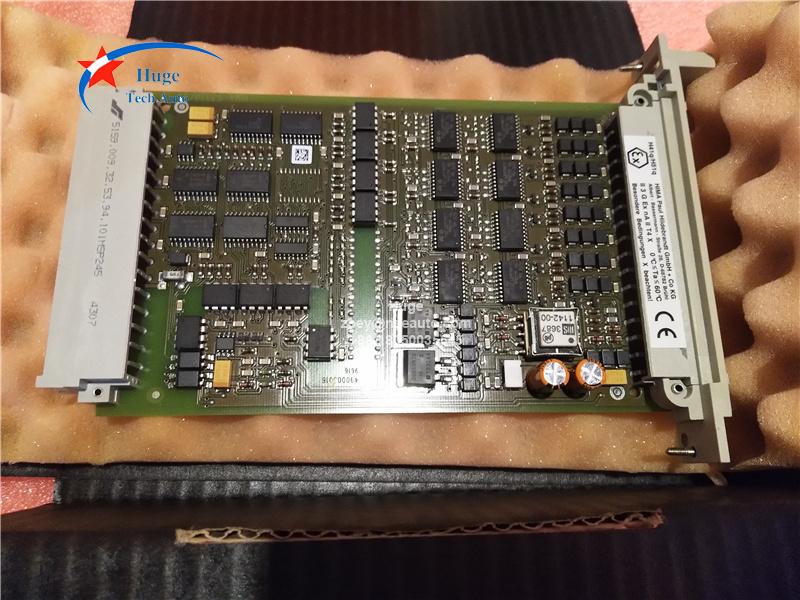

HIMA F3330 8 fold Digital Output Module
HIMA F3330 8 fold Digital Output Module
Brand:
HIMAItem NO.:
HIMA F3330Order(MOQ):
1 PCPayment:
T/TMarket Price:
999Price Range:
1 - 5Product Origin:
GermanyColor:
Depends on materialShipping Port:
XIAMENLead Time:
IN STOCKWarranty:
1 year
HIMA F3330 Safety-Related Digital Output Module
Description:
The output modules ensure the safety function using 3 safety switches connected in series for each channel where 2 are implemented as safety switches. If a fault is detected in the output voltage or safety switch, the safety switches causes all the outputs to enter the de-energized state.
F3330 resistive load or inductive load up to 500 mA (12 W), lamp connection up to 4 W, with integrated safety shutdown, with safe isolation, no output signal with break of the L- supply requirement class AK 1 ... 6.
Specifications:
Outputs: 500 mA, k short circuit proof
Internal voltage drop: max. 2 V at 500 mA load
Admissible line resistance (in + out): max. 11 Ohm
Undervoltage tripping: at ≤ 16 V
Operating point for short circuit current: 0.75 ... 1.5 A
Outp. leakage current: max. 350 A
Output voltage if output is reset: max. 1,5 V
Duration of the test signal: max. 200 s
Space requirement: 4 TE
Operating data: 5 V DC: 110 mA, 24 V DC: 180 mA in add. load
Quantity available: 1
Warranty: 12 months.
Lead time: 1-2 working days.
Terms of payment:T/T and Western Union.
Courier partners: DHL, UPS, TNT, FedEx and EMS.
Technical specification, manuals and data sheets
