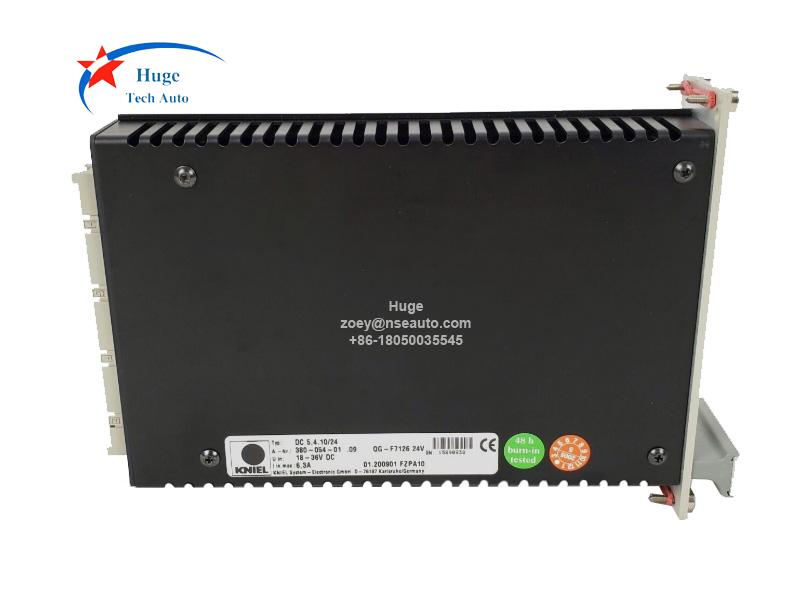

HIMA Power supply module F7126
Description:
The module supplies automation systems with 5 V DC from a main supply of 24 V DC. It is a DC/DC converter with safe isolation between input and output voltage. The module is equipped with overvoltage protection and current limitation. The output is short circuit proof.

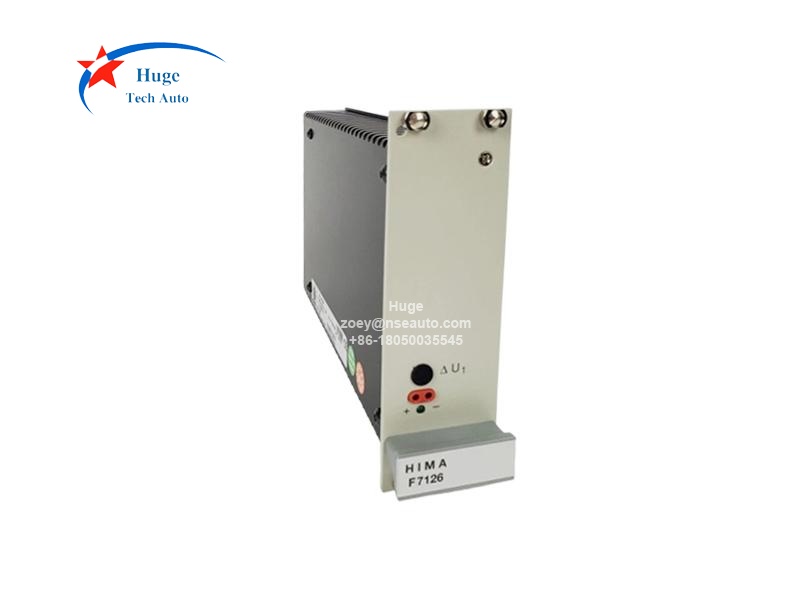

On the front plate there are a test socket and a potentiometer for adjusting the output voltage. To avoid unbalanced load with redundant use of the power supply F 7126 the difference between their output voltages may not be more than
0.025 V.

Specifications:
Operating data: 24 V DC, -15 ... +20 %, rpp < 15%
Primary fuse: 6.3 A träge
Output voltage: 5 V DC ± 0.5V adjustable without steps
factory adjustment: 5.4 V DC ± 0.025 V
Output current: 10 A
Current limitation: approx. 13 A
Overvoltage protection: set to 6.5 V/ ± 0.5V
Efficiency rate: ≥ 77%
Interference: Limit class B
Space requirement: 8 TE
