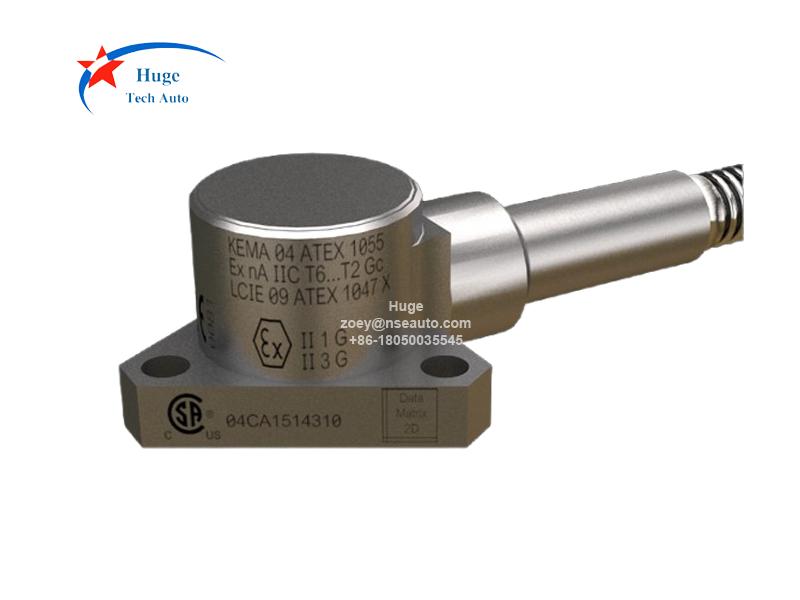

CA280 144-280-000-125 piezoelectric accelerometer with 6 m integral cable
Description:
CA280 144-280-000-125 is designed as a piezoelectric accelerometer for the long-term measurement of vibration in extreme environments.

There is no input power requirements for CA280. It is works with IPC704/IPC707 external electronics conditioners, which convert CA280 charge-based signal into a current or a voltage signal.

There are different versions of CA280 to meet the onsite different needs.
(1) A sensor only, with the ordering number 144-280-000-015. This version compatible with EC222 or EC119.

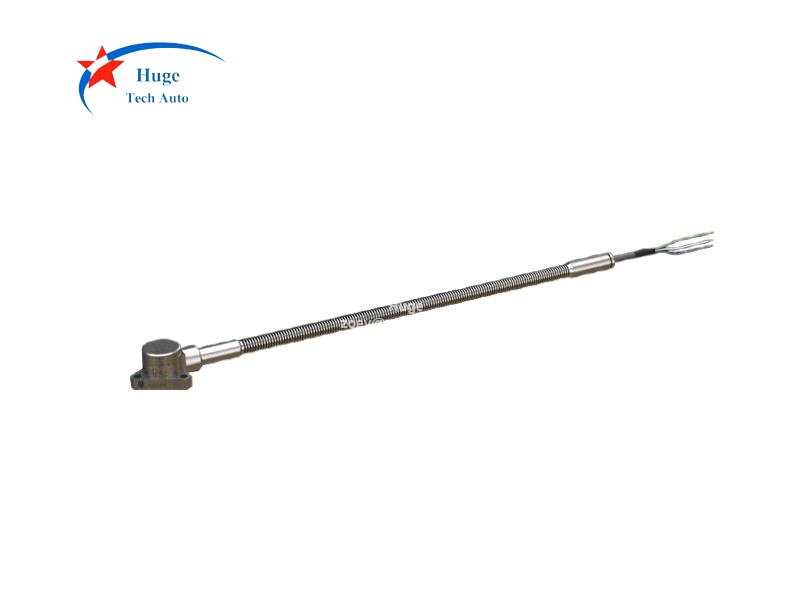

(2) Fitted with the various integral cable that is protected by a flexible stainless- steel protection hose.

Major Features:
▪ Safety-related applications
▪ A range of versions to meet different requirments
▪ Suitable to work in potentially explosvie or harzadous atmospheres

Specifications:
▪ Operating temperature: −60 to 260 °C
▪ Frequency response: 0.5 to 6000 Hz
▪ Sensitivity: 100 pC/g | 10.2 pC / m/s2
▪ Dynamic measurement range: 0.01 to 500 g | 0.0981 to 4905 m/s2

Application:
▪ Heavy duty and aero-derivative gas turbines
▪ Gearboxes
▪ Compressors
▪ Marine applications
