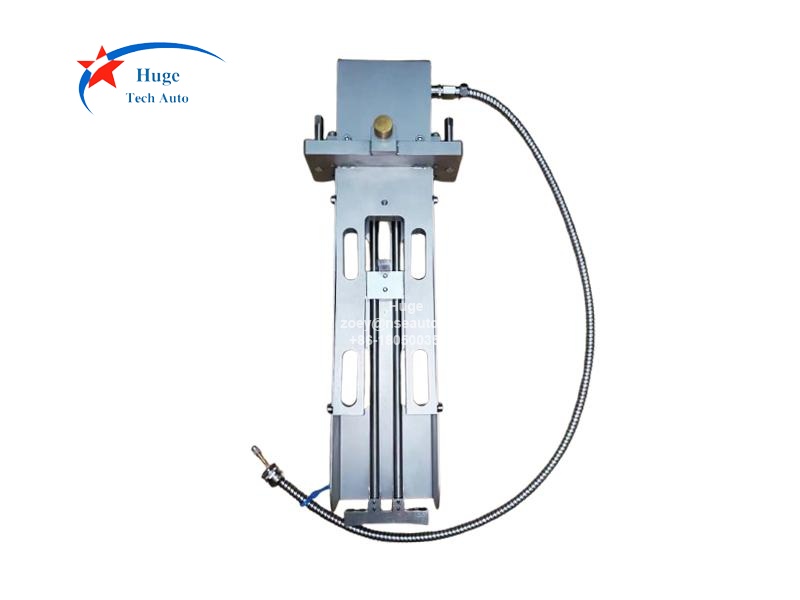

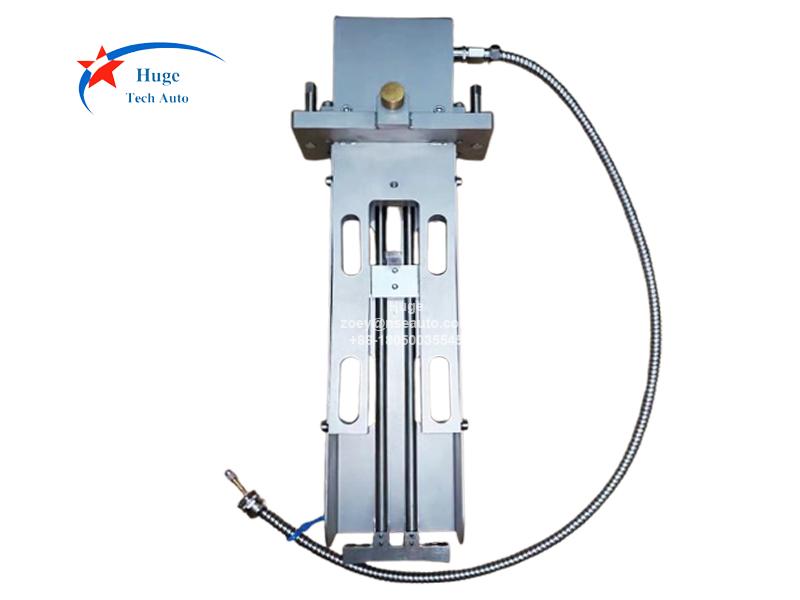

DP243 Pendulum Probe
Description:
DP243 is designed as a Pendulum Probe in the pendulum-type measuring system which based on the proximity measurement principle. Fitted with TQ 402 series displacement transducer in the pendulum head, it detects relative displacement of a target linked mechanically to the pendulum arm. Pendulums with redundant measurement devices are available.

Features:
▪ Non contacting measurement
▪ Built upon eddy current measuring principle with integrated TQ 402 sensors
▪ Ideal for sites unsuitable for direct eddy-current sensor
▪ Temperature range : up to +200 °C
▪ Wide measurable range
▪ Stable performance in adverse environments

Specifications:
Transducer input requirements: HF-power source by conditioner type IQS 450
Mounting: vertical ± 30° angle, head in up position
Temperature: up to +200°C
Air gap between foot and shaft collar: 1,0…1,5mm, max. 1.5 mm (S)
Collar width nominal: 7 mm (CO)
Material: stainless steel
Integral cable: diameter 3.6 mm FEP coaxial cable without protection

Ordering Information:
VMD-DP243-A-B-C-D-E-F-G-H-I
Measuring Range ( A )
shaft collar diameter ( B ) mm
Length ( C ) = X3
Cable length ( D )
Extension Cable ( E )
Protection Cable ( F )
System Length ( G )
Direction ( H )
Probe ( I )
