Piezoelectric accelerometer with 6m cables CE311 444-311-000-023
Piezoelectric accelerometer with 6m cables CE311 444-311-000-023
Brand:
UngroupedItem NO.:
CE311 444-311-000-023Order(MOQ):
1 PCPayment:
T/TMarket Price:
999Price Range:
5 - 10Price Range:
1 - 5Product Origin:
SwitzerlandColor:
Depends on materialShipping Port:
XIAMENLead Time：
IN STOCKWarranty:
1 Year

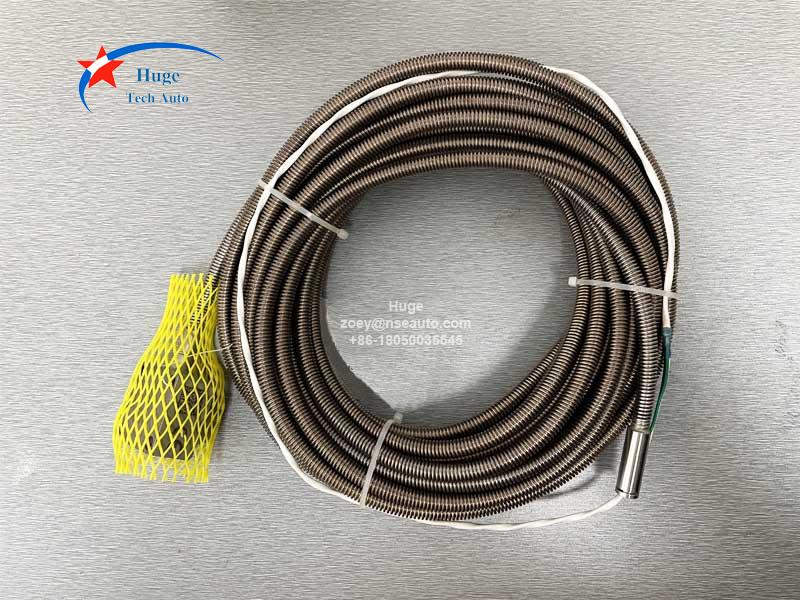

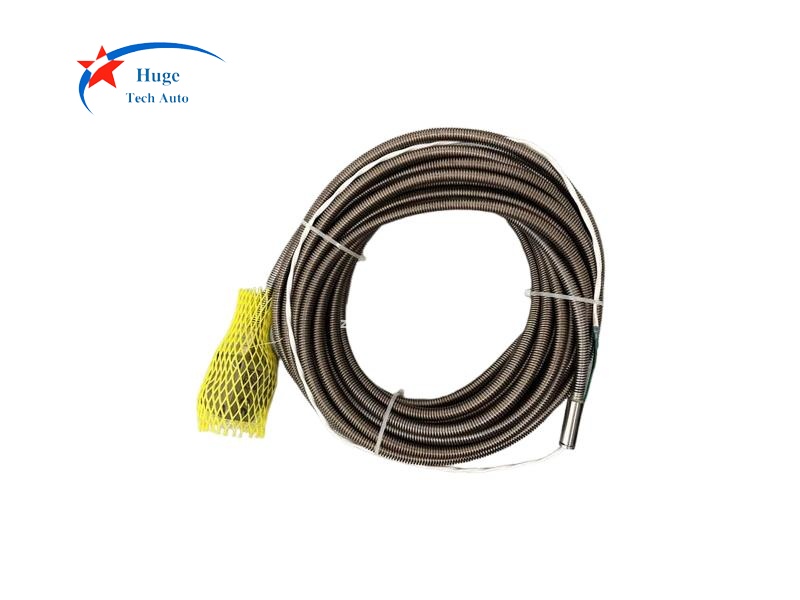

CE311 444-311-000-023 piezoelectric accelerometer with 6m cables
Description:
CE311 444-311-000-023 is designed as a piezoelectric accelerometer to monitor and protect the machine. As a 50μA/g sensitive, temperature range from -55 ℃ to 125℃ piezoelectric acceleromete, CE311 features protection against oil, water, steam and other potential contaminants, making it suitable for the harsh industrial area, such as heavy duty gas and steam turbines.
Built with electronics, CE311 provides the required singal processing, the external signal conditioner is no longer needed anymore. Meanwhile, the electronics carry out charge-current signal conversion during operation, that resulting in the long distences signal trasfer available.
Features:
▪ Different versions with various integral cable length
▪ Oil-proof, water-proof and contamination-resistant
▪ Long distance trasmission
▪ Suitable for hazardous enviornment
▪ Comliance with EX
Applications:

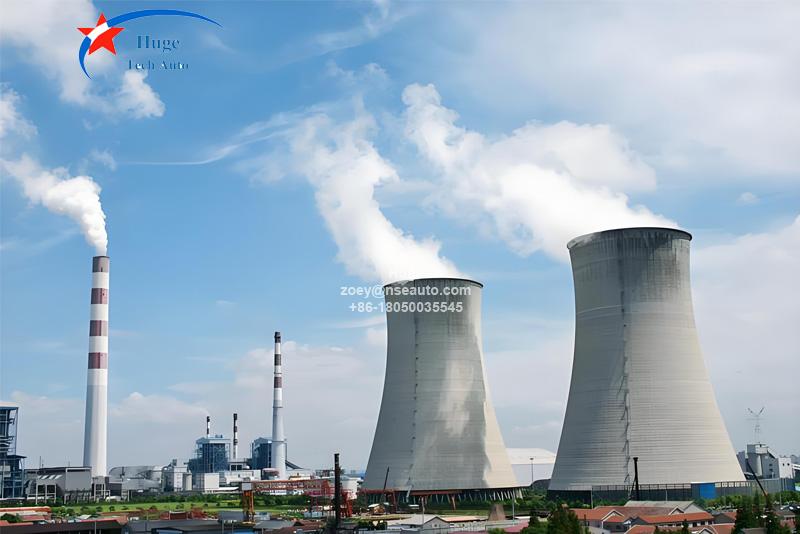

▪ Heavy-duty gas turbine and steam turbine units
▪ Heavy industrial gas & steam turbine sets
▪ Gas turbine power plants
▪ Heavy duty gas and steam turbines
Ordering Information:
|
Type |
Version |
Part number |
Designation |
|
CE311 |
Standard version |
444-311-000-013 |
With 3 m integral cable |
|
444-311-000-023 |
With 6 m integral cable |
||
|
444-311-000-033 |
With 12 m integral cable |
||
|
444-311-000-043 |
With 20 m integral cable |
||
|
Ex version |
444-311-000-113 |
Ex version with 3 m integral cable |
|
|
444-311-000-123 |
Ex version with 6 m integral cable |
