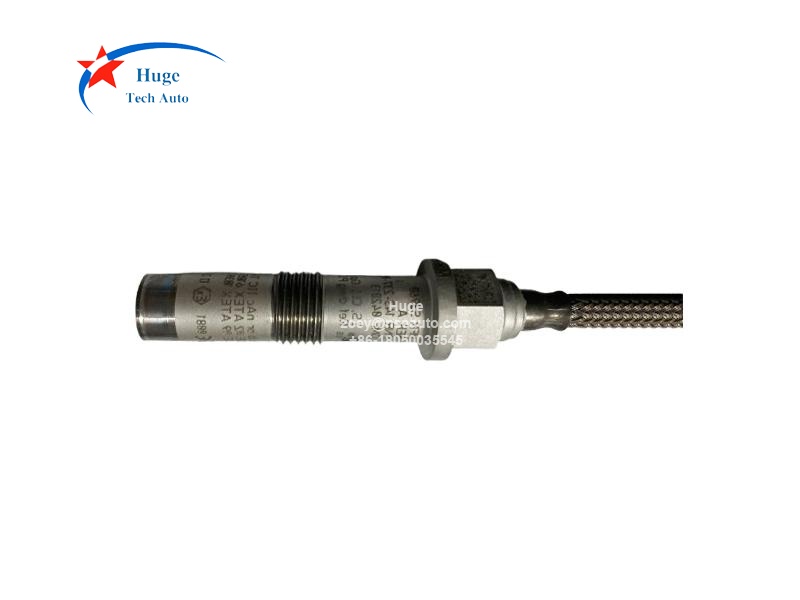

CP237 143-237-000-012 Dynamic Pressure Sensor
Description:
The CP237 143-237-000-012 Dynamic Pressure Sensor is designed for the combustion monitoring of gas turbines. CP237 can be used in the hazardous area. It is in compression mode uses artificial piezoelectric materials, making it a highly stable instrument. As the upgarde Dynamic Pressure Sensor to replace of the CP231 since the year of 2007.

With a sensitivity of 750 pc/bar, CP237 143-237-000-012 detects even minor pressure fluctuations. Operating from -55°C to 520°C, it maintains consistent performance in high-heat settings like gas turbine combustors. Its 2 Hz to 10,000 Hz frequency response covers all dynamic pressure pulsations in typical industrial operations.

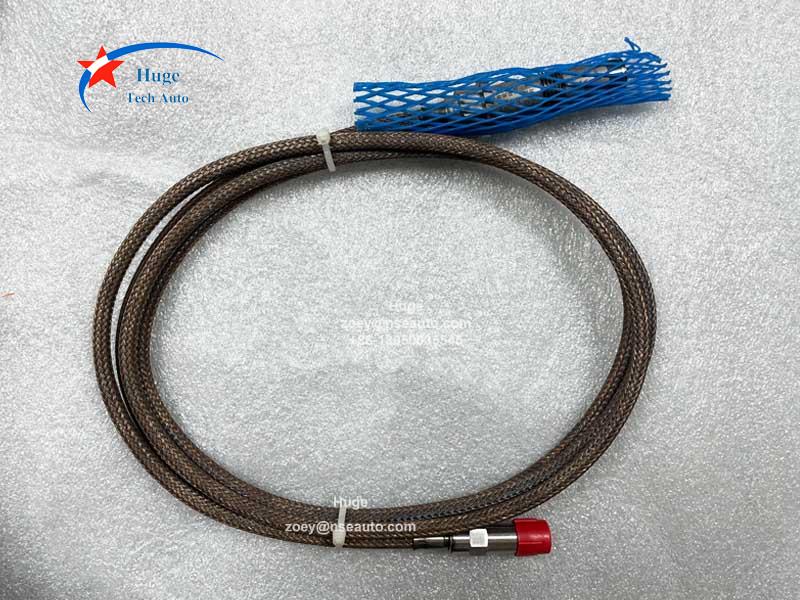

Certified for explosive atmospheres (Ex ia, Ex ib, Ex na) and meeting strict safety standards, CP237 143-237-000-012 features an integral mineral-insulated (MI) cable with high-temperature connectors for reliable signal transmission. Its compact 11 mm x 36.6 mm design (37 g) enables easy installation in space-limited areas.

It offers a 0.00005 bar to 5 bar dynamic measurement range and ≤0.15 pc/g acceleration sensitivity (10 Hz to 2.5 kHz), delivering consistent results for monitoring and testing. Hermetically sealed, it resists corrosion and ensures long-term reliability.

Ideal for gas turbine combustion monitoring and other extreme industrial tasks, CP237 143-237-000-012 is a dependable solution for high-performance dynamic pressure measurement.
