EC319 922-319-000-002 Cable Assembly

Cable Assembly EC319 922-319-000-002 Splashproof version

Brand:
Ungrouped
Item NO.:
EC319 922-319-000-002
Order(MOQ):
1 PC
Payment:
T/T
Product Origin:
Switzerland
Shipping Port:
XIAMEN
Lead Time：
IN STOCK
Weight：
0.2kg
Warranty:
1 Year

Product Detail

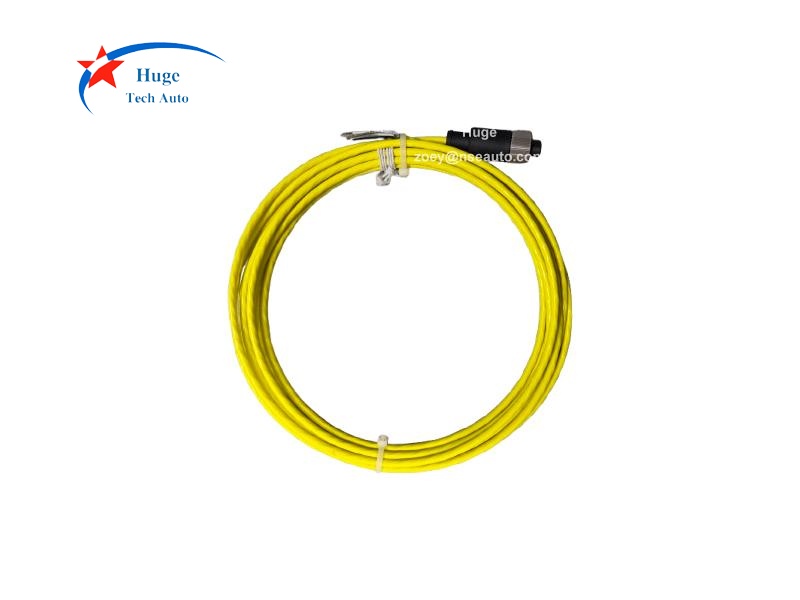

EC319 922-319-000-002 Cable Assembly
Description:
EC319 922-319-000-002 is a high-quality, reliable cable assembly in the vibration measurement system. It is compatible with CE110I, CE680M511, CE680M611 and PV102 sensors, delivering stable signal transmission for the industrial vibration measurement setups.
EC319 922-319-000-002 with a 2-pin MIL-C/DTL-5015 type connector, 2-wire RADOX ® cable. The diameter is Ø 4.8 mm.

Major Features:
1. Compatible with piezoelectric vibration accelerometers
2. K219 cable with RADOX® insulation, diameter is 4.8 mm
Constructed with K219 core cable wrapped in premium RADOX® insulation, the overall cable diameter reaches Ø4.8 mm, balancing flexible routing and durable insulation performance for long-term site use.
3. 2-wire shielded cable design for anti-interference signal output

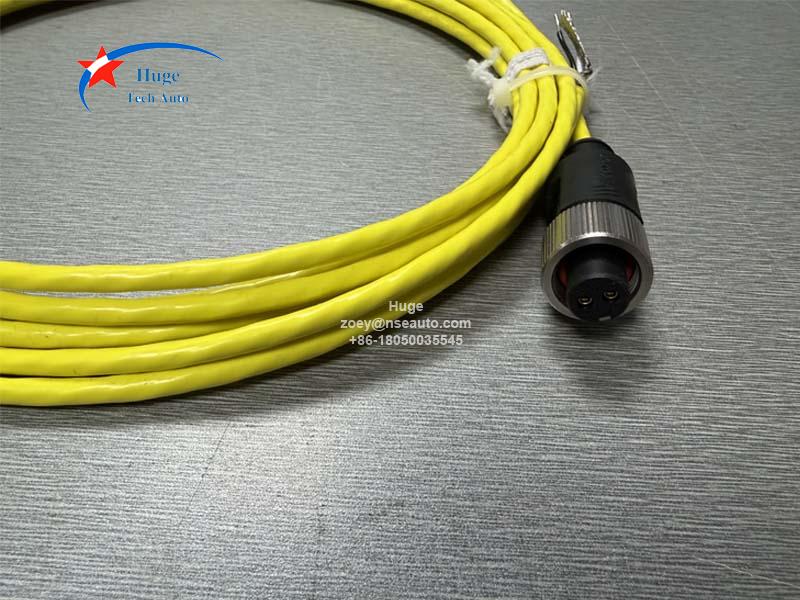

4. MS3456L threaded connector to flying leads wiring layout
One end adopts standard MS3456L threaded metal connector for secure locking connection with sensors, while the other side comes with open flying leads for easy wiring to signal conditioners and monitoring modules.
5. Leaktight flexible protective hose
