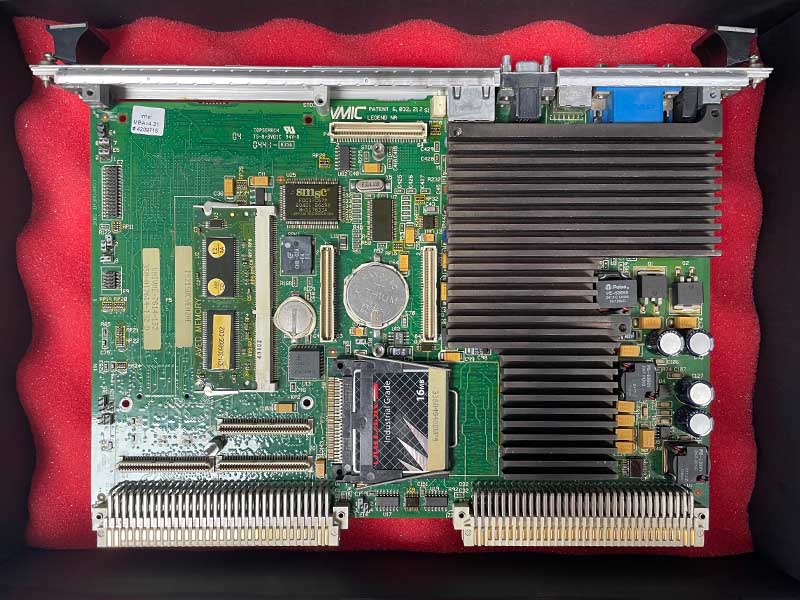

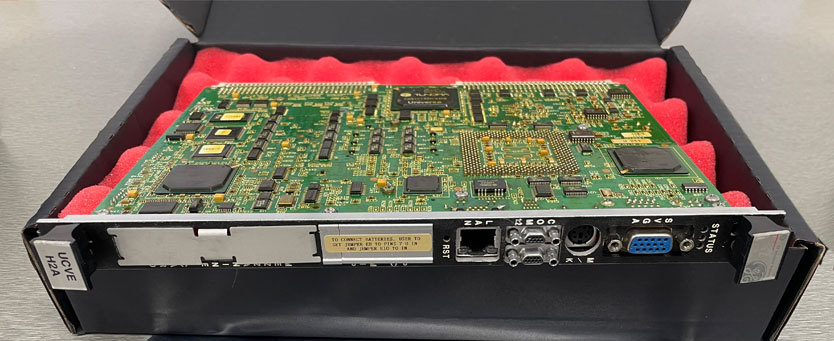

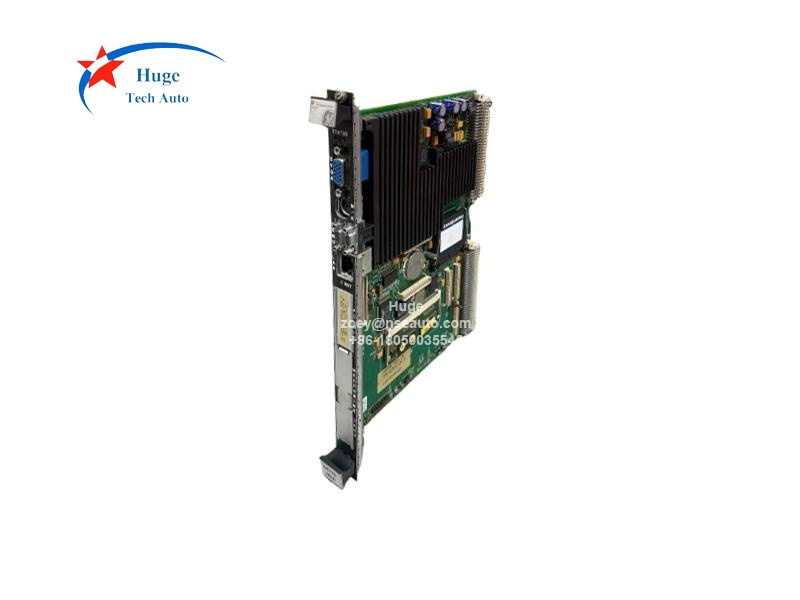

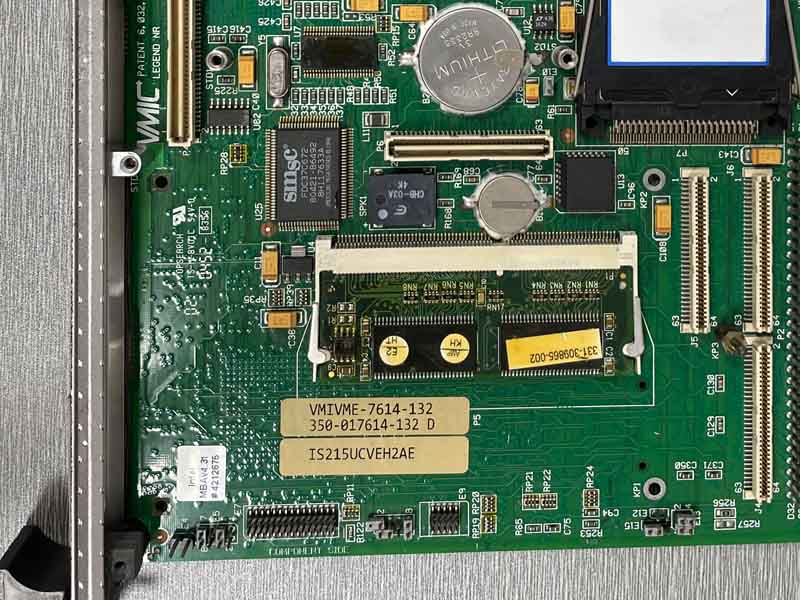

IS215UCVEH2AE is GE Mark VI VME CPU card. As a UCVE controller, IS215UCVEH2AE is the standard Mark Vl controller.

IS215UCVEH2A is 6U high, a single-slot board using a 300 MHz Intel Celeron processor with l6 Mb of flash memory and 32 Mb ofDRAM. A single 10BaseT (RJ-45) Ethernet port provides connectivity to the UDH.

· RS-232C connection for communication with DCS systems using the COM2port (such as Modbus slave).

Q&A:
1. What are the key hardware specifications of the IS215UCVEH2AE?
IS215UCVEH2AE is equipped with an Intel Celeron 300 MHz microprocessor, 32 MB DRAM, a 16 or 128 MB Compact Flash Module, 128 KB L2 cache, and battery-backed SRAM with 8K allocated as NVRAM for controller functions.
2. What are the key installation requirements of the IS215UCVEH2AE?
The IS215UCVEH2AE, as a control module, minimally includes the controller and a VCMI. Three rack types are compatible: the GE Fanuc integrator's rack (shorter, for stand-alone modules with remote I/O), Mark VI racks (longer, for local or remote I/O), and Bus Master Controller racks. A cooling fan must be mounted either above or below the IS215UCVEH2AE controller. When using the GE Fanuc integrator's rack, a VDSK board is additionally required to supply fan power and enable rack identification via an ID plug.
3. Can the IS215UCVEH2AE repalce the earlier version controller?
Yes, it can. But the backplane need to be upgrade.
4. What's the payment term?
Our payment term is T/T in advance.
