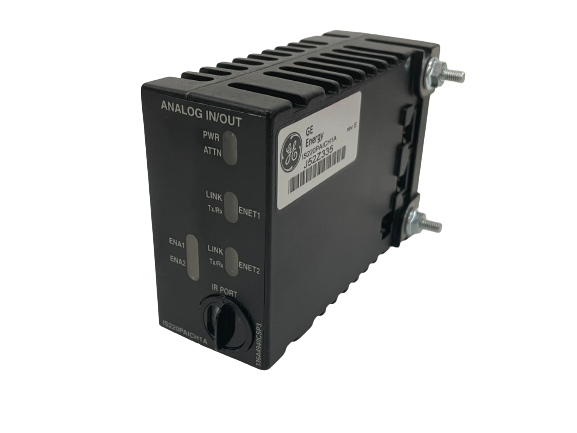

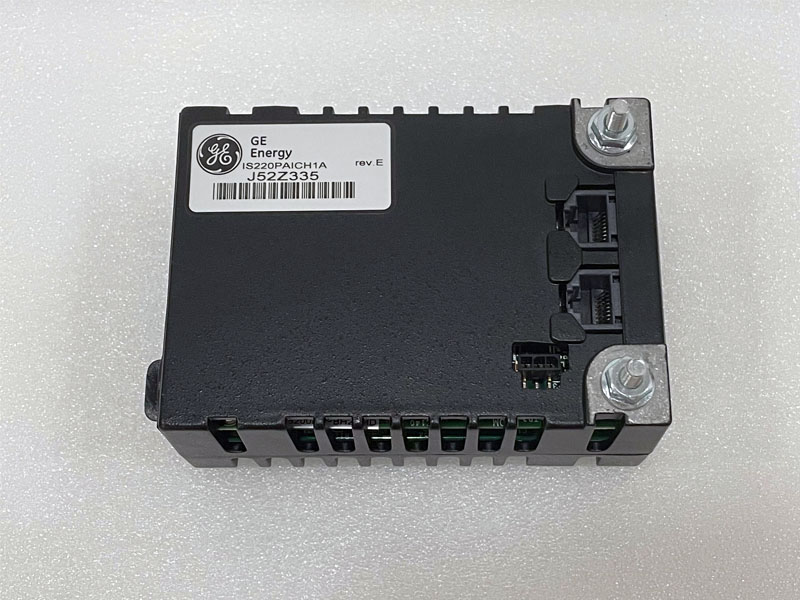

GE IS220PAICH1A Analog In/Out Basic Pack
Description：

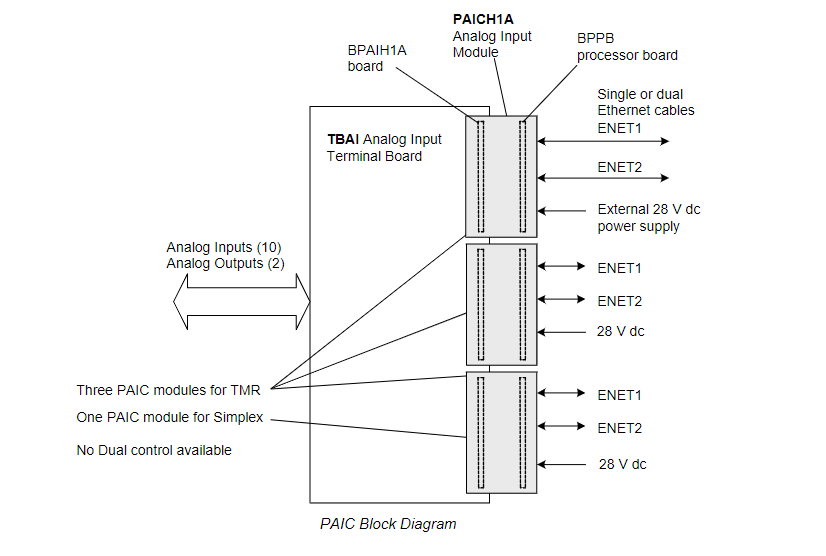

IS220PAICH1A is belong to GE MKVIe series Analog In/Out Basic Pack. It can be used with terminal boards (accessories) IS200STAIH1A, IS200STAIH2A, or IS200TBAIH1C. The Analog Input/Output (PAIC) pack provides the electrical interface between oneor two I/O Ethernet networks and an analog input terminal board. The packcontains a processor board common to all Mark* Vle distributed I/O packs and anacquisition board specific to the analog input function. The pack is capable ofhandling up to 10 analog nputs, the first eight of which can be configured as +5 Vor +10 V inputs, or 0-20 mA current loop inputs. The last two inputs may beconfigured as +1 mA or 0-20 mA current inputs. The load terminal resistors forcurrent loop inputs are located on the terminal board and voltage is sensed acrossthese resistors by the PAIC. The PAICH also includes support for two 0-20 mAcurrent loop outputs. The PAICH2 includes extra hardware to support 0-200 mA current on the first output.

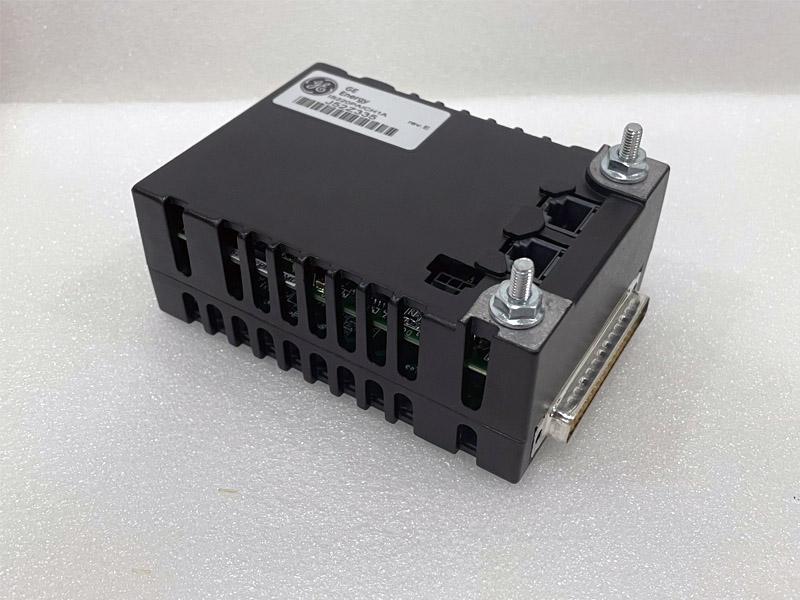

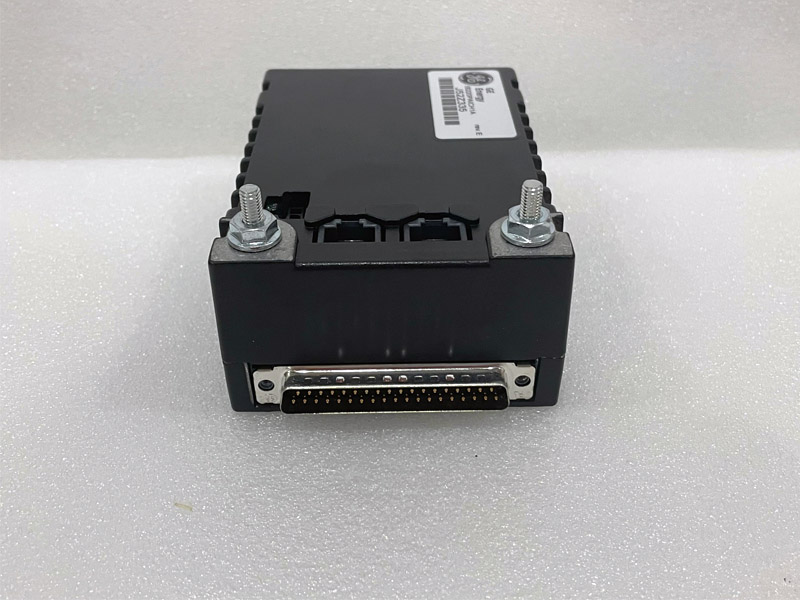

Input to the pack is through dual RJ45 Ethernet connectors and a three-pin powerinput. Output is through a DC-37 pin connector that connects directly with theassociated terminal board connector. Visual diagnostics are prowided throughndicator LEDs. and local diagnostic serial communications are possible through annfrared port.
