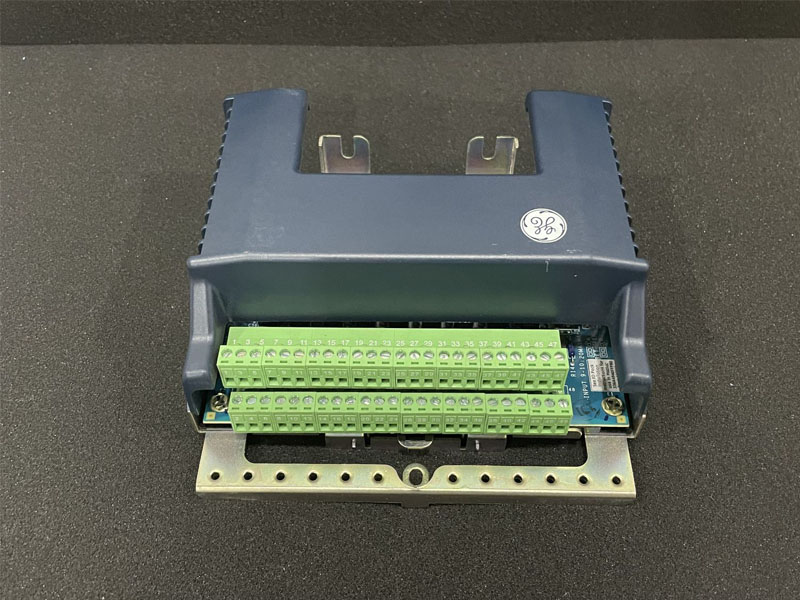

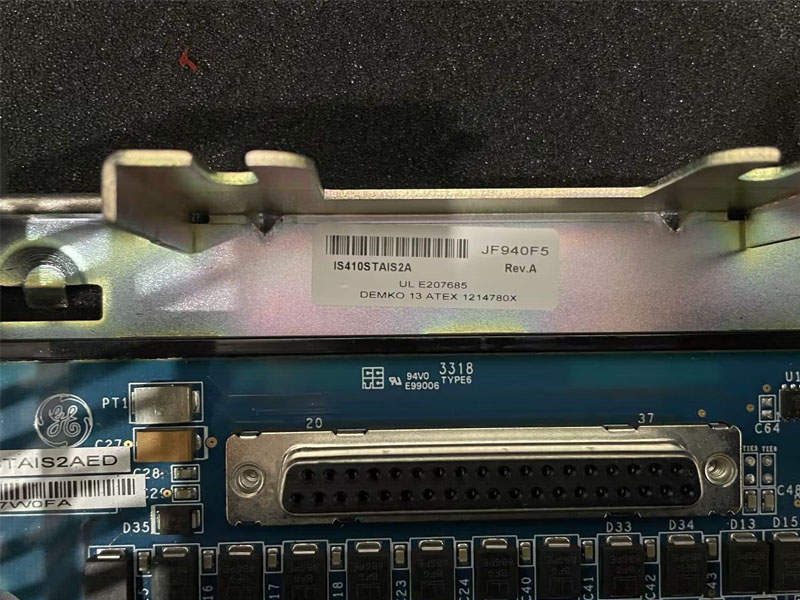

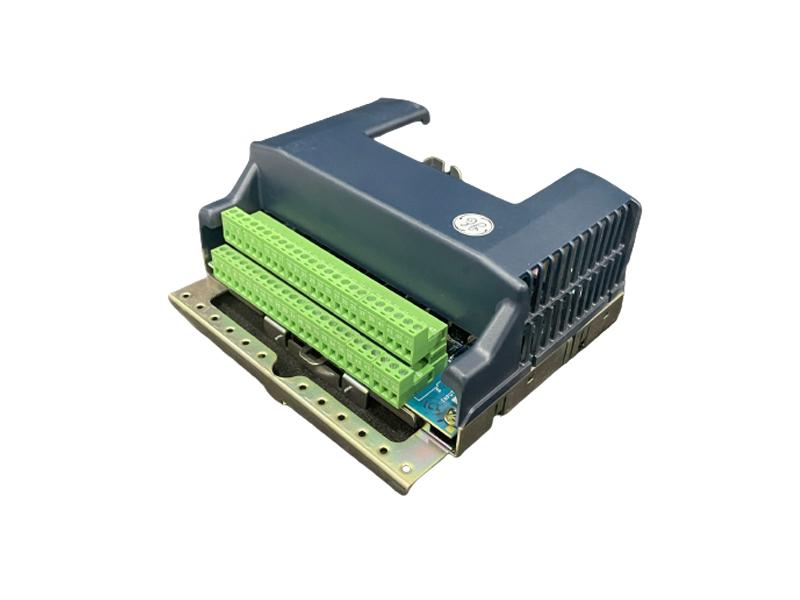

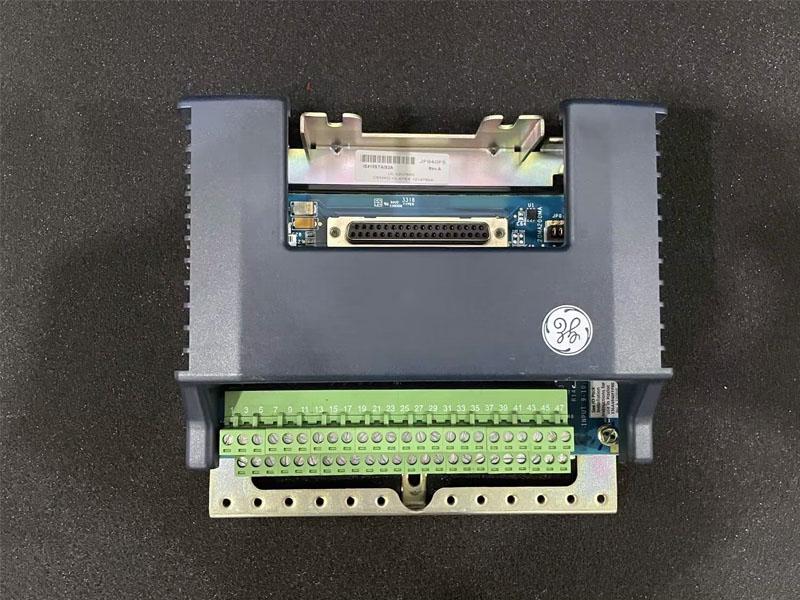

GE IS410STAIS2A Simplex Analog I/O Terminal Board
Description:
IS410STAIS2A is belong to Ge Simplex Analog I/O terminal board. It is used with IS420YAICS1B. The Simplex Analog Input (STAI) terminal board is a compact analog input terminal board that accepts 10 analog inputs andtwo analog outputs, and connects to the pack. The 10 analog inputs accommodate two-wire, three-wire, four-wire, orexternally powered transmitters. The two analog outputs are 0-20 mA. High-density Euro style box terminal blocks are used.An on-board ID chip identifies the board to the pack for system diagnostic purposes.
