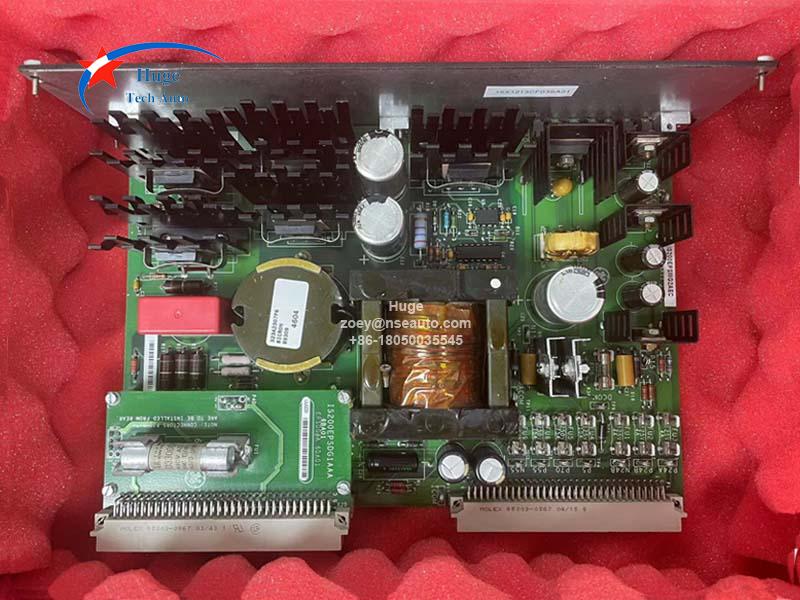

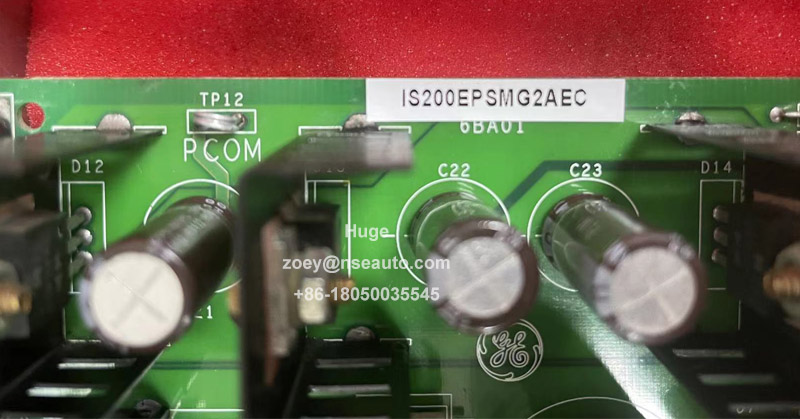

GE IS200EPSMG2A Exciter Power Supply Module
Description：
IS200EPSMG2A is GE EX2100 system Exciter Power Supply Module. IS200EPSMG2A converts 125 V dc from the EPDM into the voltages required for the control system. There are three independent power supplies that supply power to each of the controllers M1, M2, and C. These supplies are located in the power supply module mounted below the control rack in the control cabinet.
The EPSM supplies +5 V dc, ±15 V dc, and +24 V dc to the controller. Power is also supplied to modules external to the control rack as follows:
•  ±24 V dc to power the EDEX de-excitation module, crowbar module, EGDM, and EDCF
•  Isolated +70 V dc for contact wetting to the EXTB and ECTB boards
There are 3 kind of power supply boards of EX2100 Exciters:
Exciter Power Distribution Module - IS200EPDM
Exciter Power Backplane - IS200EPBP
Exciter Power Supply Module-IS200EPSMG2A

Warranty: 12 months.
Lead time: 1-2 working days.
Terms of payment: T/T and Western Union.
Courier partners: DHL, UPS, TNT, FedEx and EMS.
