General Electric IS200HFPAG2ADC

General Electric IS200HFPAG2ADC High Frequency Ac/Fan Power Supply Board

  • Brand:

    General Electric PLC
  • Item NO.:

    GE IS200HFPAG2A
  • Order(MOQ):

    1
  • Payment:

    T/T
  • Market Price:

    999
  • Price Range:

    1 - 5
  • Product Origin:

    USA
  • Color:

    Depends on material
  • Shipping Port:

    XIAMEN
  • Lead Time:

    IN STOCK
  • Warranty:

    1 Year
Product Detail

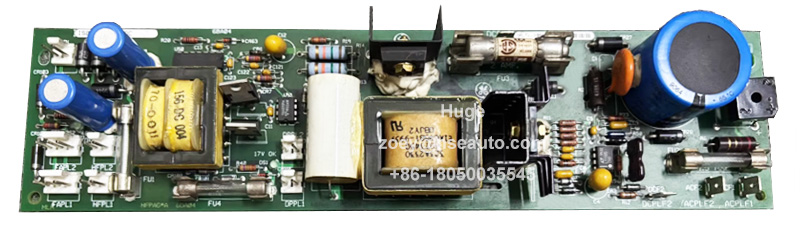

GE High Frequency Ac/Fan Power Supply Board IS200HFPAG2A
Description:
IS200HFPAG2A is a high-frequency AC/fan power supply board manufactured by GE. It accepts either AC or DC input voltage and converts it into the following output voltages:

  • 48 V AC (G1) / 52 V AC (G2) square wave
  • 48 V DC (G1) / 52 V DC (G2)
  • Isolated 17.7 V AC (G1) / 19.1 V AC (G2) square wave, which is used to supply power to circuitry isolated from high-voltage systems.

The total output load for either HFPA G1 or G2 boards must not exceed 90 VA. The IS200HFPAG2A is fitted with four stab-on connectors for voltage input and eight plug connectors for voltage output. Two LEDs are included to indicate the status of the voltage outputs, and four fuses are also integrated to provide circuitry protection.
