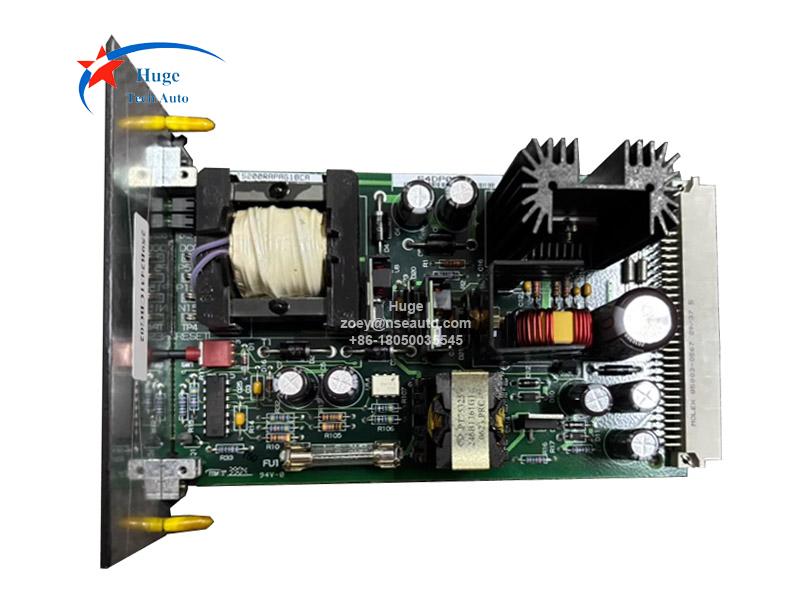

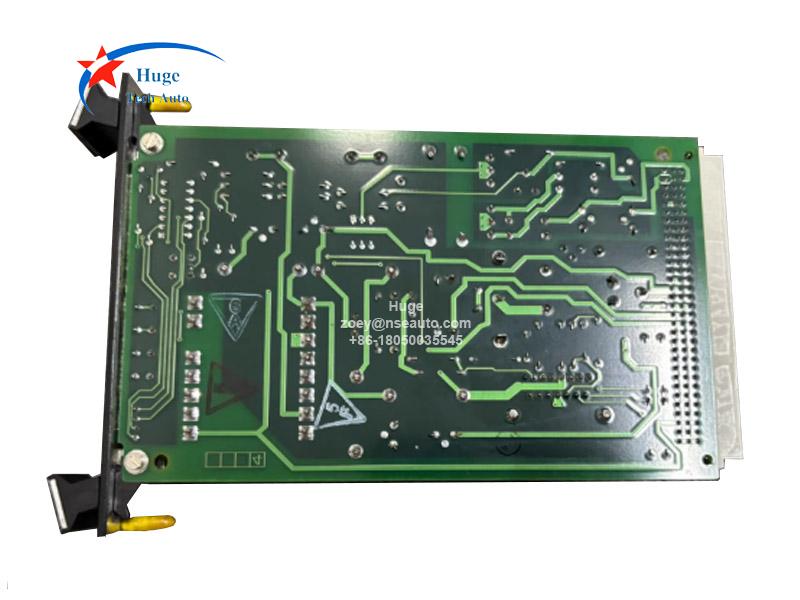

GE Rack Power Supply Board IS200RAPAG1B
Description:
IS200RAPAG1B is GE Mark VI Rack Power Supply Board. IS200RAPAG1B accepts a 48 V, 25 kHz square wave input and provides the following:
▪ The dc control voltages required by other boards in the Innovation Series board rack (through the P1 connector).
▪ The "Power ON" and "Master RESET" fnctions for the control.

IS200RAPAG1B has 2 LED indicatiors and 4 testpoint in the front panel, which can provide the diagnostic information to the user. IS200RAPAG1B is mounted in the Innovation Series board rack. Besides, it includeds a parallel-style bus host processor. All standard bus signals are interfaced through the P1 connector.
