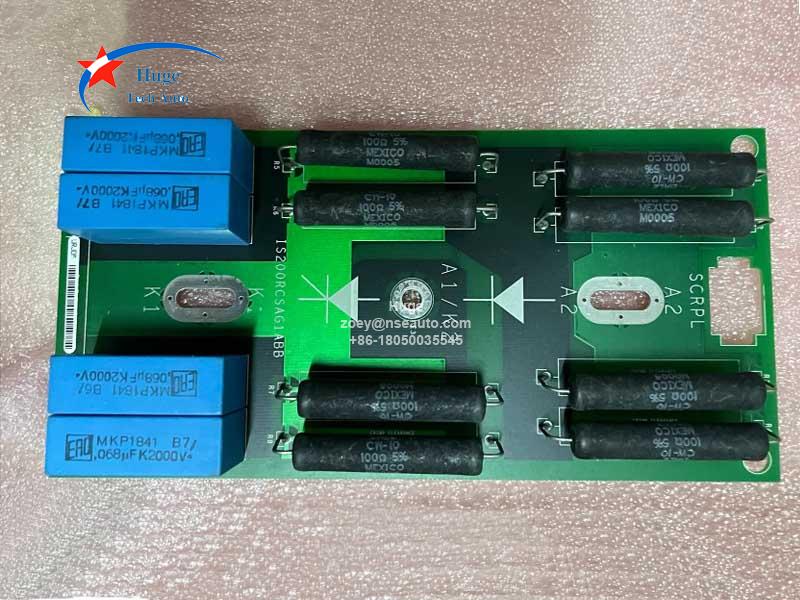

GE IS200RCSAG1A 1800/1000 Frame RC Snubber Board
Desciption:
IS200RCSAG1A 1800/1000 Frame RC Snubber Board (RCSA) provides the snubber circuitry for the SCR/diode modules in 1800 or 1000 Innovation Series non-regenerative sources. There are three RCSA boards (one per phase) in each non-regenerative source and they are mounted directly on the power devices.

During commutation, the RCSA board protects the SCR/diode modules from voltage over shoots from one device to another. The board also isolates the gate drive circuit from unwanted noise.

Two sets of SCR (cathode) and diode (anode) connections are provided on each board to accommodate the physical layout differences between the 1800 and 1000 frame units. The RCSA board can be used with ac inputs up to 660 VLL rms.

IS200RCSAG1A board has no fuses, test points, LED indicators, or adjustable hardware. It mounts directly to the SCR/diode module for each phase and is held in place by these connections. Four holes are located at the corners of the board and are used to secure the board with wire ties. A cutout for the SCR gate and cathode connector (labeled SCRPL)is also provided.
