GE Simplex RTD Input IS200SRTDH2A
Description:

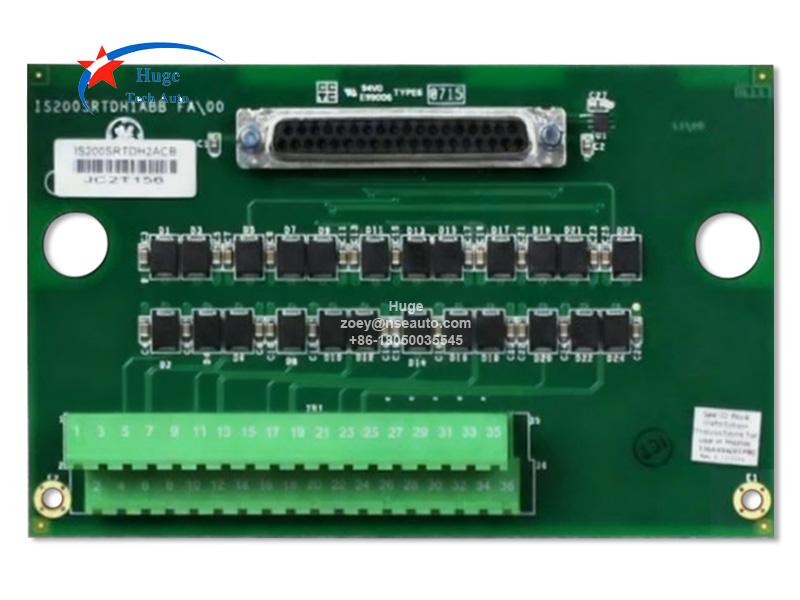

IS200SRTDH2A is designed as GE Mark VI Simplex Resistance Temperature Device (RTD) Input (SRTD) terminal board. It is a compact RTD terminal board, can work with IS220PRTDH1A module. DIN-rail or flat mounting all can be installed the IS200SRTDH2A. An on-board ID chip identifies the board to the I/O processor for system diagnostic purposes. IS200SRTDH2A inputs are automatically calibrated using the filtered calibration source and null voltages.

Specifications:
Number of channels: 8 channels per terminal board
RTD types: 10, 100, and 200 Ω platinum, 10 Ω copper, 120 Ω nickel
Span: 0.3532 to 4.054 V
Maximum lead resistance: 15 Ω maximum two-way cable resistance
Fault detection: High/low (hardware) limit check, High/low (software) system limit check, Incorrect ID chip.

Q&A:
1. What's the difference between IS200SRTDH1A and IS200SRTDH2A?
IS200SRTDH1A has a permanently mounted terminal block with 36 terminals, but IS200SRTDH2A has a right-angle header accepting a range of commercially available pluggable terminal blocks, with a total of 36 terminals.
