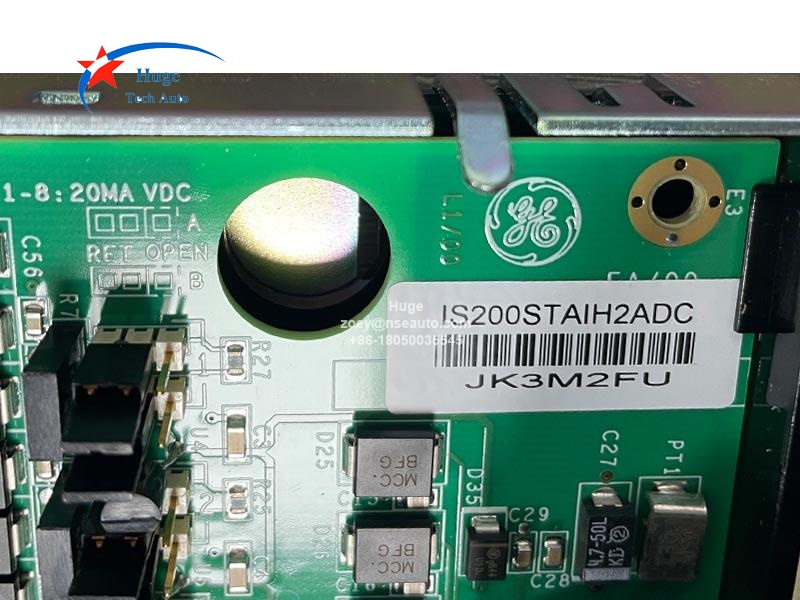

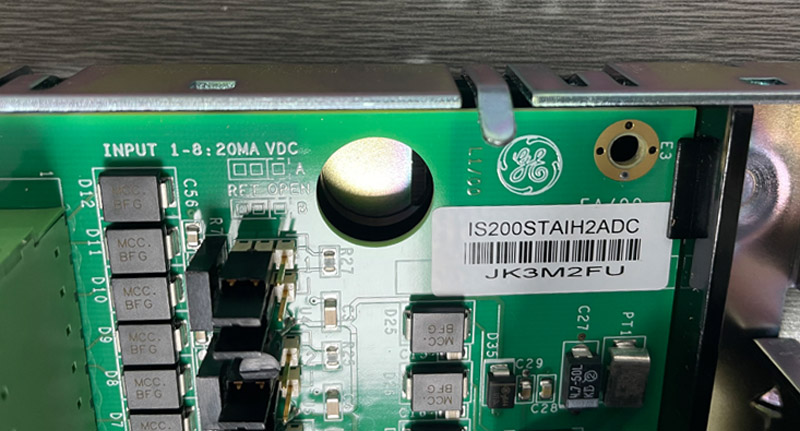

GE IS200STAIH2A Simplex Analog Input Terminal Board
Description:
IS200STAIH2A is GE MKVIe series Simplex Analog Input Terminal Board. IS200STAIH2A is a compact analog input terminal board that accepts 10 analog inputs and two analog outputs, and connects to the pack. The 10 analog inputs accommodate two-wire, three-wire, four-wire, or externally powered transmitters. The two analog outputs are 0-20 mA. Only with the Mark VIe IS220PAICH2B, one analog output jumper can be configured to 0-200 mA current. High-density Euro style box terminal blocks are used. An on-board ID chip identifies the board to the pack for system diagnostic purposes.
24 V dc power is available on the terminal board for all the transmitters (transducers). There is a choice of current or voltage inputs using jumpers. One of the two analog output circuits is 4-20 mA, and the other can be jumper configured for 4-20 mA or 0-200 mA (only with the Mark VIe PAICH2).

Specifications:
Al types supported: Inputs 1 to 8: +5 V dc, £10 V dc, or 4-20 mA
                                                    Inputs 9 to 10: 4-20 mA or +1 mA
Input accuracy: +0.1% of full scale over the full operating temperature range
Maximum lead resistance: Maximum lead resistance
Outputs: 24 V dc outputs rated at 21 mA each
Load on output currents: 800 Q max burden for 4-20 mA output
                                       Only with Mark Vle PAICH2: 50 O max burden for 200 mA output
Dimensions: 15.9 cm high x 10.2 cm wide
Technology: Surface mount

Q&A:
1. How to install IS200STAIH2A?
The IS200STAIH2A plus a plastic insulator mounts on a sheet metal carrier that then mounts on a DIN-rail. Optionally, IS200STAIH2A plus insulator mounts on a sheet metal assembly and then bolts directly to a cabinet. There are three types of terminals available as follows:
• STAI_1A has a permanently mounted Euro-style terminal block with 48 terminals.
• STAI_2A has a right angle header accepting a range of commercially available pluggable Euro-style terminal blocks, with a total of 48 terminals.
• STAI_3A does not have any terminal block, allowing for field wiring to be directly soldered to the board.
2. How many the number os channels of IS200STAIH2A?
12 channels with 10 Analog Inputs (Al) and 2 Analog Outputs (AO)
