GE Simplex Discrete Input/Output Terminal Board IS200TDBSH2A
Description:

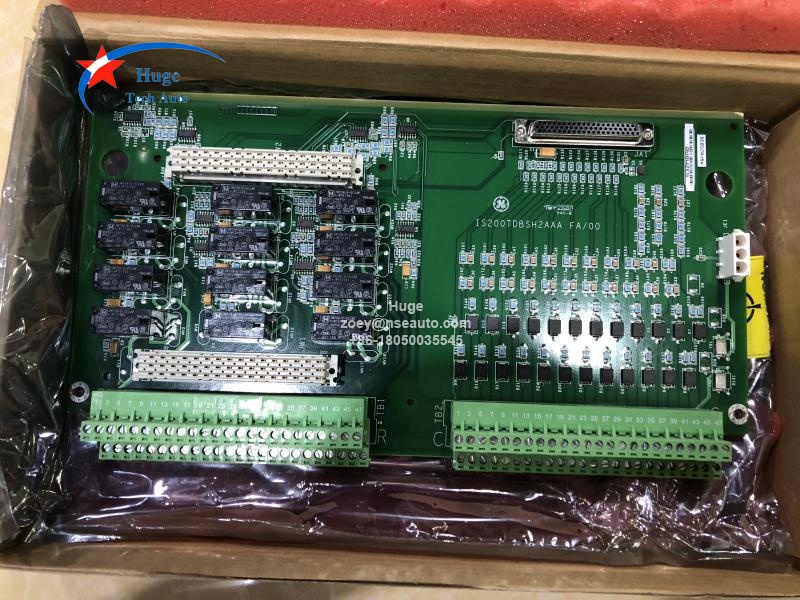

IS200TDBSH2A is GE Mark VI Simplex Discrete Input/Output Terminal Board. It is designed for DIN-rail or flat mounting. IS200TDBSH2A accepts 24 group isolated contact inputs that are supplied with a nominal 24, 48, or 125 V dc wetting voltage from an external source. The contact inputs have noise suppression to protect against surge and high-frequency noise.
IS200TDBSH2A use with GE Mark VIe PDIO I/O pack. PDIO I/O pack pack plugs into the D-type connector and communicates with the controller over Ethernet. A single connection point for PDIO is provided with one or two
network connections possible from PDIO to the controllers.

Q&A:
1. What's the difference between IS200TDBSH2A and IS200TDBSH6A?
The wetting voltage is different,
IS200TDBSH2A is Nominal 24 V dc, floating, ranging from 16 to 32 V dc,
IS200TDBSH6A is Nominal 125 V dc, floating, ranging from 100 to 145 V dc
2. How to install the IS200TDBSH2A?
IS200TDBSH2A plus a plastic insulator mounts on a sheet metal carrier that then mounts on a DIN rail. Optionally the TDBS plus insulator mounts on a sheet metal assembly that then bolts in a cabinet.
