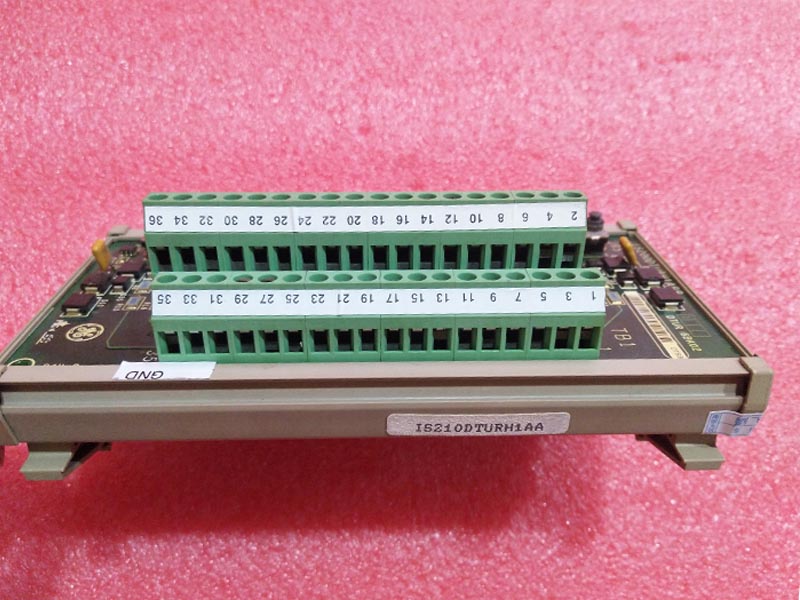

GE IS210DTURH1A Turbine Simplex Terminal Board
Description:
IS210DTURH1A is GE assembly part number, including IS200DTURH1A and a plastic mounting holder.

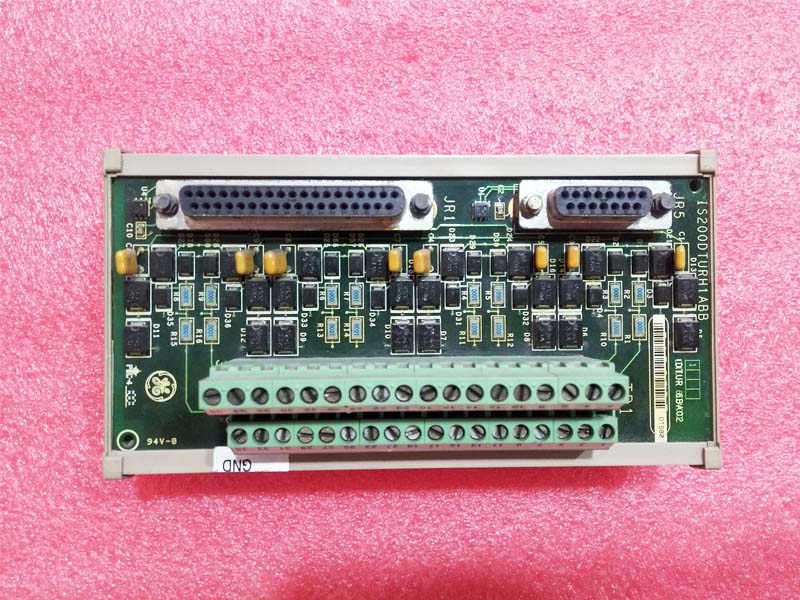

The DTUR board is a compact pulse-rate terminal board, designed for DIN-railmounting. The board accepts four passive pulse-rate transducers (magnetic pickupsfor speed and flow measurement. It connects to the VTUR processor board with a 37-pin cable and a 15-pin cable. These cables are identical to those used on thelarger TTUR terminal board. DTUR boards can be stacked vertically on the DIN-railto conserve cabinet space.VTUR only accommodates one DTUR board.

IS210DTURH1A has onboard pulse rate signal conditioning identical to that on the TTURHigh density Euro-Block type terminal blocks are permanently mounted to the boardwith two screws for the ground connection (SCOM). Two on-board ID chips identifthe connectors and board to VTUR for system diagnostic purposes.
