IQS450 204-450-000-002 A1-B11-H05-I0 Signal Conditioner

Signal Conditioner IQS450 204-450-000-002 A1-B31-H05-I0

  • Brand:

    Ungrouped
  • Item NO.:

    IQS450 204-450-000-002 A1-B31-H05-I0
  • Order(MOQ):

    1 PC
  • Payment:

    T/T
  • Product Origin:

    Switzerland
  • Shipping Port:

    XIAMEN
  • Warranty:

    1 Year
Product Detail

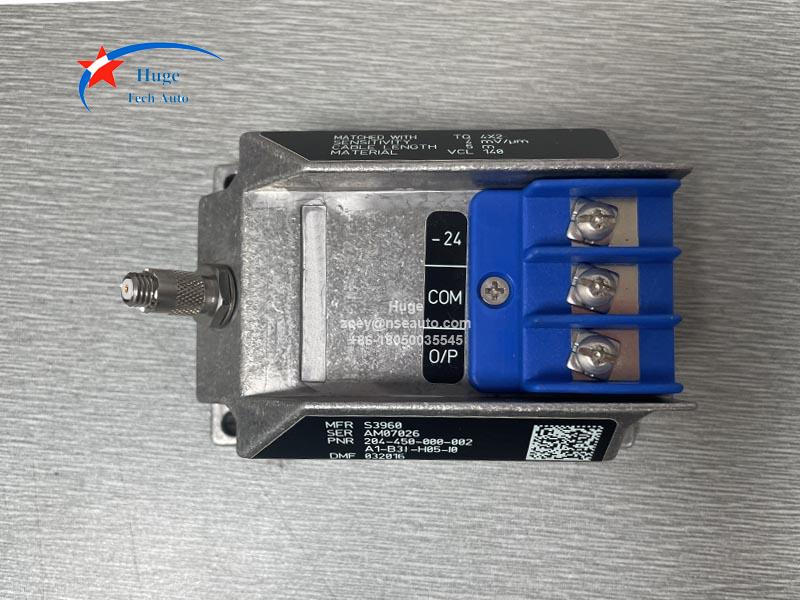

IQS450 204-450-000-002 A1-B31-H05-I0 non-contacting Signal Conditioner
Description:
IQS450 204-450-000-002 A1-B31-H05-I0 is the signal conditioner in the proximity measurement system. It operates in conjuction with a TQ403, each components is non-contacting and necessary in the proximity measurement system.

IQS450 204-450-000-002 A1-B31-H05-I0 with the sensitive 1.33 mV/μm, module only. It transforms the signal from a TQ403 proximity transducer into a current-modulated or voltage-modulated signal. The IQS450 signal conditioner contains a high-frequency modulator/demodulator that supplies a driving signal to the transducer. This generates the necessary electromagnetic field used to measure the gap. The conditioner circuitry is made of high-quality components and is mounted in an aluminium extrusion.

Features:
▪ Eddy-current non-contact measurement for shaft vibration & displacement
▪ Wide frequency response: DC to 20 kHz (-3 dB)
▪ Flexible output: 4–20 mA or voltage (short-circuit protected)
▪ High configurability: adjustable range, sensitivity, system length (0.5 m)
▪ Intrinsic safety: ATEX/IECEx certified for explosive atmospheres
▪ Temperature-compensated, robust aluminum housing
▪ Compatible with TQ4xx sensors

IQS450 204-450-000-002 is discontinued, replaced by IQS900 204-900-000-011.

Ordering Information:
204-450-000-002-AX-BXX-HXX-IX
A: Environment
1  Standard
2  Explosive Exi
3  Explosive Ex nA
B: Sensitivity
31  1.33 mV/μm
32   0.417μA/μm
H: Total system length
05  5 m
10  10m
I: Installation
0  Signal conditioner only
1  Signal conditioner assembled on MA130 mounting adaptor
IQS450 204-450-000-002
