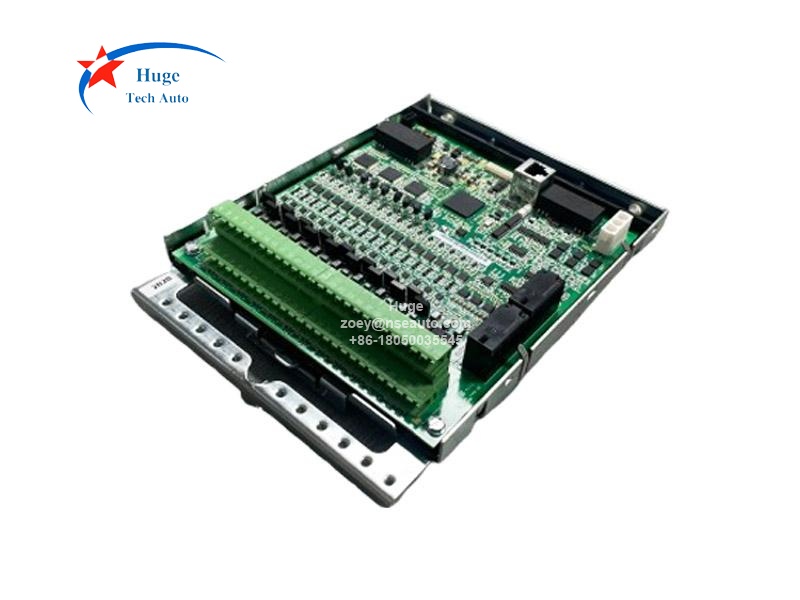

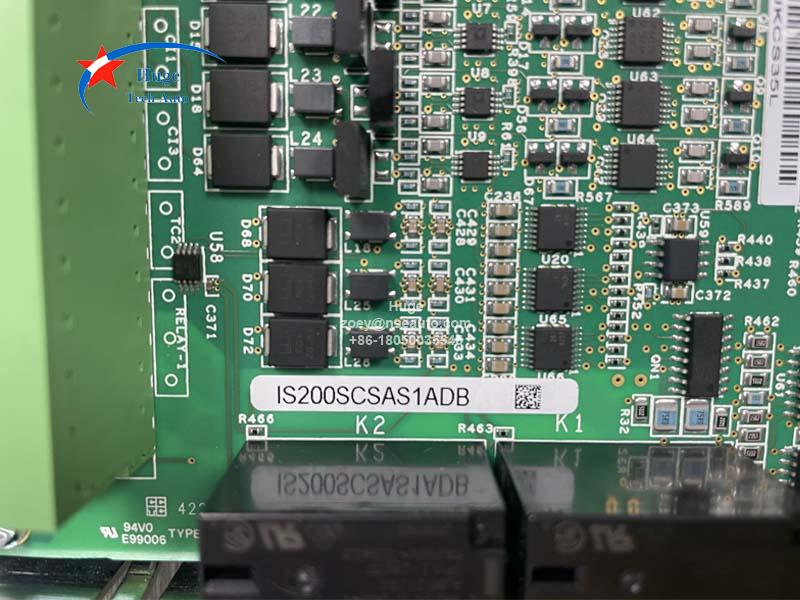

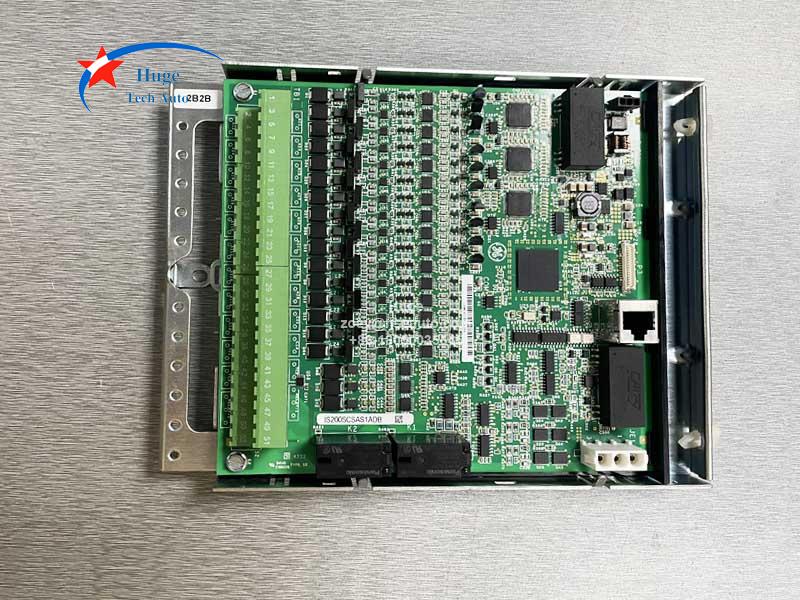

IS200SCSAS1ADB GE I/O Expansion Board
Description:
IS200SCSAS1ADB is designed as GE Mark VIeS control system I/O Expansion Board. It can be used with GE CoreSafetyProtectionI/Opack IS220YSILS1A and IS220YSILS1B.

Electrical Specifications
Power Supply: 24 VDC (system backplane powered)
Signal Isolation: Galvanic isolation between field and control side
Operating Environment: Industrial control environment

Analog Inputs
10 × 4–20 mA AI (with on-board transmitter power)
6 × 4–20 mA AI (externally powered)
3 × Thermocouple Inputs (with cold-junction compensation)

Discrete I/O
3 × Digital Inputs (DI): 24 VDC logic, dry contact compatible
3 × Digital Outputs (DO): 24 VDC rated

Interface & Mechanical
Mounting: Rack-mounted module for Mark VIeS safety cabinet
Application: Safety-related signal processing for industrial / power generation systems

Safety Compliance
Designed for safety function implementation within the Mark VIeS safety platform. Overall SIL compliance depends on system configuration.
