IS230PCAAH1A GE Core Analog I/O Assembly

GE MKVIe IS230PCAAH1A Core Analog I/O Assembly

  • Brand:

    General Electric PLC
  • Item NO.:

    IS230PCAAH1A
  • Order(MOQ):

    1 PC
  • Payment:

    T/T
  • Product Origin:

    USA
  • Shipping Port:

    XIAMEN
  • Lead Time:

    IN STOCK
  • Weight:

    3kg
  • Warranty:

    1 Year
Product Detail

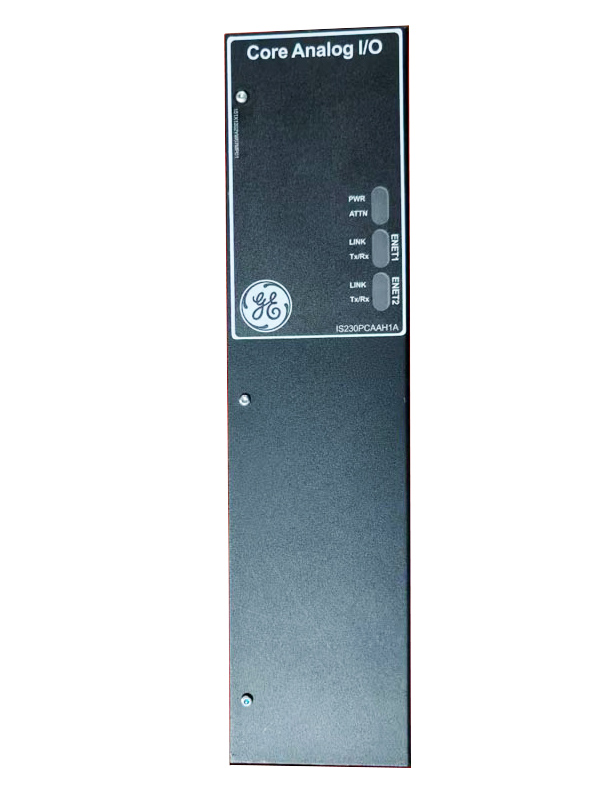

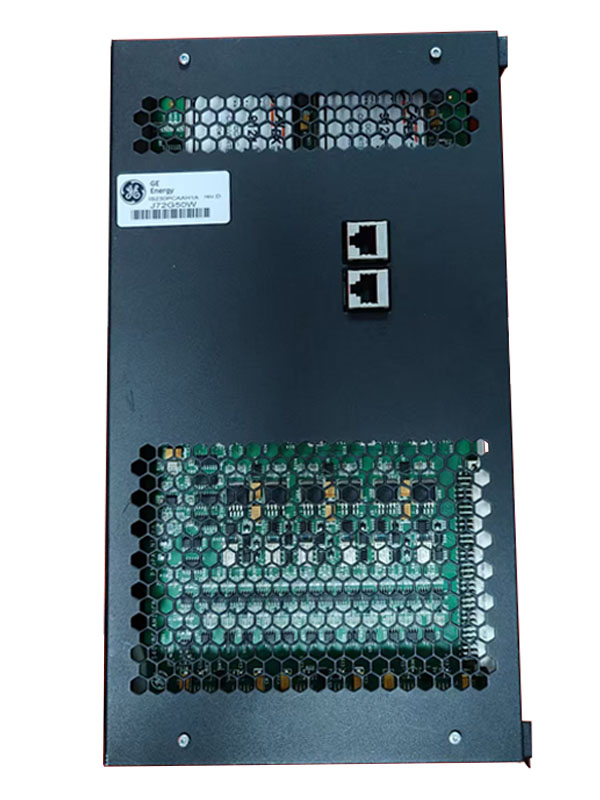

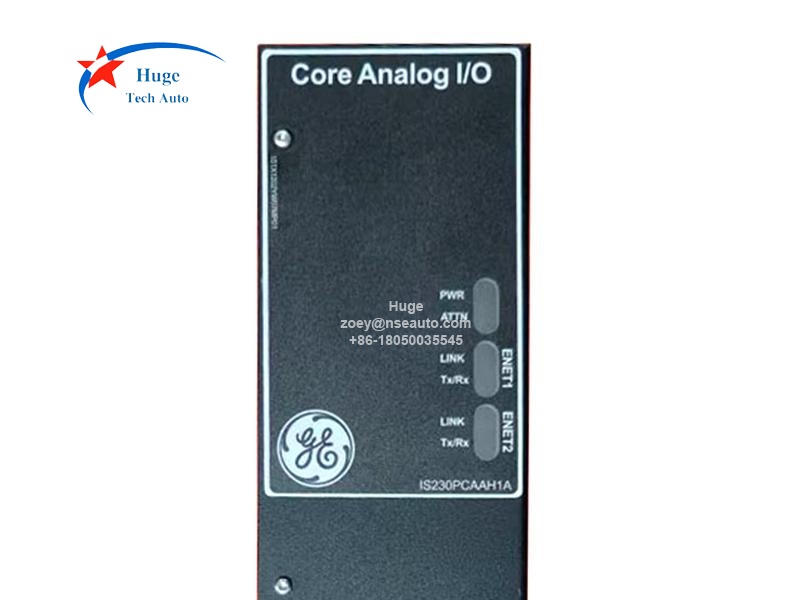

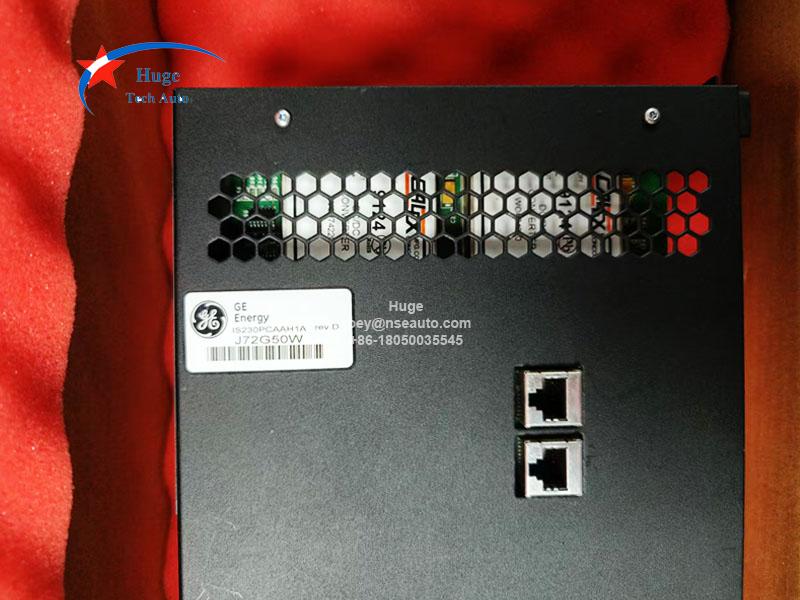

GE IS230PCAAH1A Core Analog I/O Assembly
Description:
IS230PCAAH1A is designed as GE MarK VIe series Core Analog I/O Assembly module. IS230PCAAH1A together with its companion Core Analog (TCAS and TCAT) terminal board, delivers most of the analog signal input/output (I/O) needed to run a gas turbine. Specifically, the IS230PCAAH1A and TCAT handle thermocouple inputs, 4-20 mA current loop I/O, seismic inputs, Linear Variable Differential Transformer (LVDT) excitation and corresponding inputs, pulse rate inputs, and servo coil outputs. IS230PCAAH1A is versatile enough for use in simplex, dual, and TMR (Triple Modular Redundant) systems. A single TCAT terminal board distributes signal inputs to one, two, or three connected IS230PCAAH1A modules. For additional connectivity, the shield ground and 24 V field power terminals located on the adjacent JGPA board complement the terminals integrated into the IS230PCAAH1A and TCAT.

IS230PCAAH1A including a processor board common to all Mark* VIe distributed I/O, two application I/O boards, and a terminal board. The complete module, IS230PCAAH1A, is regarded as the least replaceable unit and there is no support provided to diagnose or replace the individual boards making up the module.

Q&A:
1. How to configurate the IS230PCAAH1A?
IS230PCAAH1A can interface to several different types of 4-20 mA transmitters. Each input has a jumper next to the terminals that is used to determine if the return terminal is grounded or floating. The default position of the jumper is floating or open. The JGPA
board provides twelve 24 V dc terminals, one for each 4-20 mA transmitter input. The last two 4-20 mA inputs on PCAA feature an additional jumper that removes the 250 Ω burden resistor for ±10 V dc input applications. When the jumper is in the MA position, the input behaves the same as the first ten inputs. When the jumper is in the VOLT position the burden resistor is removed and the input acts as a voltage input.

2. What's the number of Inputs and outputs?
Number of Inputs:
25 thermocouple inputs
Ten 4-20 mA inputs
Two 4-20 mA or ±10 V configurable inputs
Two active pulse rate inputs
One servo coil suicide relay input affecting the first two servo outputs
Number of Outputs:
Six servo coil driver outputs
Two 4-20 mA outputs
One ±12 V dc power output
Six LVDT excitation outputs

Related Items:
IS230PCAAH1B
IS230JPDGH1A
IS230SDIIH1A
IS230SRLYH2A
IS230STAOH2A
IS230TDBTH2A
IS230STTCH2A
IS230SNAOH2A
IS230TNPAH2A
IS230SNAIH2A
IS230SNIDH1A
IS230SNSCH2A
IS230TNAIH2C
IS230TNRLH1B
IS230TAISH2C
IS230TCISH6C

IS230TRLSH2B

GE IS230PCAAH1A

GE IS230PCAAH1A

GE IS230PCAAH1A
