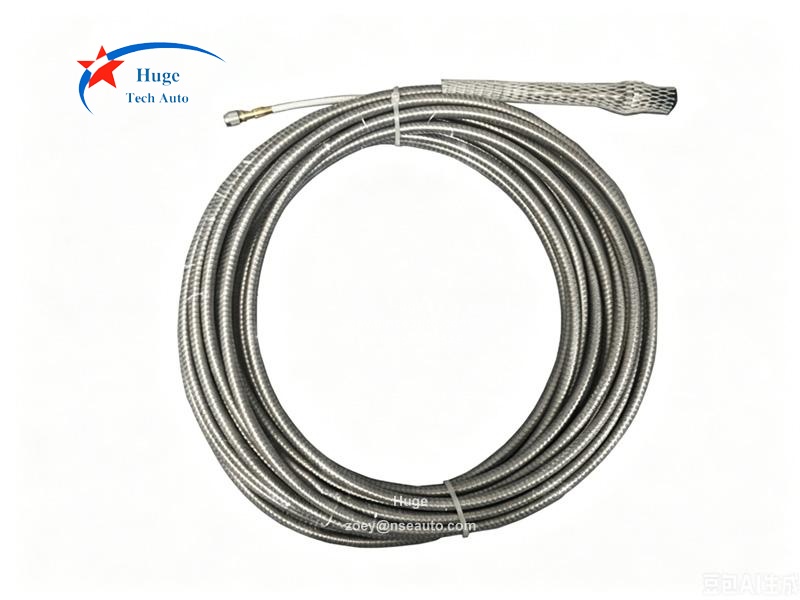

TQ402 111-042-000-013 A3-B6-C050-D000-E100-F1-G100-H10 Non-contact Proximity Transducer
Description:
TQ402 111-042-000-013 is an essential component of the proximity measuring systems. As a transducer, TQ402 use a non-contacting measurement technique based on the eddy current effect to measure the distance between itself and a moving (vibrating) object. Usually, TQ402 is mounted on non-vibrating surfaces. With API 670 compliant, available for high-pressure and watertight applicantions, TQ402 111-042-000-013 widely used in turbines, alternators, turbo-compressors and centrifugal pumps.

TQ402 111-042-000-013 A3-B6-C050-D000-E100-F1-G100-H1 is Explosive EX na, 1/2″-20UNF body thread, 50mm body length, 0 mm unthreaded length, 10 meters integral cable length, with 10m flexible hose and 1 meter system length.

Major Features:
▪ Conforms to API 670 recommendations
▪ Eddy current transducers for contactless measurements
▪ Can be worked in high presure, water enviornment and potentially explosive atmospheres
▪ Multiple system lengths are available
▪ Temperature range: −40 to +180 °C
▪ Can be powered by associated signal processing modules

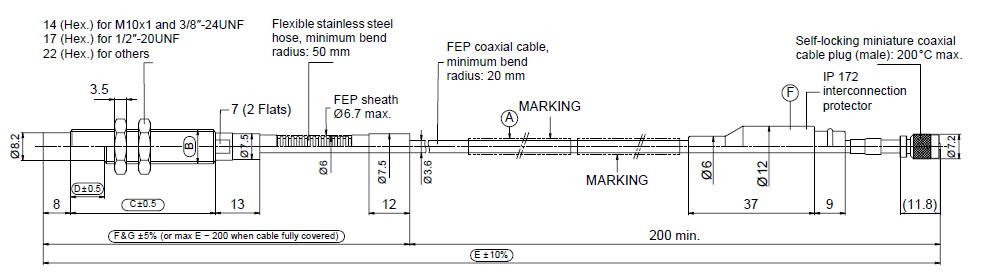

Ordering Information:
TQ 402 111-402-000-013 proximity transducer
111-402-000-013-AA-BB-CCCC-DDDD-EEEE-FF-GGGG-HHH
AA: Environment
BB: Body thread
CCCC: Body length
DDDD: Unthreaded length
EEEE: Integral cable length
FF: Optional protection
GGGG: Flexible hose length
HH: Total system length


Q&A:
1. What factors will influence the measurement of TQ402 111-042-000-013?
Many factors may influence the characteristics of TQ402:
(1) The target material used
(2) The operating temperature range
(3) Mechanical and electrical imperfections
(4) Violation of certain mounting constraints
2. What's the minimum mounting value for TQ402?

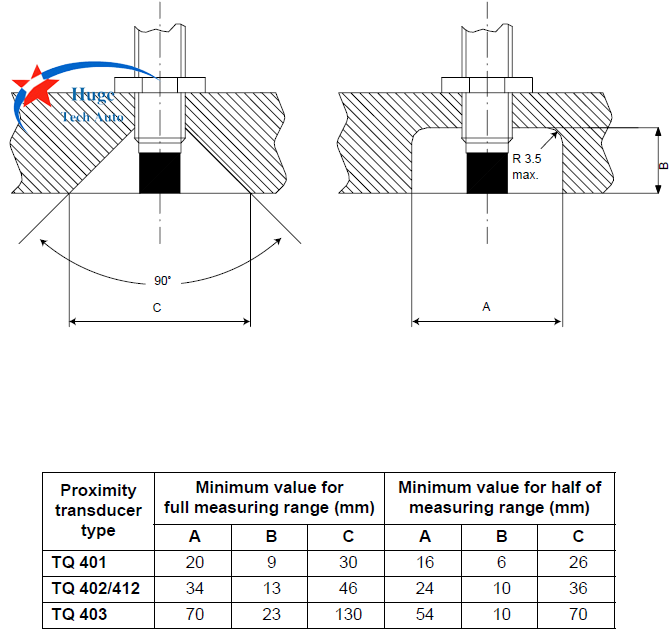

The certain free space must be respect around TQ402 during installation:
For full measuring range operation:
Minimum horizontal clearance (dimension A): 34 mm
Minimum vertical clearance (dimension B): 13 mm
Minimum angular clearance (90° sector, dimension C): 46 mm
For half measuring range operation:
Minimum horizontal clearance (dimension A): 24 mm
Minimum vertical clearance (dimension B): 10 mm
Minimum angular clearance (90° sector, dimension C): 36 mm
For recessed mounting: The corner radius must not exceed R 3.5 mm.
