330186-02 Bently Nevada 3300 XL Shaft Micrometer in metric units

Bently Nevada 3300 XL Shaft Micrometer in metric units 330186-02

Brand:
Bently Nevada TSI
Item NO.:
330186-02
Order(MOQ):
1 PC
Payment:
T/T
Price:
$4000
Product Origin:
USA
Shipping Port:
XIAMEN
Lead Time：
IN STOCK
Weight：
2.8 kg
Warranty:
1 Year

Product Detail

Bently Nevada 3300 XL Shaft Micrometer in metric units 330186-02
Description:

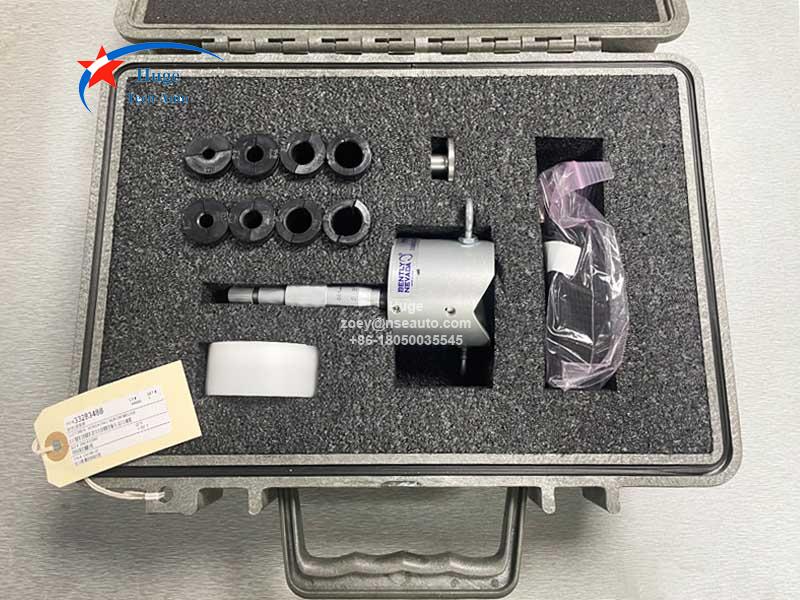

The Bently Nevada 3300 XL Shaft Micrometer, 330186-02, is primarily designed to verify the output signal of a Proximitor Sensor, whether you’re monitoring a rotor shaft or the piston rod of a reciprocating compressor. To use it, first attach a strap to the mounting base, wrap this strap around the target component, and tighten it securely to hold the mounting base in place. From there, a spindle micrometer is used to check the Proximitor Sensor’s output signal—specifically, a probe mounting adapter secures the probe within the mounting base, allowing the micrometer to move the probe toward or away from the target in precise, calibrated increments. A voltmeter is then used to record the output from the Proximitor Sensor.

When using the 3300 XL Shaft Micrometer to generate an output curve for programming a Rod Drop Monitor on a reciprocating compressor, it’s important to use the buffered output signal on the front of the Rod Drop Monitor rather than the direct output signal from the Proximitor Sensor. Specifically, the 330186-02 probe mounting adapter, which secures the probe within the mounting base, plays a key role in this process. This is because the Rod Drop Monitor is programmed by the user based on the signal it receives directly; if intrinsic safety barriers are in use, this monitor-side signal may differ from the signal at the Proximitor Sensor itself.

Additionally, 330186-02 comes equipped with a target holding base and a calibrated 4140 target button. These components are used to verify that your Proximitor Transducer System is functioning correctly.

Specifications：

3300 XL Shaft Micrometer
Part number	Resolution	Accuracy	Range
330186-01	0.001 in	+0.0001 in	0-1 in
300186-02	0.01 mm	±0.003 mm	0-25 mm

Dimensions: 152x246x356 mm

Ordering number:
330186-AA
A: Scale Units
01 Micrometer in English units (0-1 in)
02 Micrometer in metric units (0-25 mm) Note: The 3300 shaft micrometer and precision micrometer come with probe mounting adapters for 14 inch, 3/8 inch, Vi inch, 5/8 inch, M8, M10, M14 and M16 probe thread sizes.

Q&A：
1. What's the difference between 330186-02 and 330186-01?

330186-02 and 330186-01 both are the Bently Nevada Shaft Micrometer, 330186-02 is Micrometer in metric units, 330186-01 is in English units.

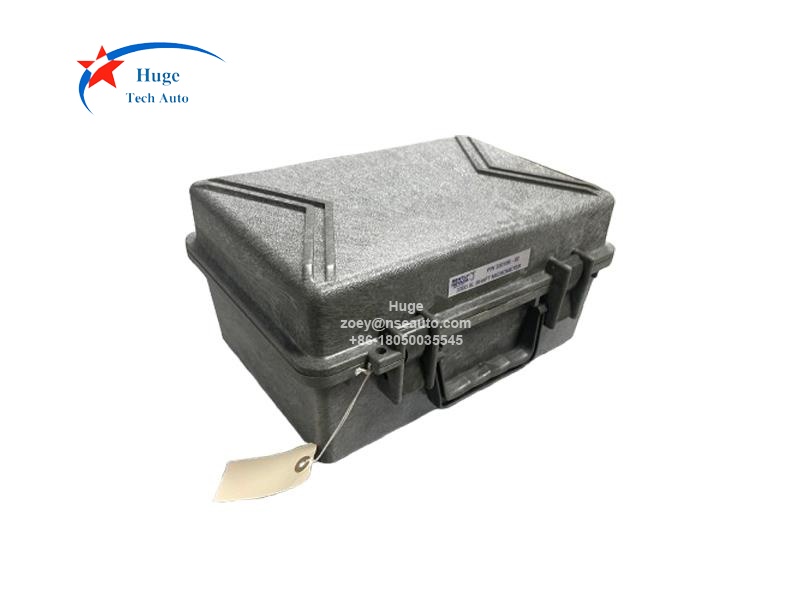

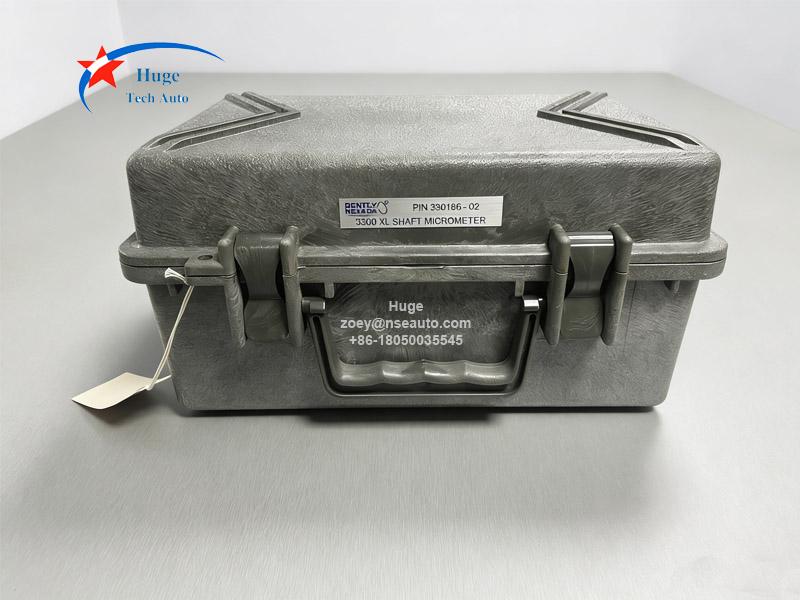

2. What's the casing material of the 330186-02?
ABS Plastic.
