CA901 144-901-000-252 Piezoelectric Accelerometer with 5 meters cable

Piezoelectric Accelerometer with 5 meters cable CA901 144-901-000-252

Brand:
Ungrouped
Item NO.:
CA901 144-901-000-252
Order(MOQ):
1 PC
Payment:
T/T
Product Origin:
Switzerland
Shipping Port:
XIAMEN
Lead Time：
IN STOCK
Warranty:
1 Year

Product Detail

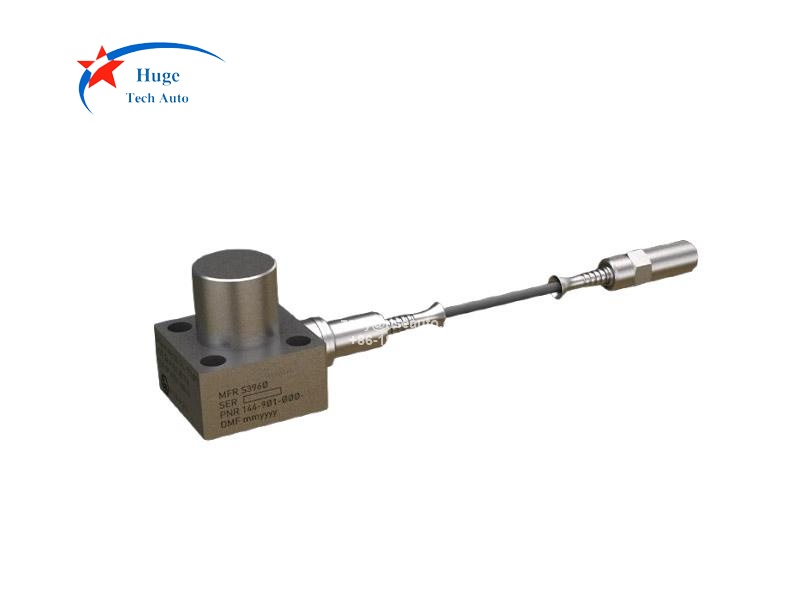

CA901 144-901-000-252 Piezoelectric Accelerometer with 5 meters cable
Description:
CA901 144-901-000-252 is designed for the long term monitoring or development testing. CA901 can be used in the Heavy duty gas turbines industry. Be famous with the extreme temperature capability, CA901 144-901-000-252 is from cryogenic (-196°C) up to extreme (700°C), which is the widest range piezoelectric Accelerometer in CA series.

CA901 144-901-000-252 works with IPC704/IPC707 signal conditioner, that convert the low-level charge signal (pC/g) output by a CA901 sensor into a current or voltage signal suitable for transmission to the monitoring system.

Physical characteristics:
▪ VC2 type single crystal material
▪ Integral case insulation
▪ Integral mineral insulated cable
▪ Lemo or a high-temperature connector

Meaurement chains:
The Meaurement chains including piezoelectric accelerometer CA901, extension cable EC119 or EC222, Signal conditioner IPC704/IPC707, with transmission cable and galvanic separation unit GSI127.

Application:
Heavy duty gas turbines.

Features:
▪ Wide temperature range: −196 to 700 °C
▪ Avaliable in standard version and in EX version
▪ Qualified by major OEMs for industrial vibration monitoring
▪ Sensitivity: 10 pC/g (200 g)
▪ Frequency response: 3 to 3700 Hz
▪ Certified for use in potentially explosive atmospheres

Ordering Information:
