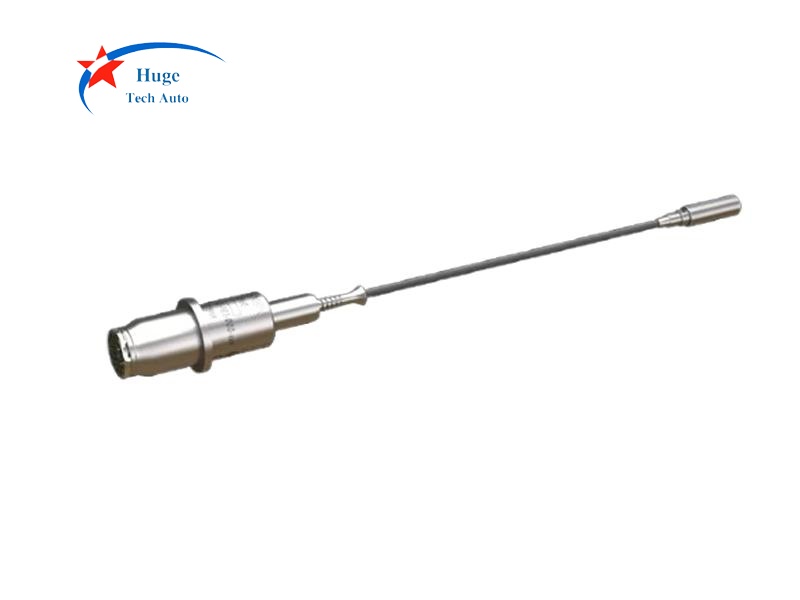

CP103 143-103-000-931 Piezoelectric pressure transducer

Brand:
Ungrouped
Item NO.:
CP103 143-103-000-931
Order(MOQ):
1 PC
Payment:
T/T
Product Origin:
Switzerland
Shipping Port:
XIAMEN
Weight：
120g
Warranty:
1 Year

Product Detail

CP103 143-103-000-931 Piezoelectric pressure transducer
Description:
CP103 143-103-000-931 is applicable for the long-term monitoring or development testing as a Piezoelectric pressure transducer. With the wide temperature range and minimise the sensitivity to acceleration, CP103 143-103-000-931 can function stably in harsh and extreme environments such as gas turbine combustors.

CP103 143-103-000-931 uses a VC2 type crystal element in order to keep the extremely stable instrument. Integral mineral insulated cable with or without protection (overbraid), terminated with a high-temperature or LEMO connector.

With the high sensitive (232 pC/bar) and Dynamic measuring range 20 bar, CP103 143-103-000-931 is a high-quality, high-reliability dynamic pressure sensor. CP103 compatible with the extension cable EC119, EC153 and EC222. Signal condtioner IPC707 convert its charge-based signal into a current or a voltage signal.

Features:
▪ Available in EX versions certified internationally for use in hazardous areas
▪ Extreme temperature capability -196°C to +650°C
▪ High-pressure capability up to 250 bar
▪ High sensitivity: 232 pC/bar
▪ Frequency response: 2 to 10 000 Hz

Specifications:
At +23 °C ± 5 °C
Sensitivity (at 2 Hz): 232 pC / bar (16 pC / psi) ± 5% typical
Dynamic measuring range: 0.000 04 to 20 bar nominal
Overload capacity (spikes): Up to 250 bar
Linearity: ± 1% over dynamic measuring range
Acceleration sensitivity: ≤ 0.05 pC / g (≤ 0.000 21 bar / g)
Resonant frequency: > 50 kHz
Frequency response: 2 to 10 000 Hz ± 5% (the lower cut-off frequency is determined by the electronics used)
Internal insulation resistance: Min. 109 Ω.
107 Ω at 300 °C
Capacitance (nominal)
Pole to pole: 135 pF for transducer + 200 pF/ m of cable
Pole to casing: 18 pF for transducer + 300 pF/ m of cable

Ordering Information:
CP103 143-103-000D502
CP103 143-103-000D602
CP103 143-103-000D702
CP103 143-103-000D901
