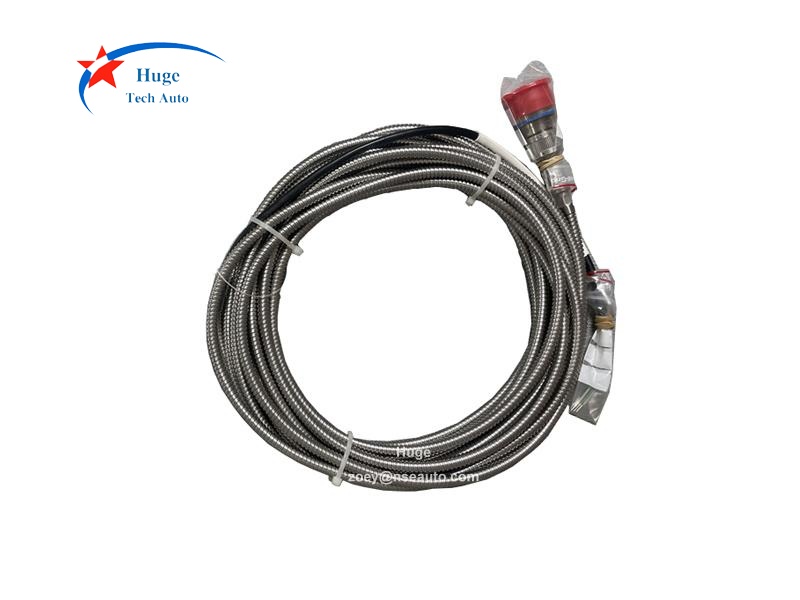

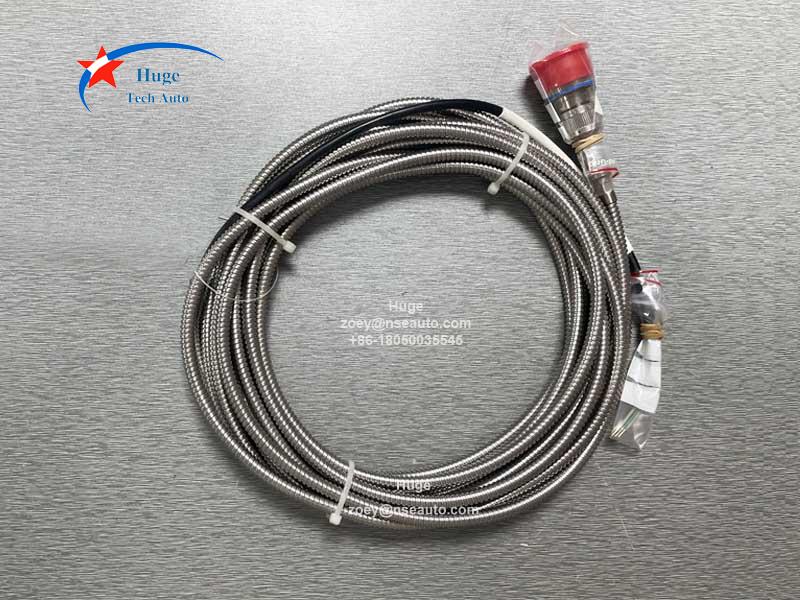

EC318 922-318-000-403 Cable Assemblies
Description:
EC318 922-318-000-403 is designed as a high-quality, high-reliability cable assembly to meet the hazardous locations of the industrial vibration monitoring. It compatible with the piezoelectric accelerometer CE687, piezoelectric velocity sensor PV660.

EC318 922-318-000-403 is a standard RADOX®125 (halogen free) 2-wire cable assembly with a separate shield wire. Some EC318 cable assemblies have a flexible stainless-steel protection tube in order to provide additional mechanical protection. EC318 922-318-000-403 cable totally length 7000mm.

Key Features & Design Advantages:
▪  Proven Compatibility: Fully optimized for use with CE110I, CE680M511, CE680M611, and PV102 vibration measurement systems, eliminating compatibility risks and ensuring accurate data acquisition.
▪  Robust Construction: Built with K219 cable featuring premium RADOX® insulation, offering exceptional resistance to abrasion, temperature variations, and common industrial chemicals for extended service life.
▪  EMI-Resistant Design: 2-wire configuration with integrated shielding
▪  Flexible Termination: eatures an MS3456L-type threaded connector on the sensor end and open flying leads on the opposite end, enabling quick, adaptable installation across a wide range of monitoring equipment and system setups.
