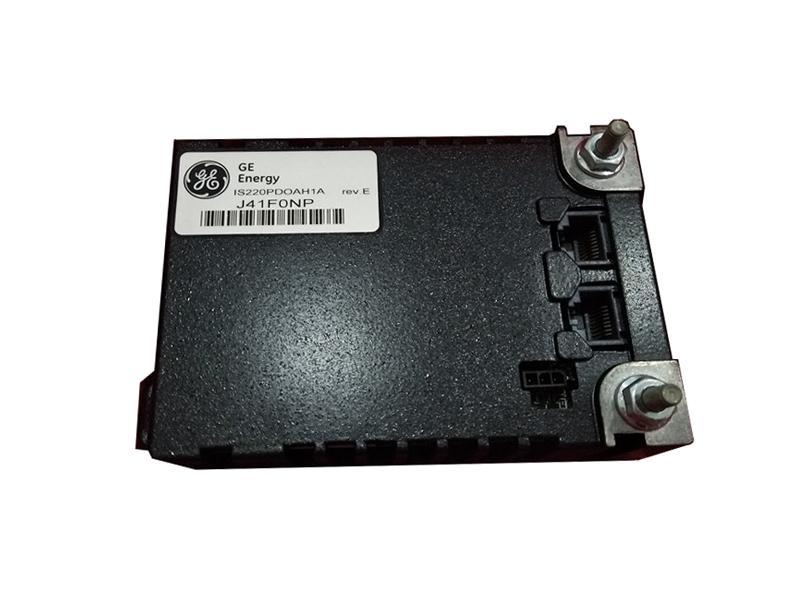

GENERAL ELECTRIC IS220PDOAH1A
Description：

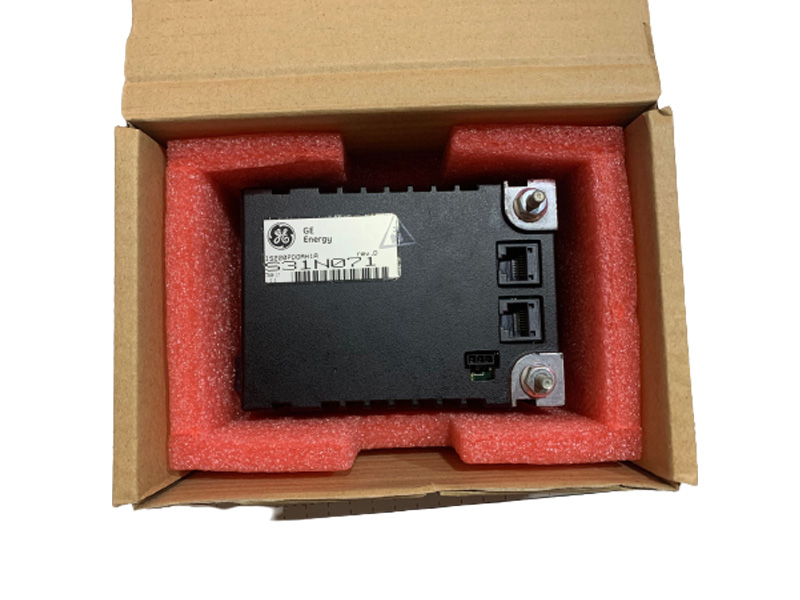

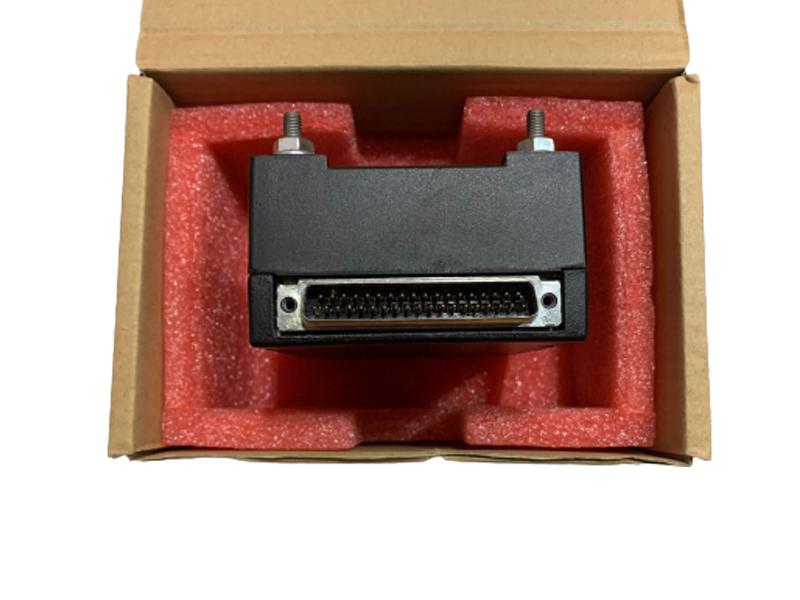

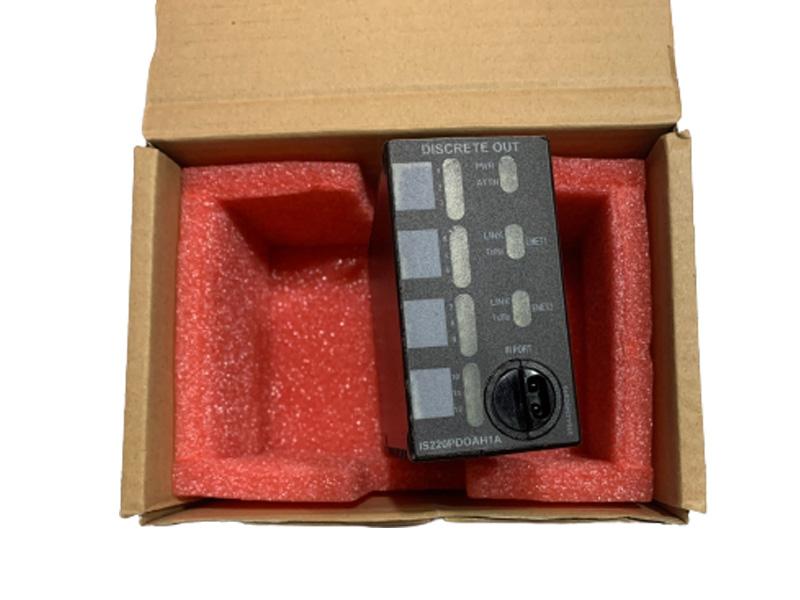

IS220PDOAH1A is designed as one of GE Mark VI IS200 series module. As a discrete output module, it not only can control up to 12 relays, but also can feedback the signals from other boards.The Discrete Output (PDOA) pack provides the electrical interface between oneor two I/O Ethernet networks and a discrete output terminal board. The packcontains a processor board common to all Mark* Vle distributed I/O packs andan acquisition board specific to the discrete output function. The pack is capableof controlling up to 12 relays and accepts terminal board specific feedbackElectromagnetic relays (with types TRLYH1B, C, D, and F terminal boards) andsolid-state relays (with type TRLYHE boards) are available. Input to the packis through dual RJ45 Ethernet connectors and a three-pin power input. Output isthrough a DC-37 pin connector that connects directly with the associated terminalboard connector. Visual diagnostics are provided through indicator LEDs.
