GE IS200DAMEG1A Gate Drive Amplifier/lnterface Board IS200DAMEG1ABA
Description:

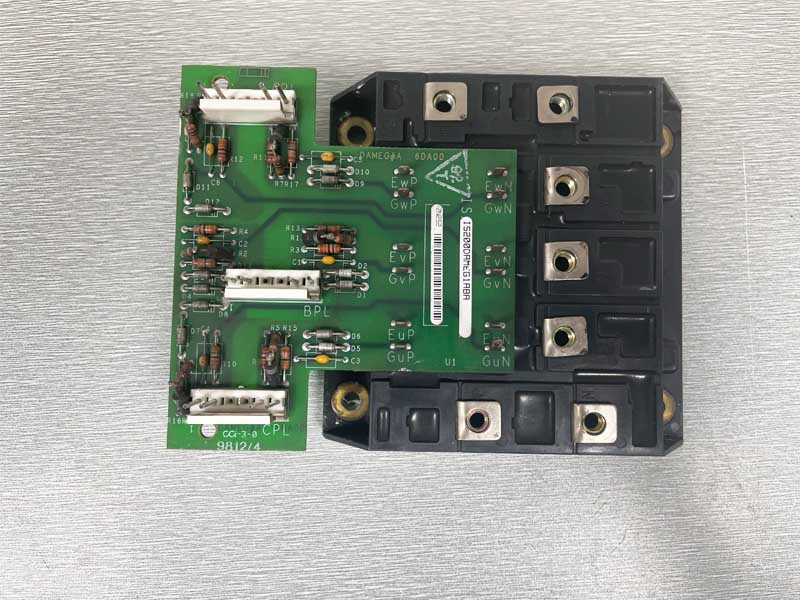

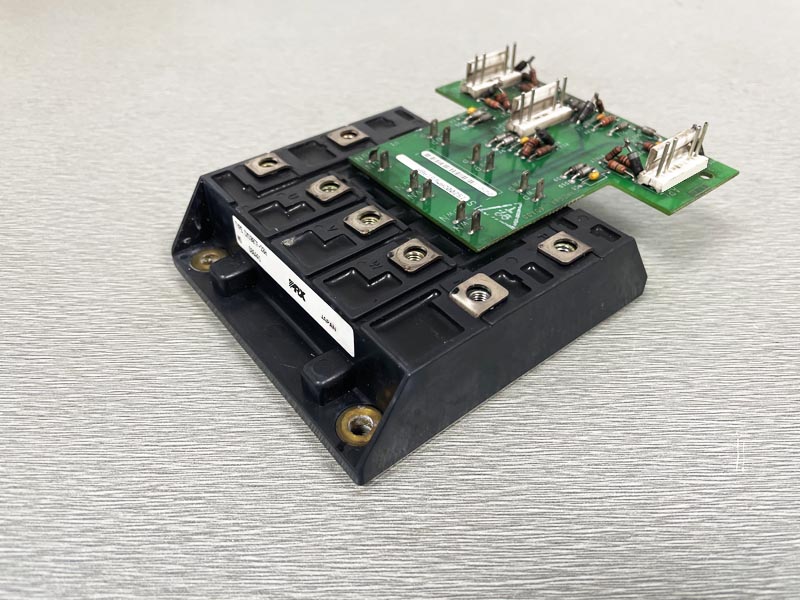

IS200DAMEG1A is GE Innovation Series 200DAM Gate Drive Amplifier and Interface boards.

IS200DAMEG1A provide an an interface between the control rack and the power switchingdevices (IGBTs) of an Innovation Series low voltage drive. It includes LEDs thatindicate the IGBT on/off status.
IS200DAMEG1A drive power rating is 65 frame. It amplify current to provide the final stage ofgate drive for one phase leg of the drive's power bridge. IS200DAMEG1A receives a +15/-7 5power supply input. It also provides an interface without amplification.  IS200DAMEG1A has no power input.

IS200DAMEG1ABA contains three connectors (one per phase) for I/O with the BPIAboard: APL for phase A, BPL for phase B, and CPL for phase C.
