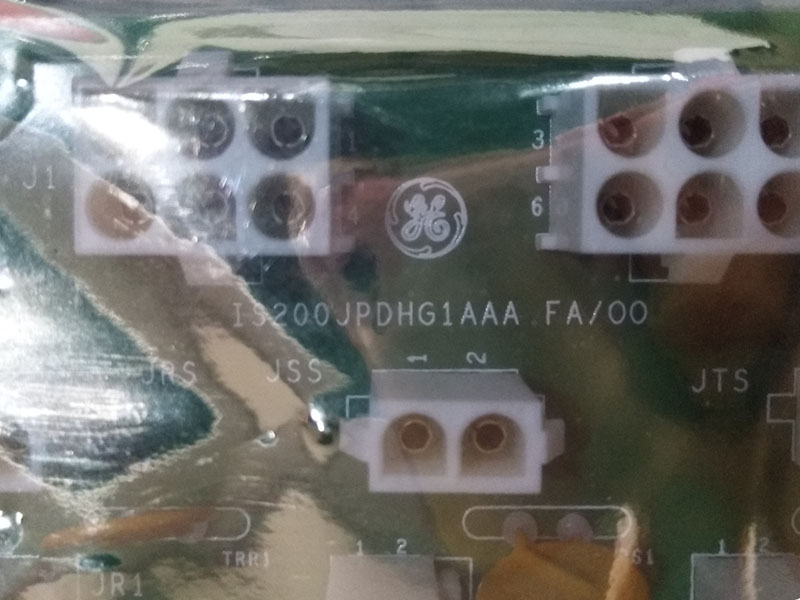

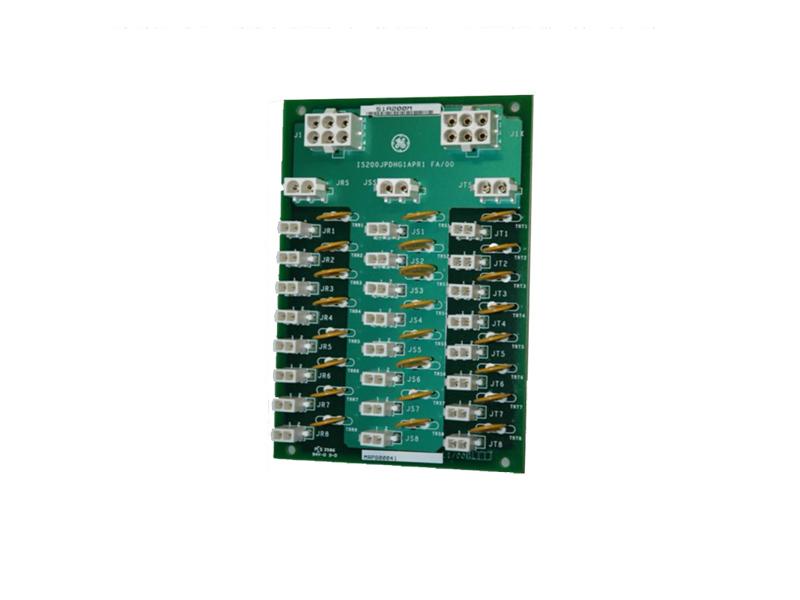

GE IS200JPDHG1A High Density Power Distribution Board
Description:
IS200JPDHG1A is GE Mark Vie series High Density Power Distribution board. IS200JPDHG1A provides 28 V dc power to 24 Mark VIe I/O modules and three Ethernet switches from a 28 V dc supply. Additional JPDHs can be connected in a daisy-chain arrangement to provide power to more I/O modules as required. The circuit for each I/O module connector is protected with a positive temperature coefficient fuse.

IS200JPDHG1A is designed to provide TMR I/O packs with adequate 28 V dc power distribution while taking up as little space as possible. Additional JPDHs can be connected in a daisy-chain arrangement through the unfused J1X connector.

Q&A:
1. How to install IS200JPDHG1A?
Mount IS200JPDHG1A on a vertical surface by inserting #6 machine screws through the mounting holes at each corner of the board. Insert Mate-N-Lok connectors as described in the following figure. The 6-pin and larger 2-pin connectors have a nominal rating of 600 V and 13 A, while the smaller two-pin connectors have a nominal rating of 600 V and limited by fuse rating to 0.8 A max.
2. What's the Specifications of IS200JPDHG1A?
Inputs: One 6-pin connection for 28 V dc power input Mate-N-Lok 600 V, 13A
Outputs: Three 2-pin connections for Ethernet switches Mate-N-Lok 600 V, 13 A
              Twenty-four 2-pin connections for I/O packs Mate-N-Lok 600 V, 0.8 A at 70 °C
Output Fuses: 1.6 A at 20 °C (derated to 0.8 A at 70 °C) positive temperature coefficient fuse or equivalent on each I/O pack output
Ambient Rating for Enclosure Design: -40 to 70°C (-40 to 158 °F)
Relative Humidity: 5-95% non-condensing
Safety Standards: UL 508A Safety Standard Industrial Control Equipment
                             CSA 22.2 No. 14 Industrial Control Equipment
                             EN 61010-1 Safety of Electrical Equipment, Industrial Machines (Low Voltage                                       Directive)
Dimensions: 15.875 cm high x10. 795 cm wide
Mounting: DIN-Rail, card carrier mounting, Base mounted steel bracket, 4 holes
