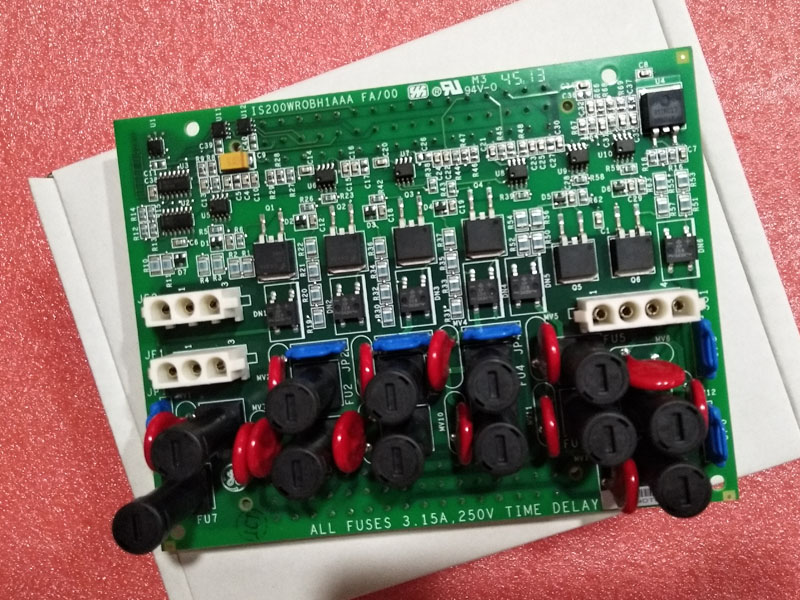

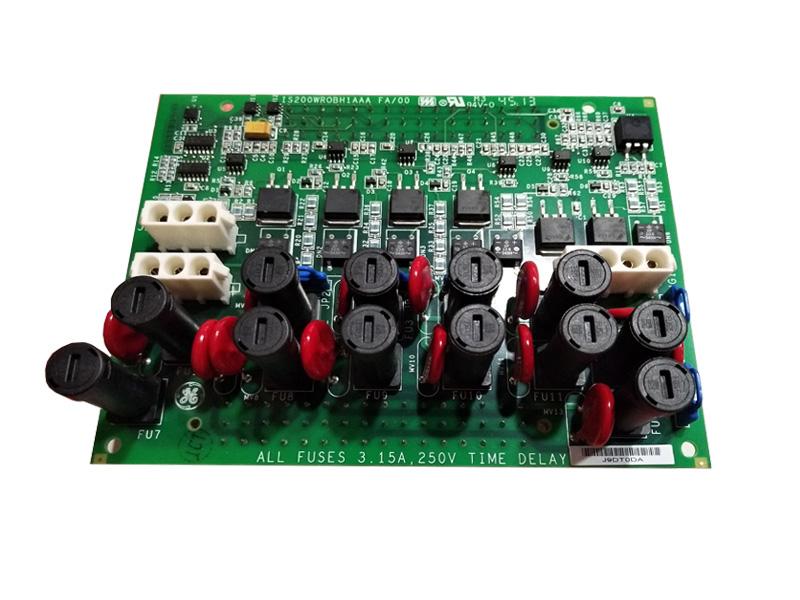

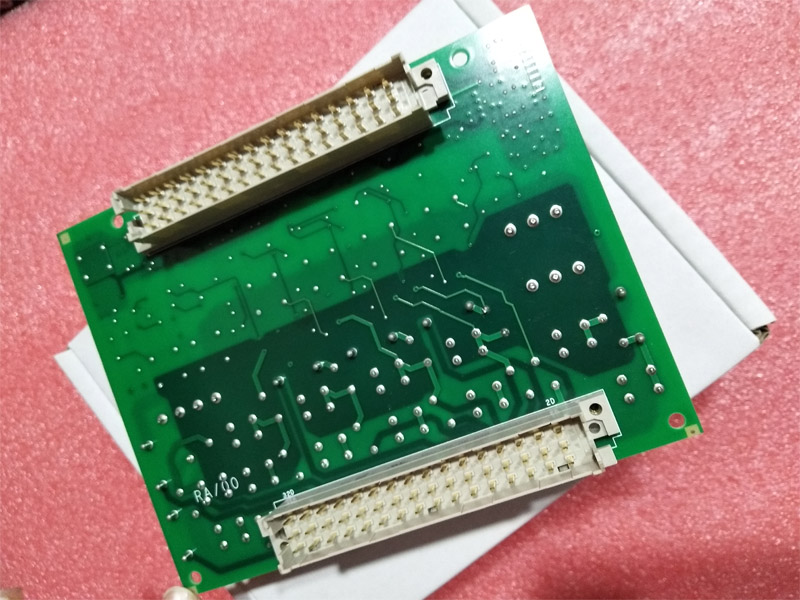

GE IS200WROBH1AAA WROB RELAY FUSE AND POWER SENSING BOARD
Description：
As GE Mark Vie series module, IS200WROBH1AAA is a relay fuse and power sensing board.
In the Mark* Vle systems, the pDIO I/O pack works with the TDBS. The I/Opack plugs into the D-type connector and communicates with the controllerover Ethernet. A single connection point for PDIO is provided with one or twonetwork connections possible from PDIO to the controllers. IS200WROBH1A turns the relay portion of TDBS into the functional equivalent ofIS200TRLYH1B. This option provides fused and sensed power distribution to thefirst six relay outputs and dedicated power to the last relay output.
Option board IS200WROBH1A adds capability to TDBS to vield a combination thathas the same relay circuit functionality as an IS200TRLYH1B terminal board whenused simplex. Included are fused sensed power distribution to the first six relaysand dedicated power to the last relay. Electrically IS200TDBS plus IS200WROBH1has the following circuit. IS200WROBH1 has default fuse values of 3.15 A.Connector JW2 and its connections to JA1 are omitted for clarity
