Brand:
UngroupedItem NO.:
TQ402 111-402-000-012Order(MOQ):
1 PCPayment:
T/TProduct Origin:
SwitzerlandShipping Port:
XIAMENLead Time：
IN STOCKWeight：
0.09kgWarranty:

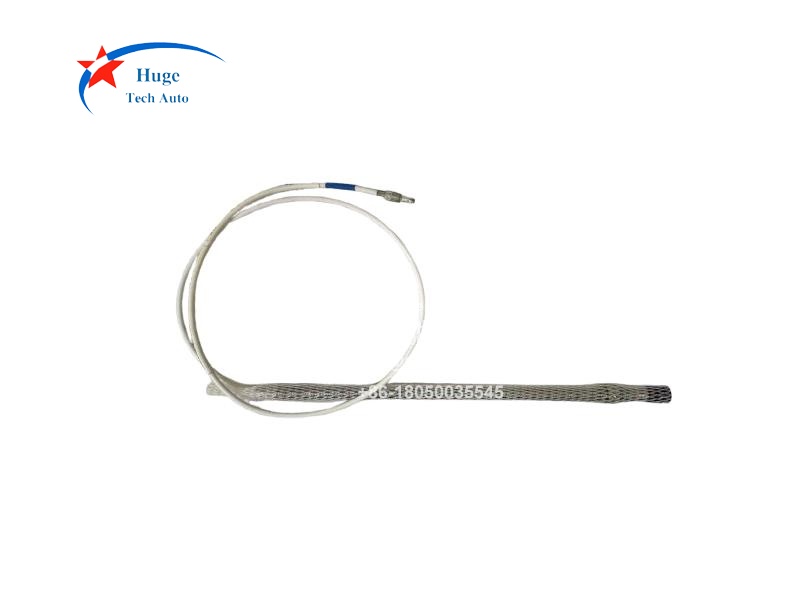

1 YearTQ402 is designed as the proximity measuring systems Proximity Transducer. TQ402 111-402-000-012 is a non-contacting measurement based on the eddy current effect to measure the distance between a moving (vibrating) object and a proximity transducer. TQ402 111-402-000-012 is generally mounted on non-vibrating surfaces.

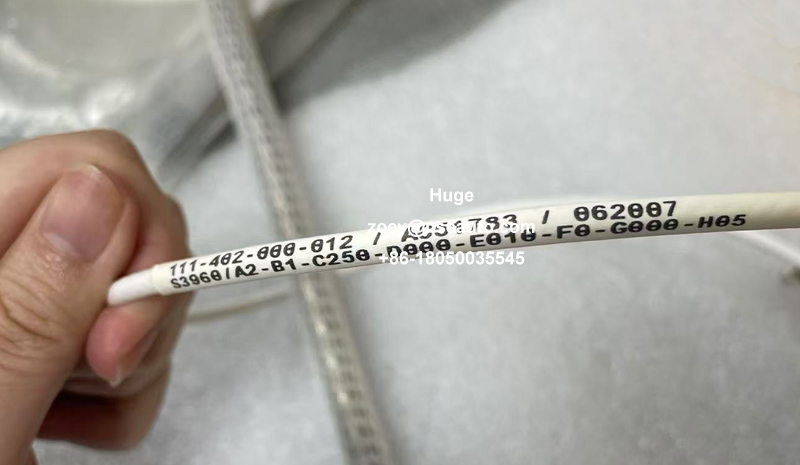

TQ402 111-402-000-012-A2-B1-C250-D000-E010-F0-G000-H05 is Explosive version, M10x1 body thread, 250mm body length, intergral cablel length 1 meter, none cable protection, noe flexible protection tube and the total system length is 5 meters.
A2 Explosive version TQ402 can be used in potentially explosive atmospheres, it is intrinsically safe.
The tip of the TQ402 111-402-000-012 contains a coil, forming part of an oscillating circuit. When this is excited by a high frequency signal provided by the IQS 45x signal conditioner, a magnetic field is emitted by the coil. If an electrically conducting material is moved into this field, the characteristics of the magnetic circuit change. This causes the amplitude of the high-frequency signal present in the coil to vary. The amplitude is proportional to the distance between the tip of the transducer and the target.
