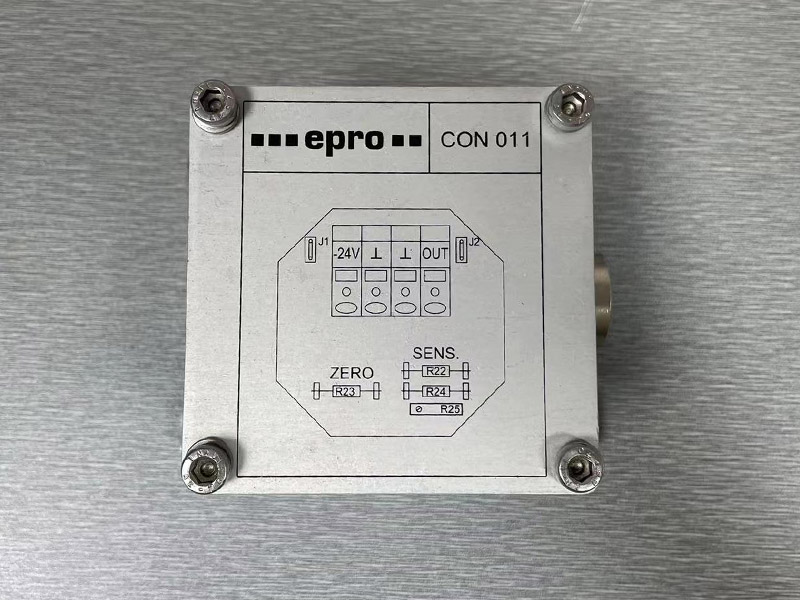

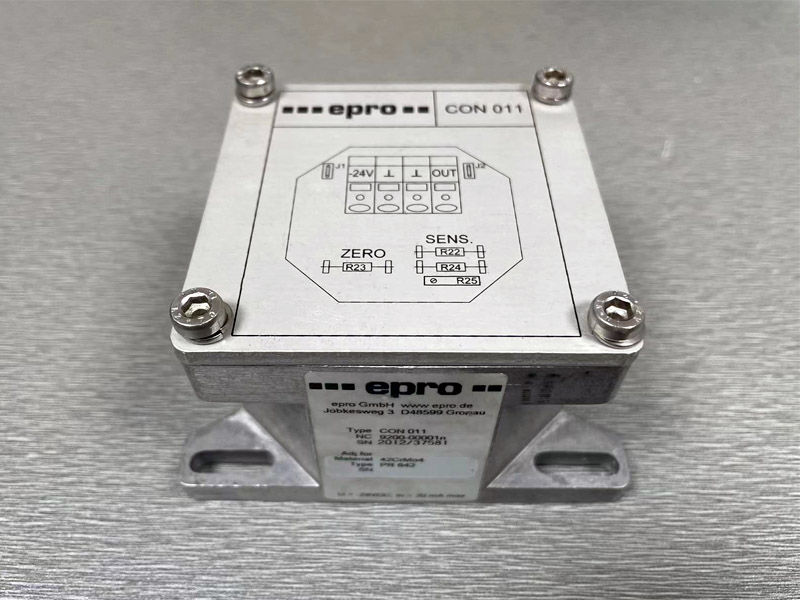

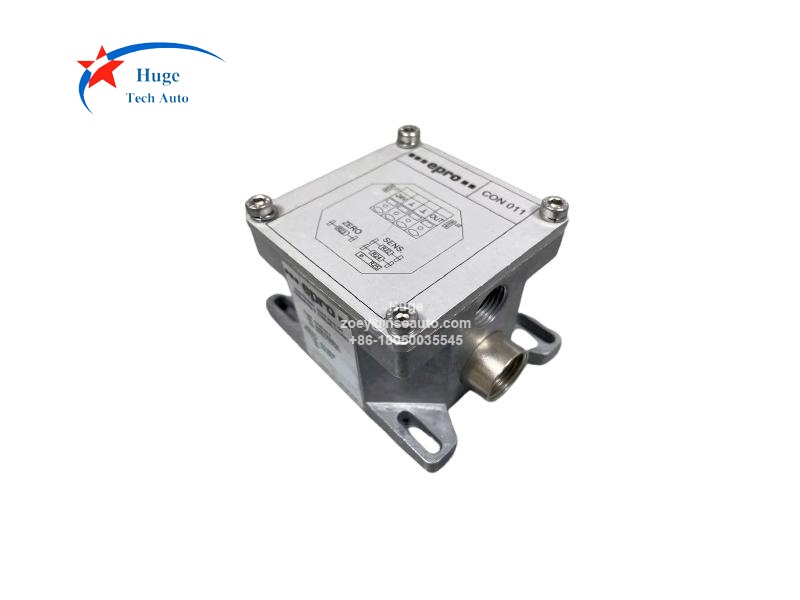

Emerson Epro CON011 Eddy Current Signal Converter
Description:
CON011 Sensor Signal Converter designed for critical turbo machinery applications such as steam, gas and hydro turbines, compressors, pumps and fans to measure radial and axial shaft displacement, position, eccentricity and speed/key.
Dynamic Performance
Frequency Range (-3 dB): 0 to 20000 Hz:
Rise Time: <15 µs
Input Sensor Types: PR6422, PR6423,PR 6424, PR6425, PR6426
Extended Measuring Range: For Extended Range Use CON011/91x-xxx
NOTE: PR6425 requires extended range converter
Environmental
Operating Temperature Range: -30 to 100°C (-22 to 212°F)
Shock and Vibration: 5g @ 60 Hz @ 25°C (77°F)
Protection Class: IP65
Power & Electrical
Supply Voltage Range: -23V to -32V (Output Range - 4V to -20V); -21V to -32V (Output Range - 2V to -18V)
Physical
Housing Material: GD-ALSi9Cu3
Weight: ~600 grams (21.16 oz)
Mounting: 4 Screws M5x20 (Included in Delivery)
Connections: Transducer: Self-Locking Lemo-Plug
Supply/Output: Spring Type (Max. 1.5Mm2)
