EPRO PR9268/602-000 Electrodynamic Horizontal Sensors
Description:
Mechanical velocity sensor for absolute vibration measurement of critical turbomachinery  applications such as steam, gas and hydro turbines, compressors, pumps and fans to measure case vibration.

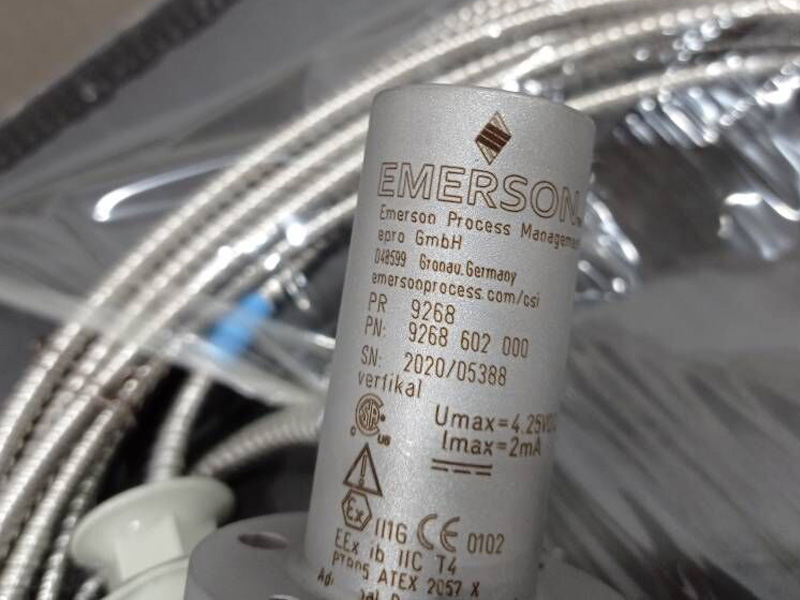

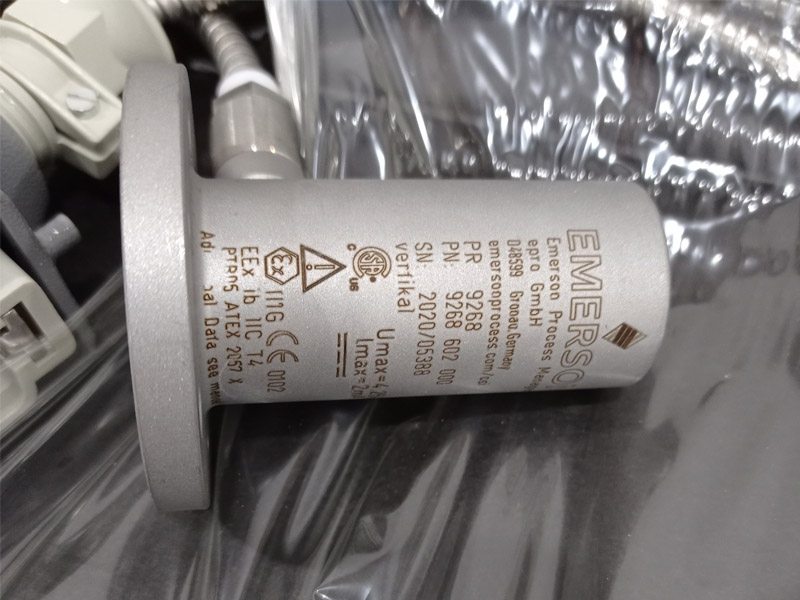

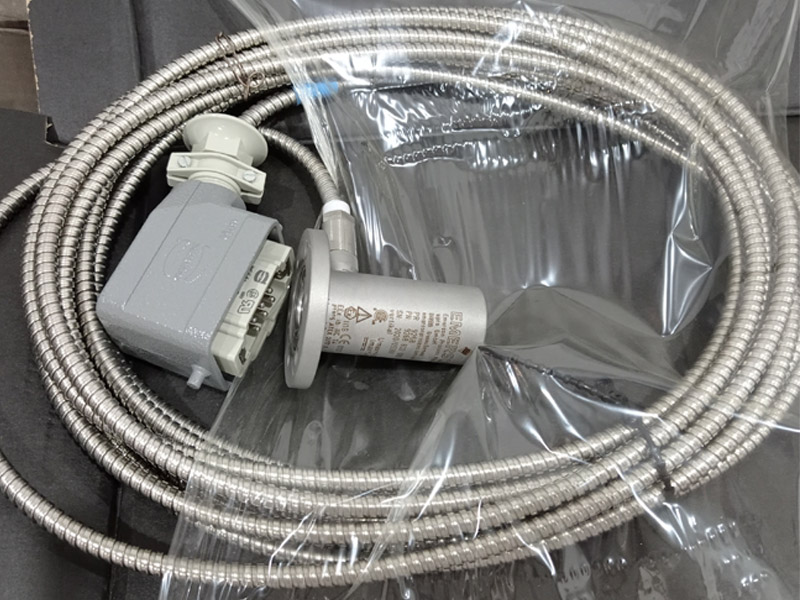

EPRO PR9268/602-000 is Electrodynamic Horizontal Sensors with Armored 8 meters cable, Harting Plug cable end.
Dynamic Performance：
Sensitivity： 22.0 mV/mm/s ± 5% @ Pin 3, 100Ω load
16.7 mV/mm/s ± 5% @ Pin 1, 50Ω load
16.7 mV/mm/s ± 5% @ Pin 4, 20Ω load
Frequency Range： 10 to 1000Hz
Natural Frequency： 8Hz ± 1.5Hz @ 20°C (68°F)
Transverse Sensitivity： 0.10 @ 80Hz
Vibration Amplitude(mechanical Limit)：± 1500μm (± 2000μm)
Amplitude Linearity： < 2%
Maximum Acceleration： 10g (98.1 m/s2) continuous,
20g (196.2 m/s2) intermittent
Maximum Transverse Acceleration： 2g (19.62 m/s2 )
Damping Factor： ~0.7 @ 20°C (68°F)
~0.5 @ 200°C (392°F)
Resistance： 3270Ω ± 10% @ Pin 3
3770Ω ± 10% @ Pin 1
Inductance： ≤ 160 mH
Active Capacity： Insignificant
