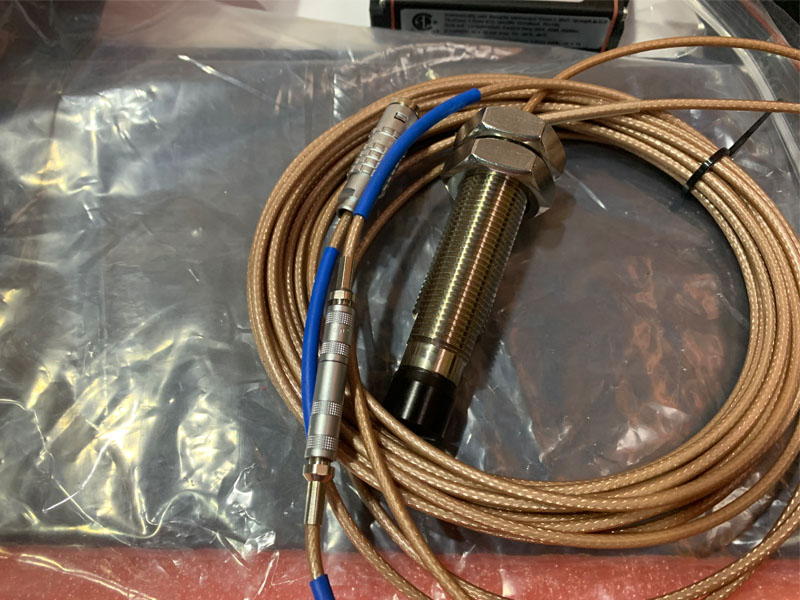

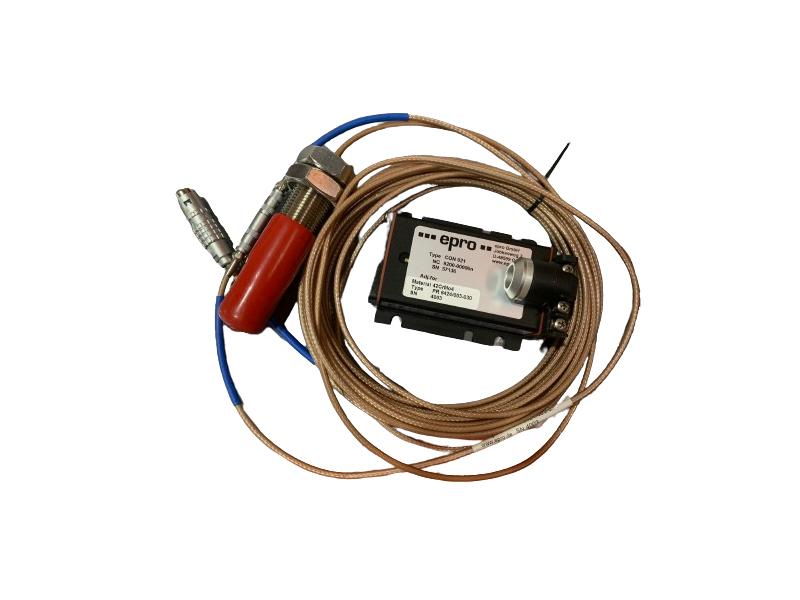

Emerson EPRO PR6424/002-030 16mm Eddy Current Sensor

Emerson EPRO PR6424/002-030 16mm Eddy Current Sensor with 8 meters cable without armored

  • Brand:

    EPRO
  • Item NO.:

    PR6424/002-030
  • Order(MOQ):

    1 PC
  • Payment:

    T/T
  • Product Origin:

    USA
  • Shipping Port:

    XIAMEN
  • Lead Time:

    IN STOCK
  • Warranty:

    1 Year
Product Detail

Emerson EPRO PR6424/002-030 16mm Eddy Current Sensor with 8 meters cable without armored
Description:
PR6424/003-030 is one of Emerson 16mm Eddy Current Sensor families. It is M18 x1.5 sleeve thread, without armored cable, 60mm total sensor length, without daptor plug, 8 meters cable length with LEMO cable end. Non-contact sensor designed for critical turbomachinery applications such as steam,gas and hydro turbines, compressors, pumps and fans to measure radial and axial shaft dynamic displacement; position, eccentricity and speed/key.
Dynamic Performance
Sensitivity/Linearity:4 V/mm (101.6 mV/mil) ≤ ±1.5%
Air Gap (Center):Approx. 2.7 mm (0.11”) Nominal
Long Term Drift:< 0.3%
Range: Static ±2.0 mm (0.079”)
Dynamic 0 to 1,000μm (0 to 0.039”)
Target
Target/Surface Material:Ferromagnetic Steel (42 Cr Mo4 Standard)
Maximum Surface Speed: 2,500 m/s (98,425 ips)
Shaft Diameter: ≥80mm
Environmental:
Operating Temperature Range: -35 to 150°C (-31 to 302°F)
Temperature Error: <4%/100°K(API 670 Compliant)
Pressure Resistance to Sensor Head:  10,000 hPa (145 psi)
Shock and Vibration: 5g @ 60Hz @ 25°C (77°F)
Physical
Material: Sleeve – Stainless Steel, Cable – PTFE
Weight (Sensor & 1M Cable, no Armor) : ~200 grams (7.05 oz)

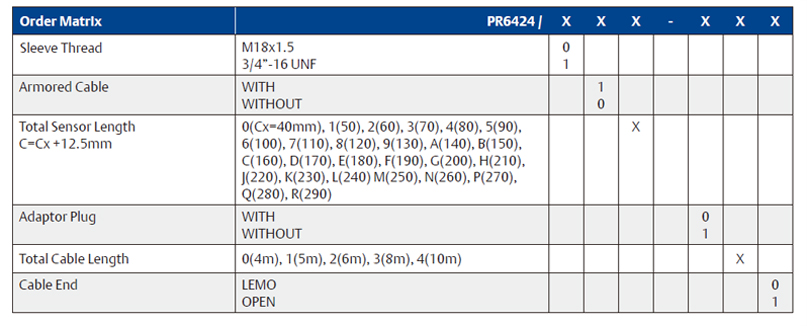

Ordering Information:
