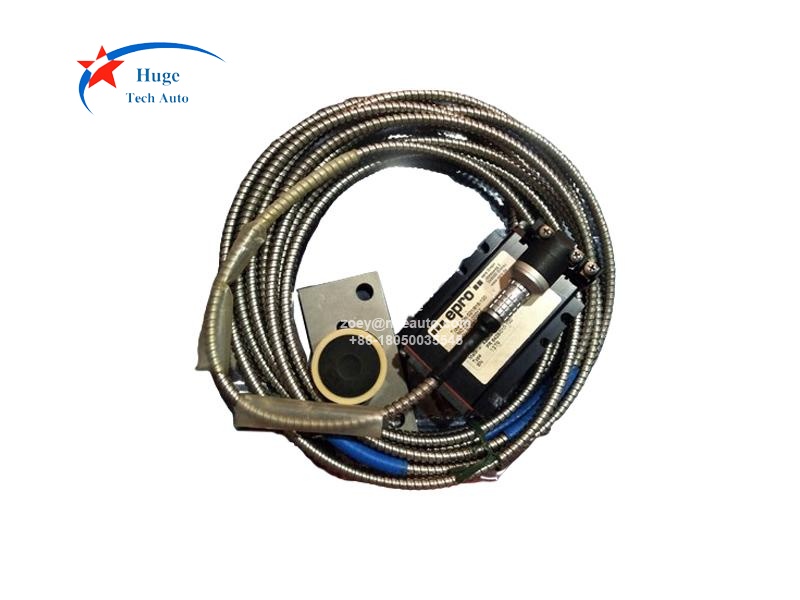

EPRO PR6426/010-140+CON021 Eddy Current Sensor with Eddy Current Signal Converter
Description:
PR6426/010-110 is part of EPRO 32mm Eddy Current Sensor. It is Mounting Plate 80 mm x 40 mm, no thread with armored cable, 10 meters without adaptor plug, LEMO cable end.
Dynamic Performance：
Sensitivity 2 V/mm (50.8 mV/mil) ≤ ±1.5% max
Air Gap (Center) Approx. 5.5 mm (0.22”) Nominal
Long Term Drift < 0.3%
Range Static ±4.0 mm (0.157”)
Target
Target/Surface Material Ferromagnetic Steel
(42 Cr Mo 4 Standard)
Maximum Surface Speed 2,500 m/s (98,425 ips)
Shaft Diameter ≥200 mm (7.87”)
Environmental
Operating Temperature Range -35 to 180°C (-31 to 356°F)
Temperature Excursions <4 Hours 200°C (392°F)
Maximum Cable Temperature 200°C (392°F)
Temperature Error (at +23 to 100°C) -0.3%/100°K Zero Point
<0.15%/10°K Sensitivity
Pressure Resistance To Sensor Head 6,500 hpa (94 psi)
Shock and Vibration 5g (49.05 m/s2
) @ 60Hz @ 25°C (77°F)
Physical
Material Sleeve – Stainless Steel, Cable – PTFE
Weight (Sensor & 1M Cable, no Armor) ~800 grams (28.22 oz)
BENEFITS:
Warranty: 12 months.
Lead time: 1-2 working days.
Terms of payment:T/T and Western Union.
Courier partners: DHL, UPS, TNT, FedEx and EMS.
Technical specification, manuals and data sheets
