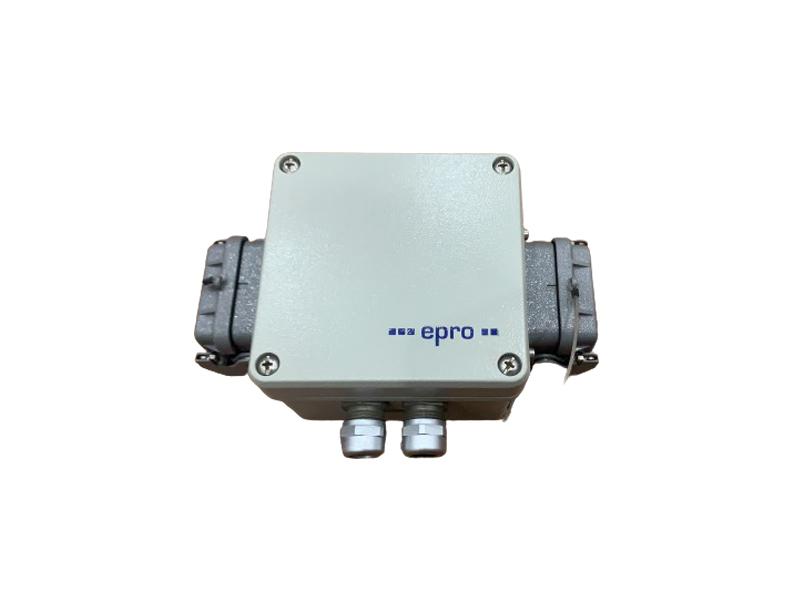

EPRO MMS3210/022-000 Dual Channel Shaft Position Transmitter for Eddy Current Sensors
Description:
The MMS 3210/.. dual channel shaft position transmitter is part of the revised MMS 3000 transmitter system for monitoring and protecting any kind of turbo machines.
The transmitters of the new generation are characterised by their highly flexible hardware options and their versatile combination possibilities and can thus optimally be adapted on the demands of the respective plant.
They permit economic measurement and supervision of relative shaft displacement and shaft position with eddy current sensors.
Application fields of the transmitters are all kind of turbo machines, fans, compressors, gear boxes, pumps and similar, rotational machines.
Due to the bus capability, MMS 3000 transmitters are applicable for big systems with programmable logic controls and host computers as used in power stations, refineries and chemical plants, as well as for small plants with only few measuring points and decentralized data processing.
The inputs of the transmitter may be operated with all standard types of epro eddy current sensors:
PR 6422/.., PR 6423/..,
PR 6424/.., PR 6425/..,
PR 6426/..
Features:

• Highly flexible due to numerous hardware options
• Precisely adaptable to the requirements by versatile combination possibilities
• Integrated signal converters for both channels, also with extended measuring range
• Optional with external converter for operation in explosive areas
• For measurement and processing relative shaft displacement signals
• Inputs for eddy current transducers
• Integrated microcontroller
• Compliant to API 670
• Two redundant 24 V DC supply inputs
• Supervision functions for electronic and sensors
• To be mounted directly at the machine
• 2 Current outputs 0/4...20 mA
• Up to 5 configurable  function outputs
